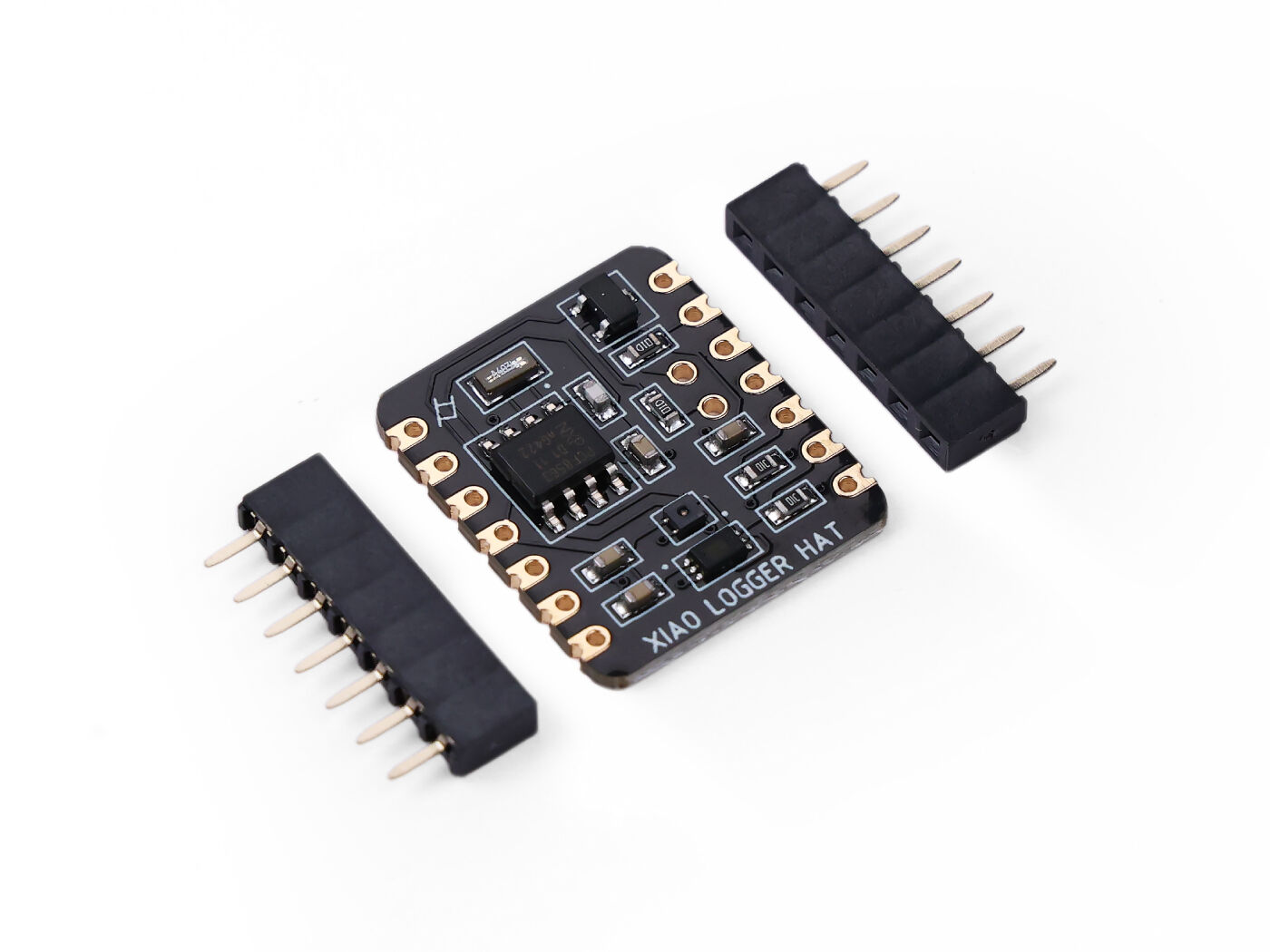

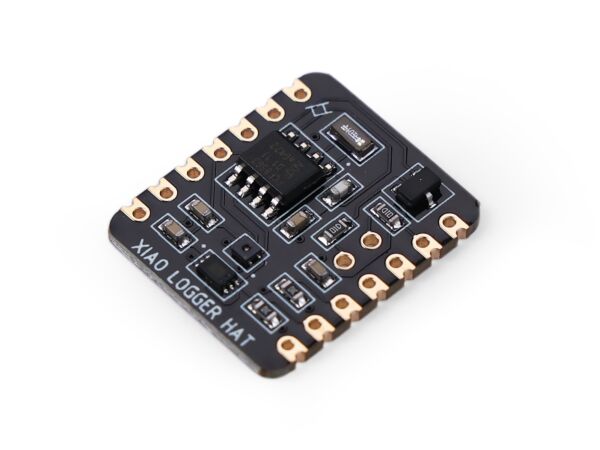

XIAO Logger HAT - Temperature, Humidity, Light and Time in One Tiny Add-On
Building a data logger usually means sourcing multiple breakout boards, writing drivers for each sensor, and figuring out how to keep everything accurate over time. The XIAO Logger HAT collapses all of that into a single, XIAO-sized add-on board that's ready to log from the moment it's connected.

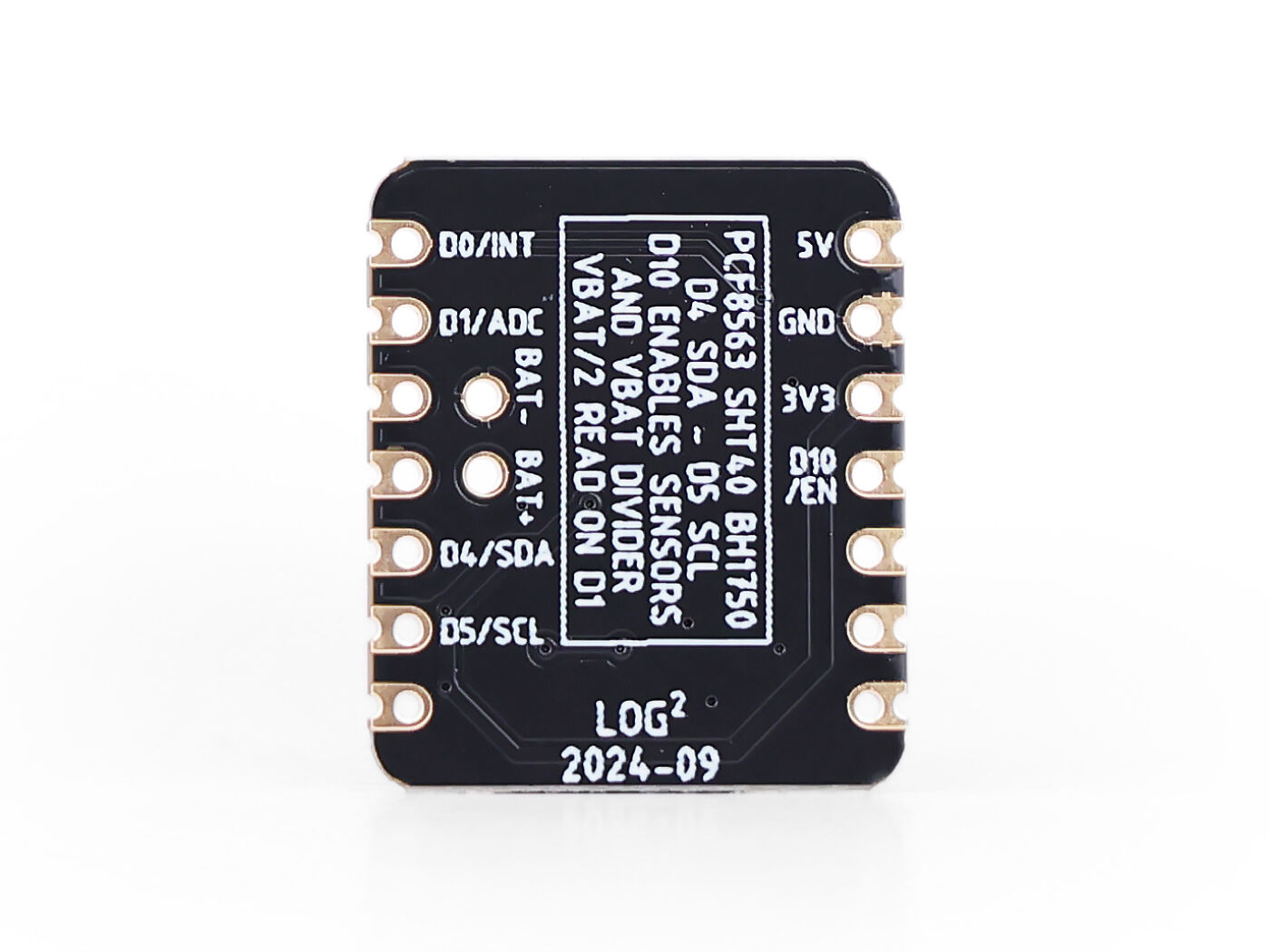

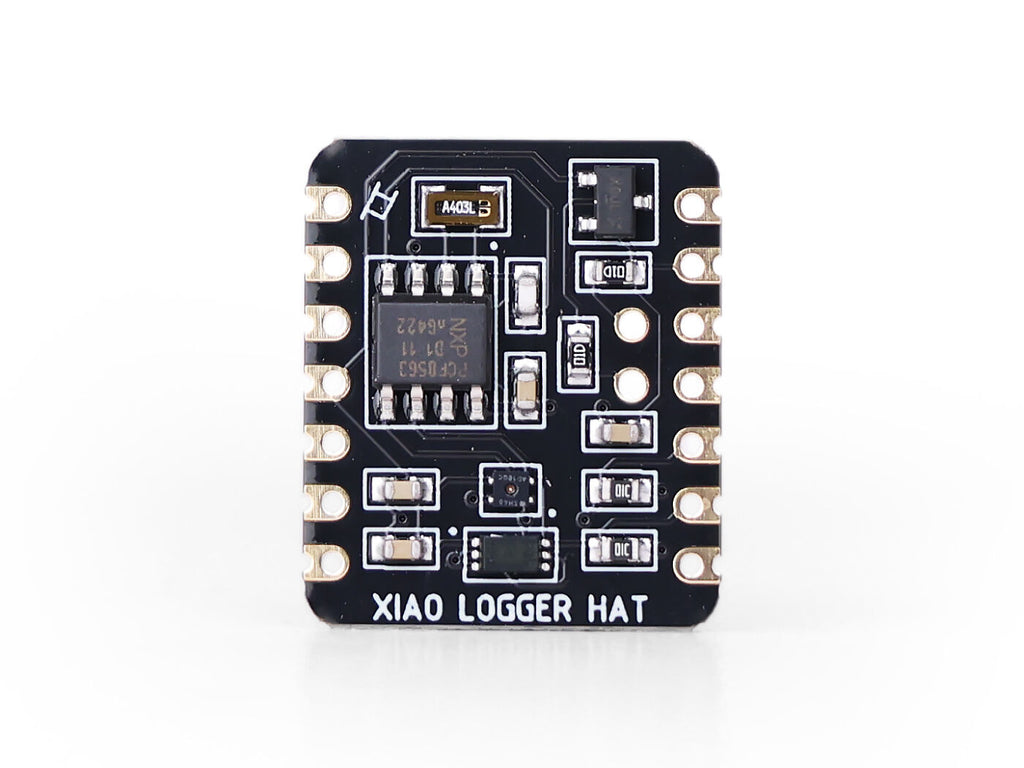

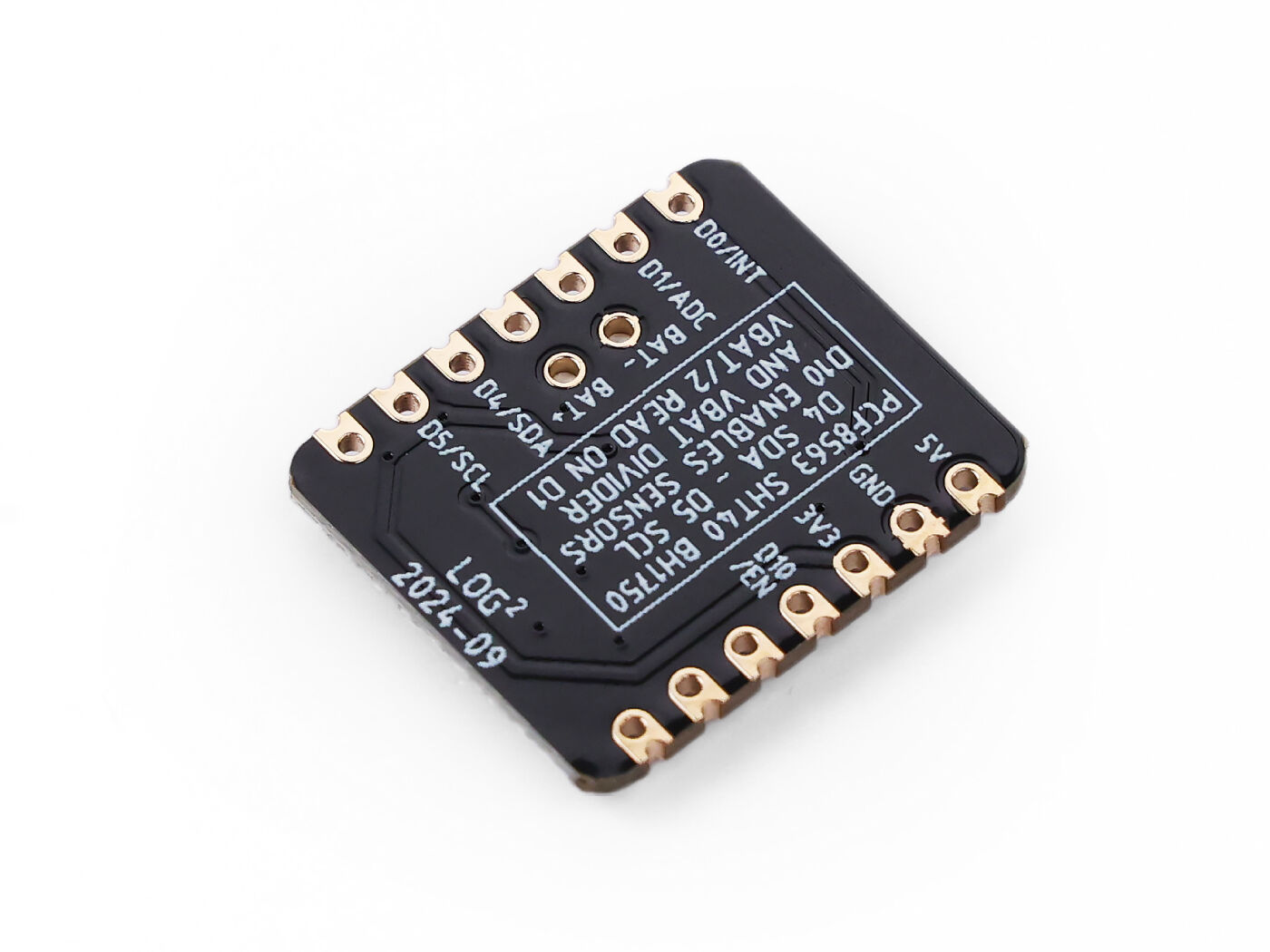

This compact HAT integrates four key components onto one board: a Sensirion SHT40 for accurate temperature and humidity sensing, a BH1750 ambient light sensor, a PCF8563 real-time clock (RTC) for accurate timestamping without a network connection, and an enableable voltage divider for monitoring battery voltage. This is essential for unattended, battery-powered deployments.
All four components communicate over I2C, keeping your XIAO's GPIO usage minimal. The power supply enable pin lets you cut power to the sensors entirely when not sampling, extending battery life significantly in low-duty-cycle logging applications. At just 21 x 17.8 mm, it stacks neatly onto any XIAO board without adding bulk.
This product is a co-creation between Seeed Studio and Westlake University's Marcel, a genuine collaboration between industry and academic research.
Overview
- Sensirion SHT40 - precision temperature and humidity sensing
- BH1750 - calibrated ambient light measurement (lux)
- PCF8563 RTC - accurate timekeeping without network dependency
- Enableable voltage divider for battery voltage monitoring
- All sensors on I2C - minimal GPIO usage
- Power supply enable for low-power duty cycling
- 21 x 17.8 mm - XIAO form factor
Why You'll Like It
-
Four sensors, one board: Temperature, humidity, light and time - everything a data logger needs in one HAT.
-
True RTC: Accurate timestamps even without Wi-Fi or GPS. Ideal for offline and remote deployments.
-
Battery-aware: Onboard voltage monitoring tells you exactly how much power is left without extra hardware.
-
Power-efficient: Enable pin lets you cut sensor power between readings to maximise battery life.
Technical Specifications
| Parameter |
Details |
| Temperature & Humidity |
Sensirion SHT40 |
| Ambient Light |
BH1750 (lux calibrated) |
| Real-Time Clock |
PCF8563 RTC |
| Battery Monitoring |
Enableable voltage divider |
| Interface |
I2C |
| Dimensions |
21 x 17.8 mm |
Perfect For
- Environmental data logging (temperature, humidity, light)
- Remote and unattended sensor nodes
- Smart home and indoor climate monitoring
- Low-power battery-operated IoT deployments
- Education and research data collection
