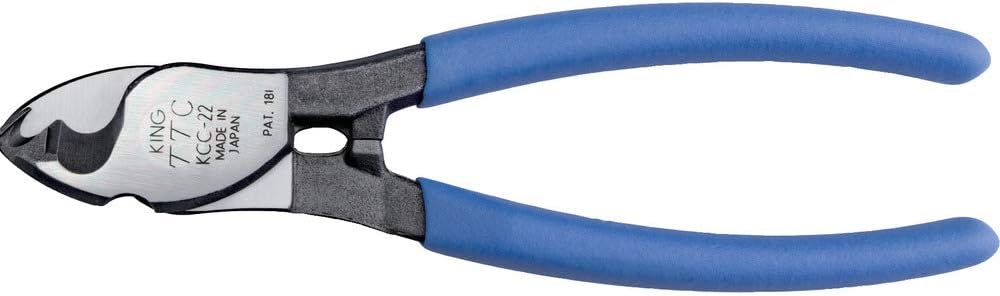

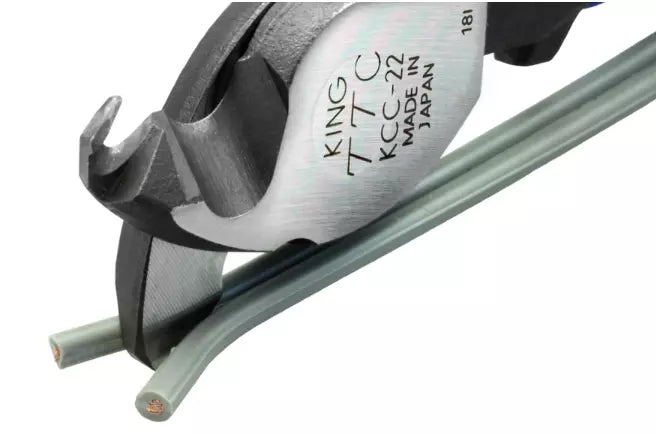

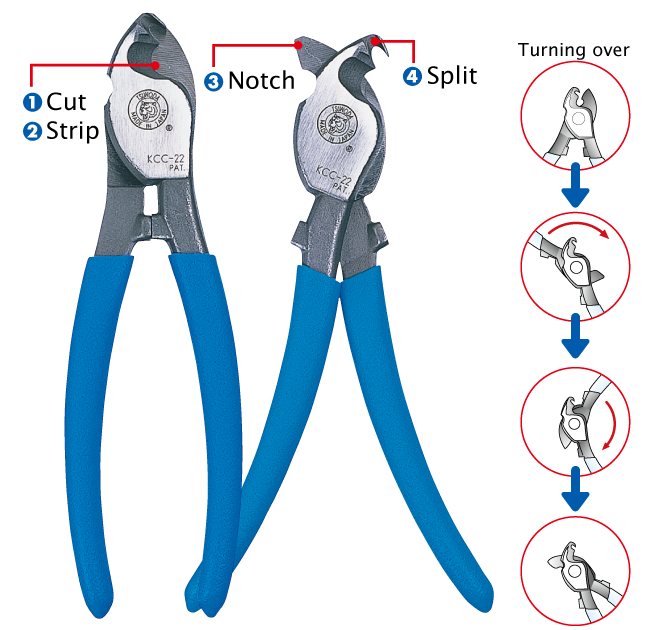

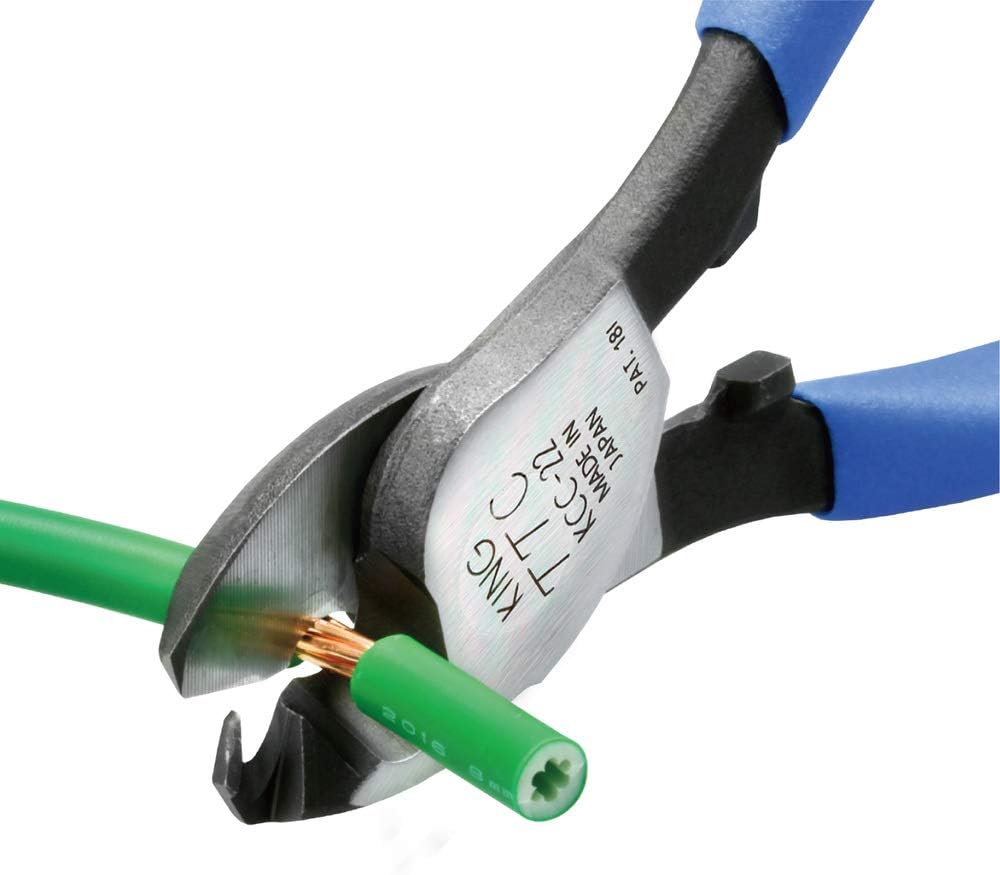

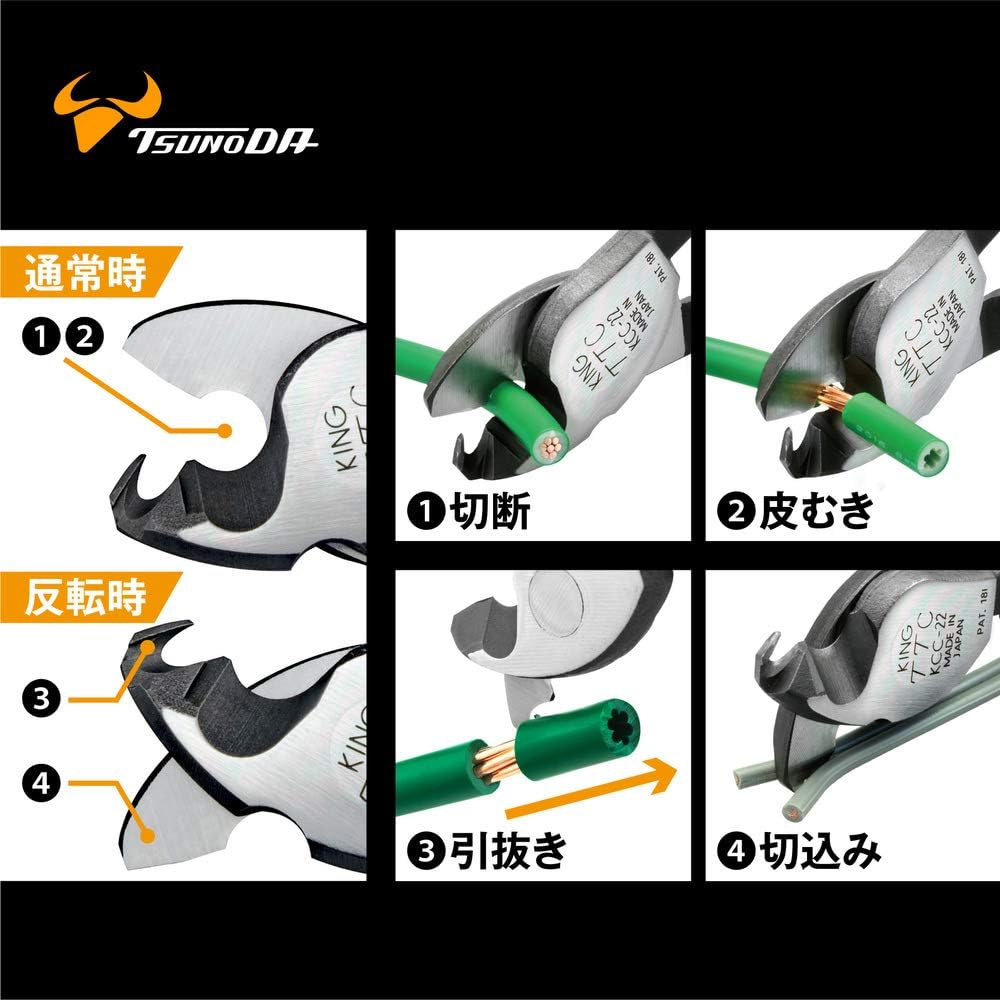

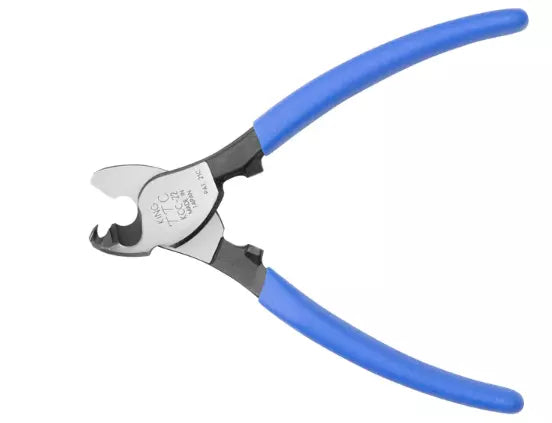

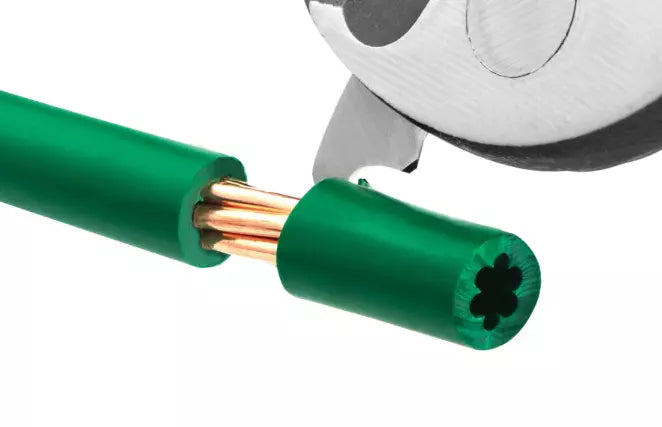

The Tsunoda KCC-22 Reversible Cable Cutter (150mm) is a 6-inch tool that offers four functions - cutting, stripping, notching, and splitting. With the ability to handle even 4 AWG cables, this versatile cable cutter is a must-have for any professional or DIY enthusiast looking for precision and convenience. It features a unique reversed position specifically designed for notching and splitting. It is made in Japan.
This cutter is heavy used in the K & A Electronics workshop. It is one of our favourite tools and we highly recommend them.
- Material | Alloy steel
- Heat Treatment | Oxide-free heat treatment
- Hardness | 54~62
- Handle cover | PVC dipping
|
Size[mm] |
Weight [g] |
Overall length |
Head width |
Head thickness |
Handle width |
Edge length |
KCC-22 |
162 |
25 |
10 |
47 |
18 |
160 |
Cutting capacity (φmm) |
Copper core cable |
IV Cable |
Vinyl coat peeling |
KCC-22 |
9.0 |
22 |
up to 2.5mm thick |
Note: Do not use to cut harder wire or anything above it rated the capacity.
