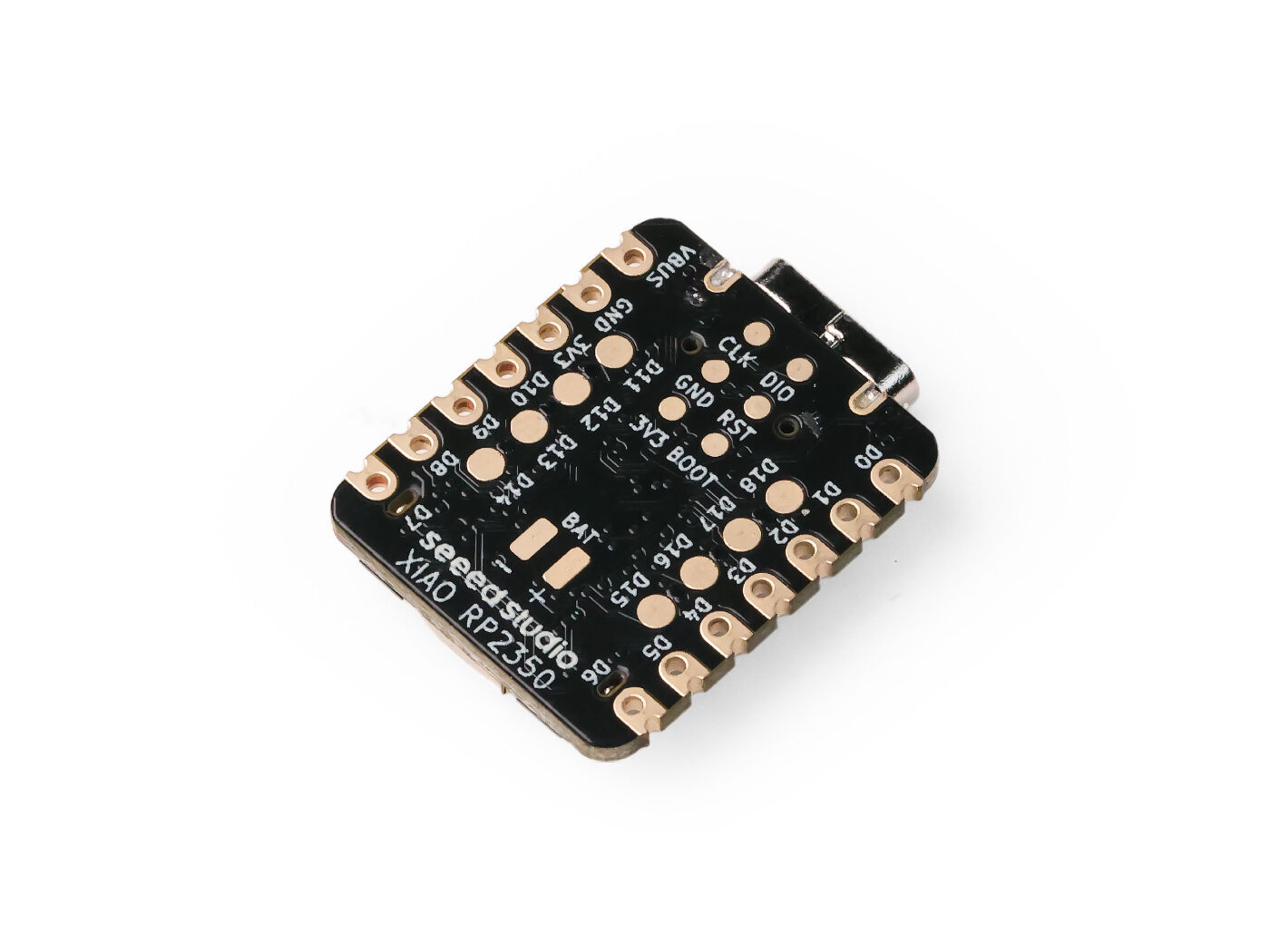

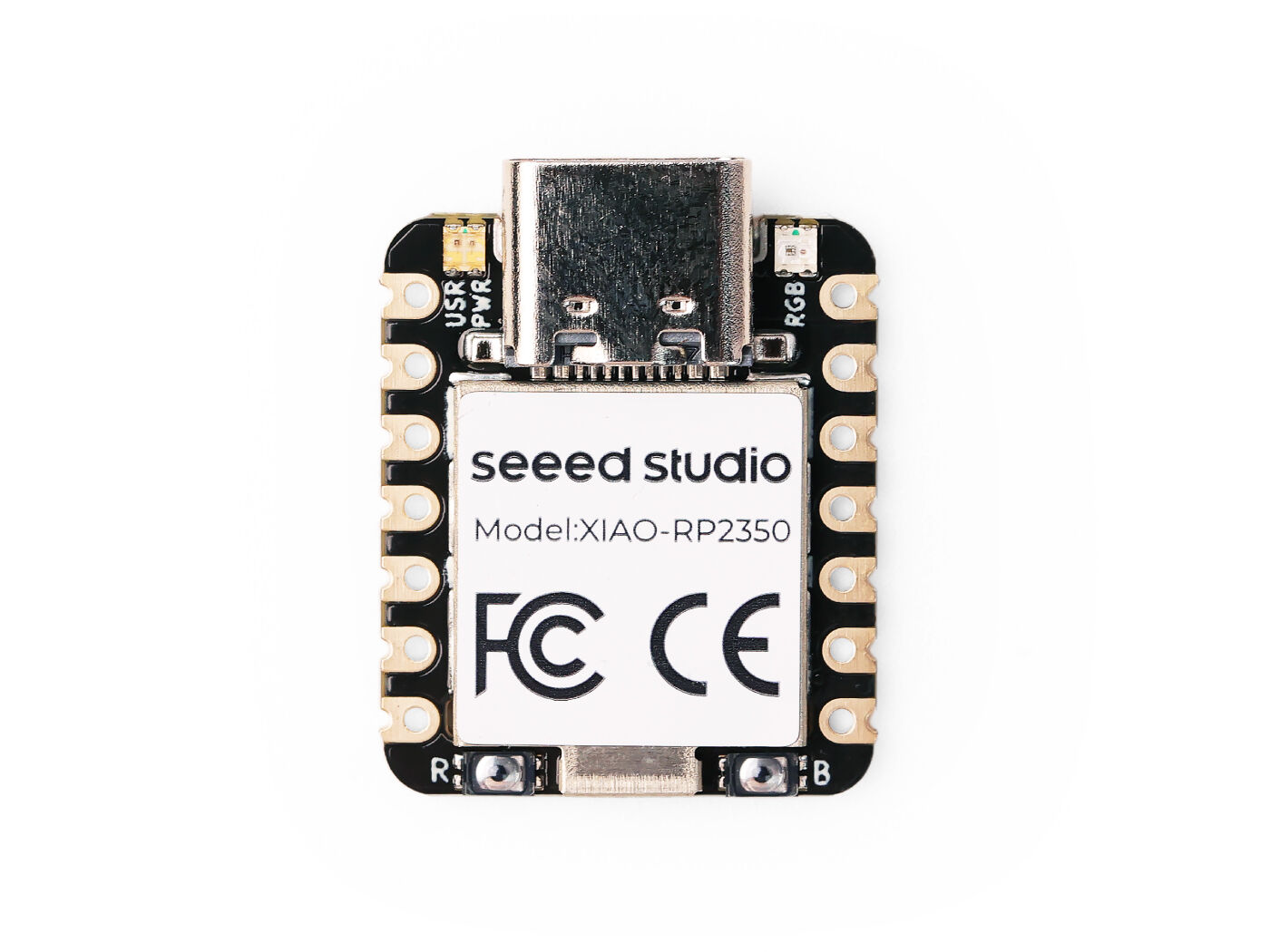

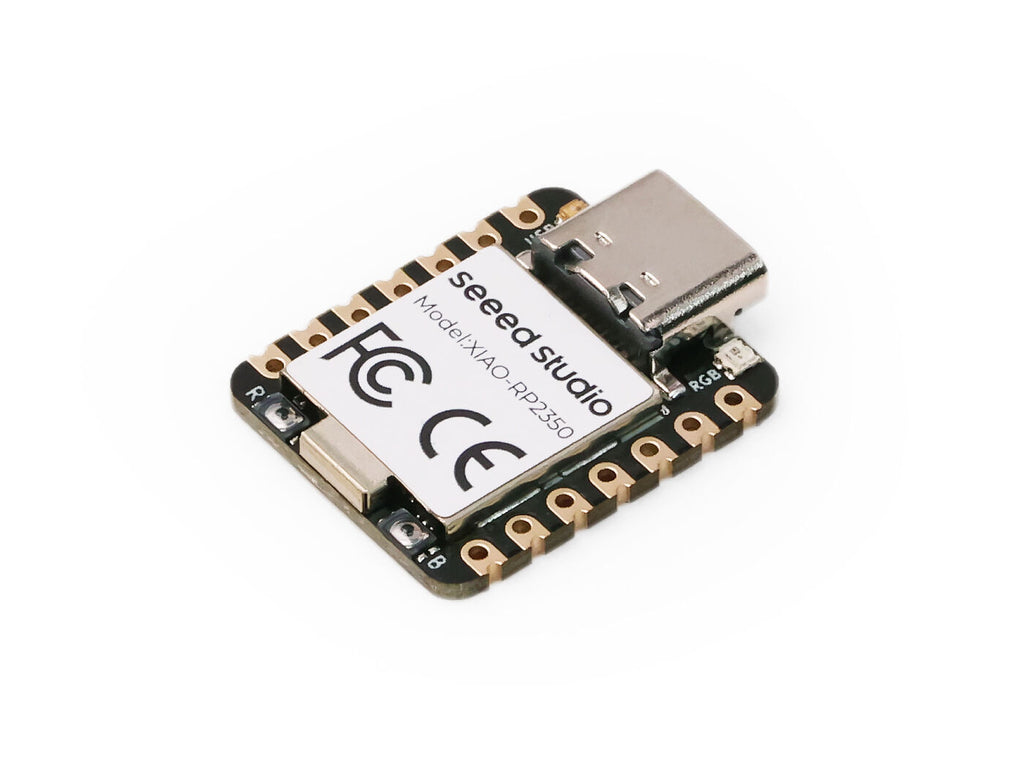

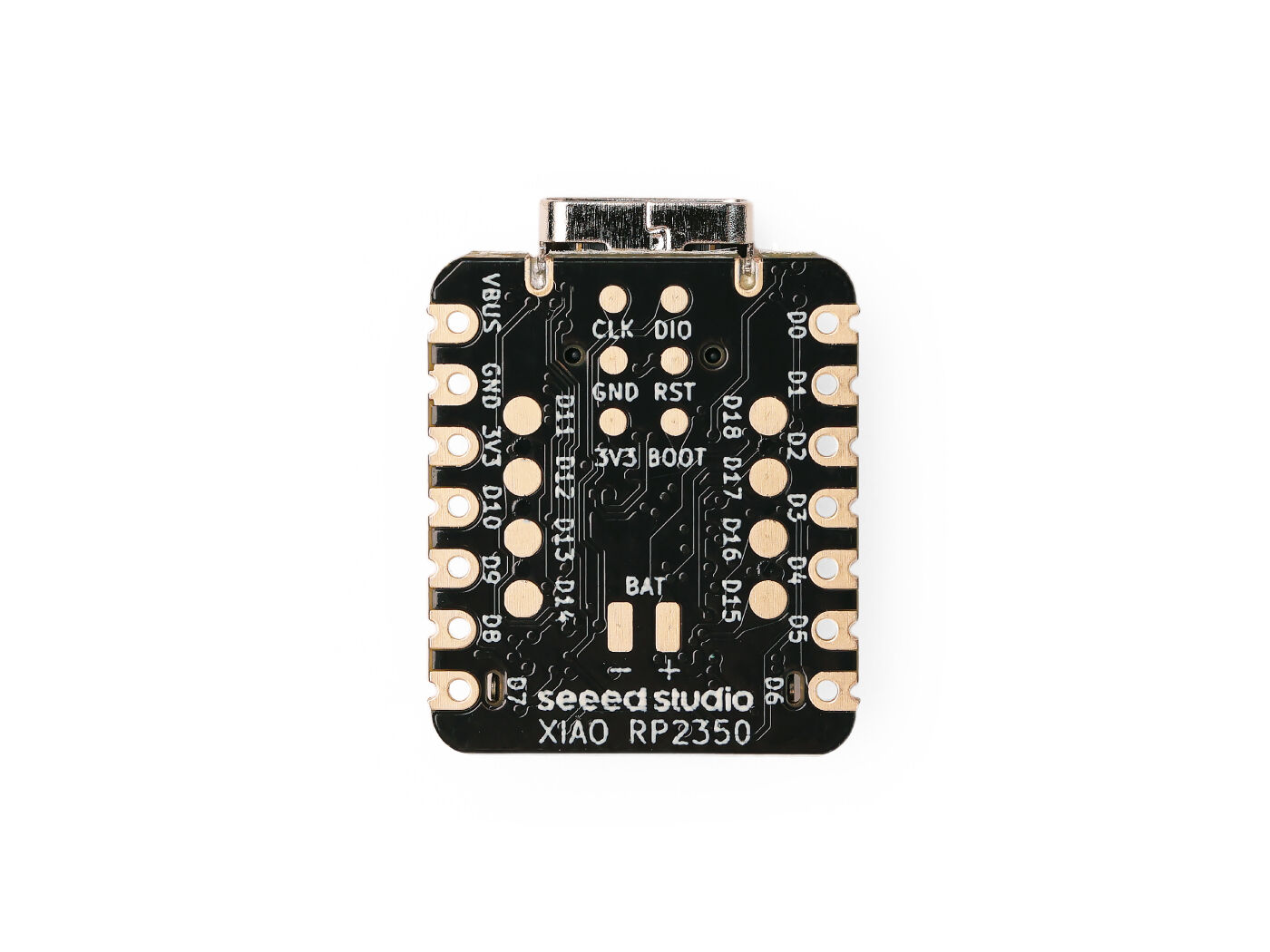

Seeed Studio XIAO RP2350 - The Next-Gen Raspberry Pi Dev Board
When the original RP2040 raised the bar for affordable microcontrollers, the Raspberry Pi RP2350 raised it again. The Seeed Studio XIAO RP2350 brings this next-generation chip to the XIAO form factor. It packs a significantly faster processor, enhanced security, and expanded I/O into the same tiny 21 x 17.8 mm footprint.
At the heart of this board is the RP2350 chip, offering a unique switchable dual-architecture, you can run on either the dual Arm Cortex-M33 cores at 150 MHz (with hardware floating point support), or switch to the open-hardware dual Hazard3 RISC-V cores. This flexibility makes it a genuinely compelling platform for developers who want to experiment with both architectures.
Compared to the RP2040, the RP2350 adds hardware security features, a larger GPIO count (19 multifunction GPIOs), an onboard RGB LED, and an improved Battery Management System with direct battery voltage measurement. It's fully compatible with the Seeed Studio XIAO ecosystem, all your existing expansion boards and Grove modules work seamlessly.
Overview
- Dual Arm Cortex-M33 @ 150 MHz with FPU (or dual RISC-V Hazard3 cores)
- 520KB SRAM, 2MB Flash
- 19x multifunction GPIOs
- Onboard RGB LED
- Battery Management System with direct voltage measurement
- USB Type-C interface
- 21 x 17.8 mm footprint — XIAO ecosystem compatible
Why You'll Like It
-
Two architectures in one: Switch between Arm Cortex-M33 and RISC-V at will. Great for exploring both platforms.
-
More GPIO: 19 multifunction pins give you more flexibility than the original RP2040.
-
Enhanced security: Built-in hardware encryption and secure boot for projects that need it.
-
Drop-in upgrade: Fully compatible with XIAO ecosystem boards so your existing setup doesn't need to change.
Technical Specifications
| Parameter |
Details |
| Processor |
RP2350 — dual Arm Cortex-M33 @ 150 MHz + FPU, or dual RISC-V Hazard3 |
| Memory |
520KB SRAM, 2MB Flash |
| GPIO |
19x multifunction GPIOs |
| Onboard |
RGB LED, Battery Management System |
| Interface |
USB Type-C |
| Dimensions |
21 x 17.8 mm |
Perfect For
- Developers upgrading from RP2040-based projects
- Smart control and wearable electronics
- DIY keyboards and HID devices
- IoT and battery-powered sensors
- Dual-architecture exploration and education
At K & A Electronics, we stock the latest development boards so your projects are always running on current hardware. Order today with fast Australia-wide shipping and local support from our Sydney team.
