Building battery-powered, intelligent IoT devices used to require significant compromise: you either sacrificed processing power for battery life, or your board struggled to support modern wireless protocols like Matter and Thread without draining its power source.
Enter the Seeed Studio XIAO nRF54L15.
Built around the cutting-edge Nordic nRF54L15 SoC, this thumb-sized development board completely redefines what’s possible in edge computing. Upgrading from the legendary nRF52 series, the new nRF54L15 boasts a lightning-fast 128 MHz Arm Cortex-M33 core and an expanded 1.5 MB of non-volatile memory (NVM). This gives you the headroom to run complex code, manage multiple sensors, and handle heavy wireless traffic directly on the board.
Despite the raw power, it is shockingly efficient. Drawing just 0.6 µA in System OFF mode, this board is tailor-made for remote nodes and wearables that need to run for months-or even years-on a tiny battery.
Combined with native support for BLE 6.0, Matter, Thread, and Zigbee, and featuring built-in battery charging circuitry, it's the ultimate all-in-one wireless microcontroller for your next big project.
Overview
-
Next-gen Nordic nRF54L15 SoC: 128 MHz Arm Cortex-M33 with 1.5MB NVM / 256KB RAM
-
Advanced wireless connectivity: Supports BLE 6.0, Matter, Thread, and Zigbee out of the box
-
Ultra-low power consumption: Only 0.6 µA in System OFF mode
-
Integrated power management: Built-in battery charging chip via USB Type-C
-

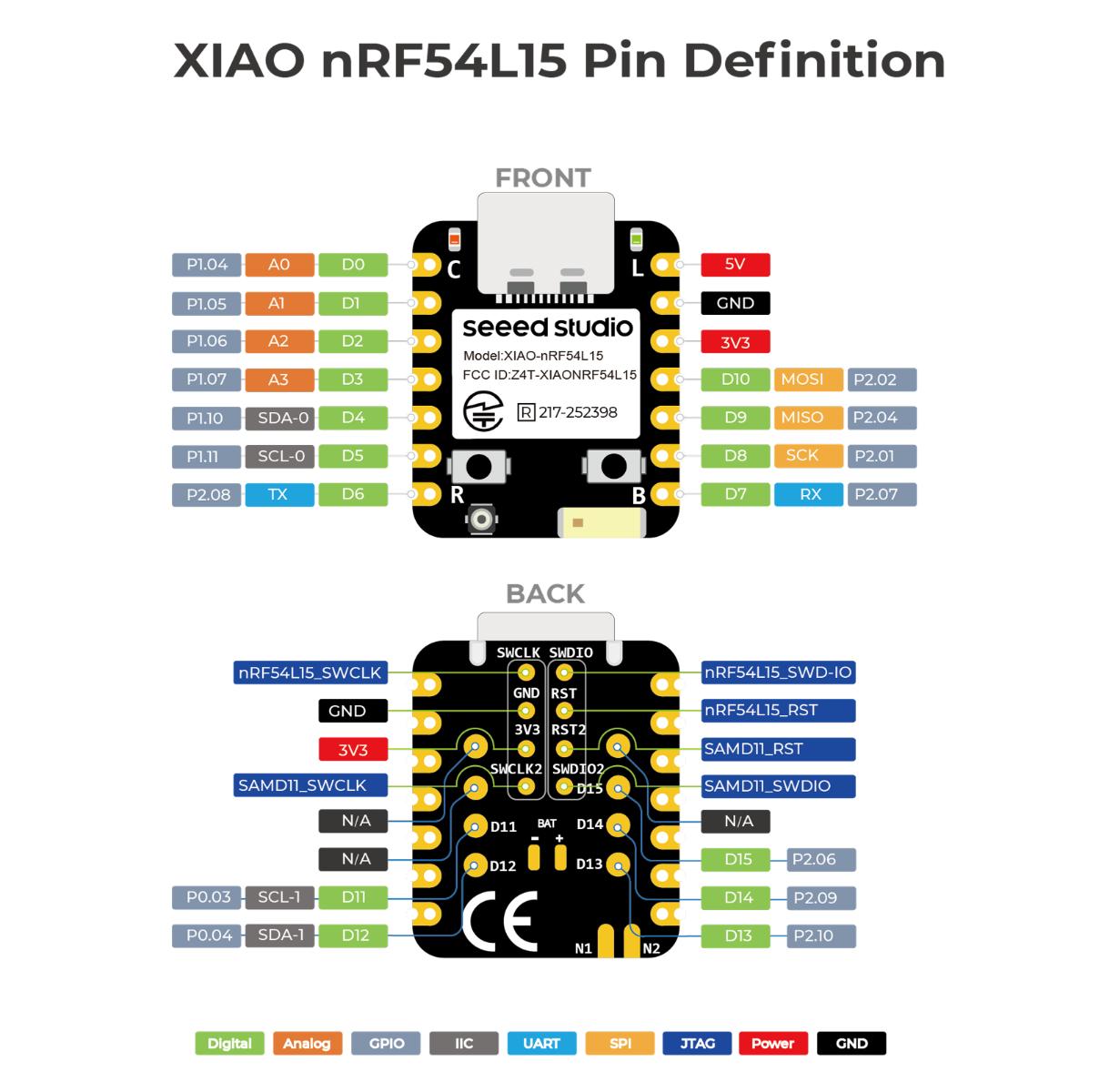

Standard XIAO footprint: 16 flexible GPIOs packed into a tiny 21 x 17.5 mm board
-
Robust security: Hardware-level protection for secure IoT deployments
Why You’ll Like It
-
True next-generation BLE: Upgrading to BLE 6.0 gives you better range, higher throughput, and enhanced security for modern IoT deployments compared to older nRF52 chips.
-
Incredible battery life: The advanced power efficiency of the nRF54L15 chip means less time charging and more time deploying remote sensors.
-
All-in-one power: You don't need an external charging module; just plug a LiPo battery directly into the board and the onboard PMIC handles the rest.
-
Pro-level development: Fully compatible with Zephyr RTOS, Nordic nRF Connect SDK, and PlatformIO, making it a joy to program for serious engineers.
Technical Specifications
| Parameter |
Details |
| Microcontroller |
Nordic nRF54L15 (Arm Cortex-M33 @ 128 MHz) |
| Memory |
1.5 MB NVM, 256 KB RAM |
| Wireless Protocols |
Bluetooth LE 6.0, Matter, Thread, Zigbee |
| Power Consumption |
0.6 µA (System OFF mode) |
| Battery Management |
Integrated charging chip via USB-C |
| I/O Interfaces |
16x GPIOs (UART, I2C, SPI, ADC) |
| Dimensions |
21 x 17.5 mm |
Perfect For
- Smart home nodes requiring Matter or Thread compatibility
- Battery-powered environmental monitoring and remote logging
- Wearable electronics and health tracking devices
- Drop-in upgrades for older nRF52840 or ESP32-C3 projects
- Custom BLE mesh networks
At K & A Electronics, we stock the hardware that pushes the boundaries of maker and engineering projects. If you're building next-gen wireless devices, the XIAO nRF54L15 gives you unmatched power, efficiency, and connectivity.
Order today with fast Australia-wide shipping and local support from our Sydney team.
