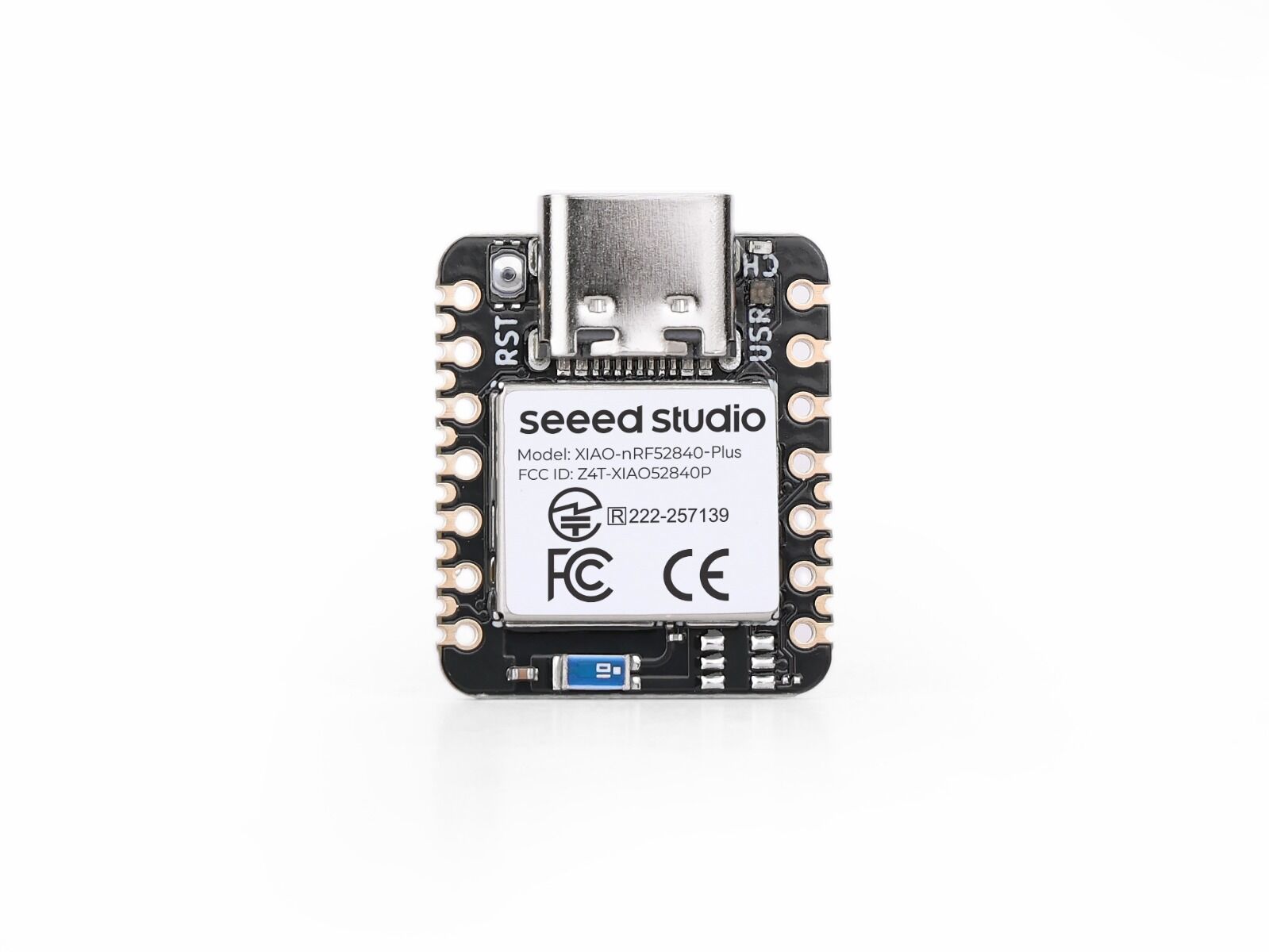

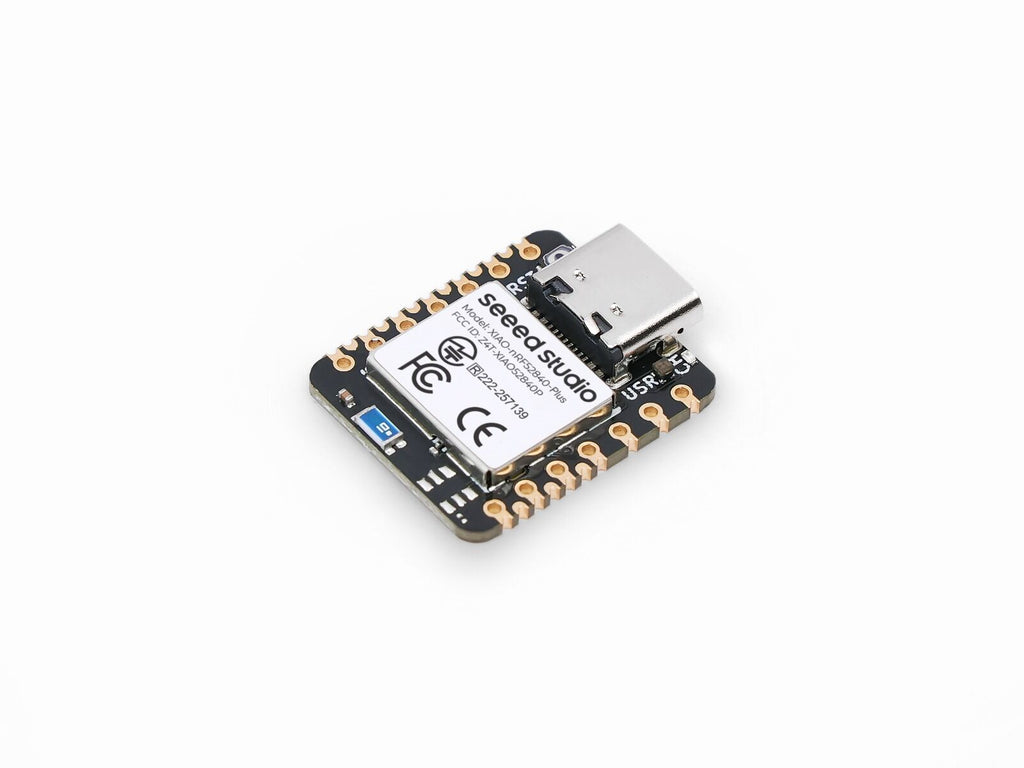

Seeed Studio XIAO nRF52840 Plus - More GPIO for Serious Bluetooth Projects
The XIAO nRF52840 has been one of the most popular boards in the XIAO ecosystem and for good reason. Powered by Nordic's nRF52840 with a hardware floating point unit (FPU), it delivers rock-solid Bluetooth LE 5.4, NFC support, and ultra-low power consumption in a tiny 21 x 17.8 mm form factor.

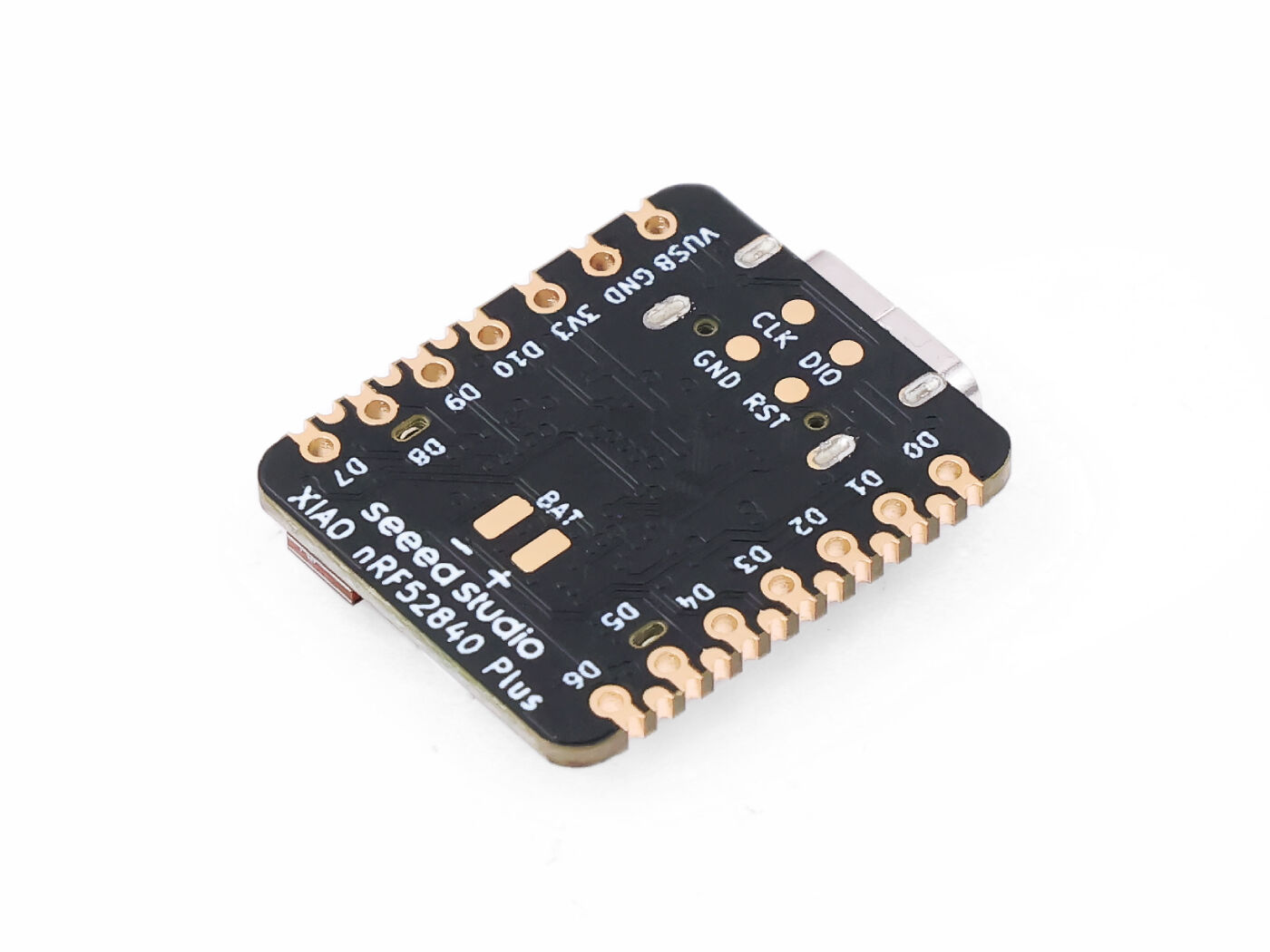

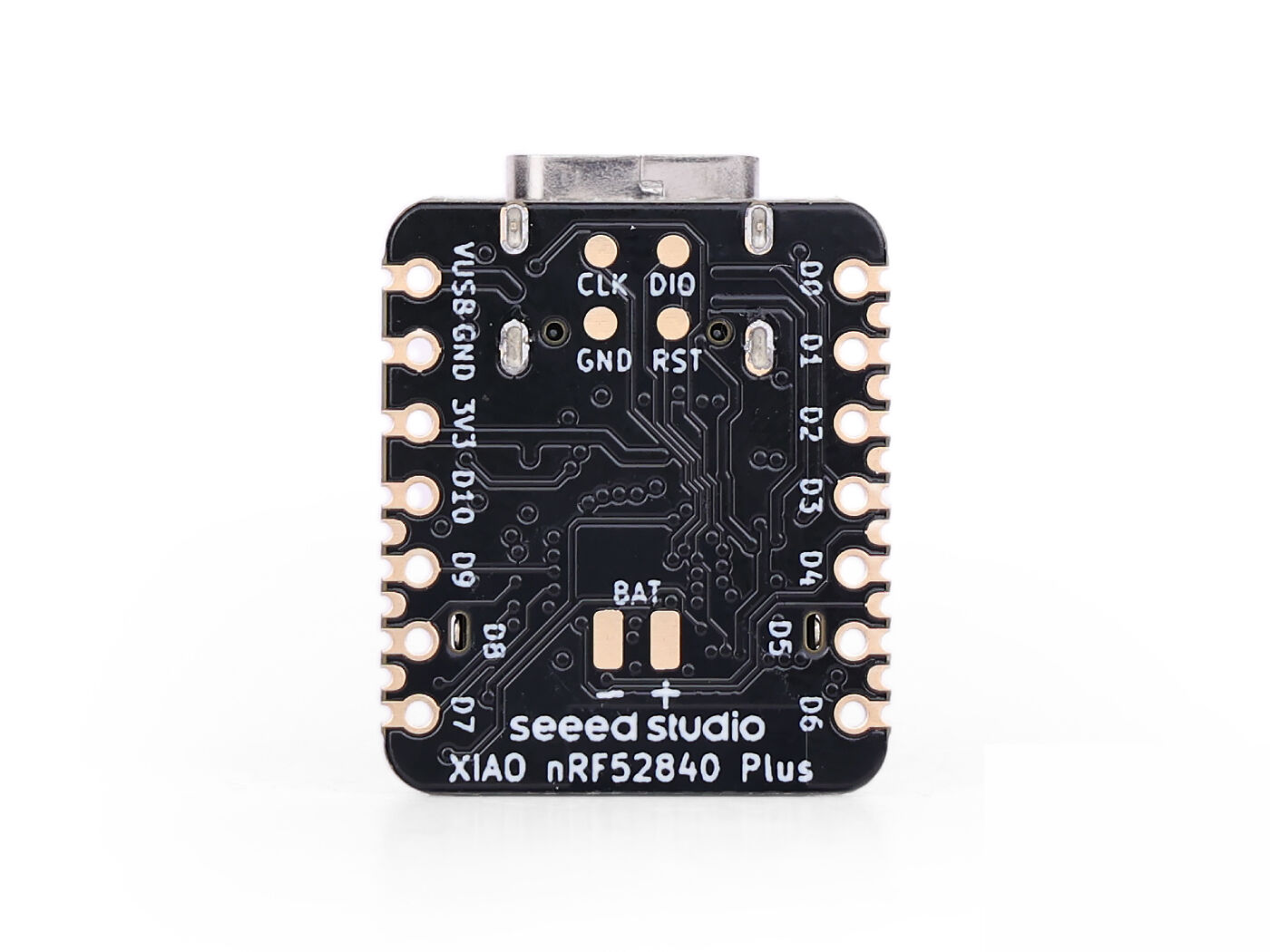

The Plus variant builds on everything that made the standard nRF52840 great by adding 9 additional SMD GPIO pins via redesigned back-side castellations. These extra pins are specifically designed for advanced Bluetooth projects where expanded I/O is essential, accessible via 1.27 mm pitch SMD board-to-board soldering, bringing the total to 20 GPIOs.
All the core capabilities remain intact: Bluetooth LE 5.4 (one of the most up-to-date BLE standards on any XIAO board), NFC for proximity-based applications, ultra-low power for battery deployments, and full compatibility with the XIAO accessory ecosystem. Supports Arduino, MicroPython, and the nRF Connect SDK.
Overview
- Nordic nRF52840 - Arm Cortex-M4 with FPU @ 64 MHz
- 256KB RAM, 1MB Flash + 2MB onboard Flash
- Bluetooth LE 5.4 / Bluetooth Mesh / NFC
- 20x GPIOs (9 extra SMD castellation pins on the back)
- Ultra-low power consumption
- Compatible with all XIAO expansion boards and accessories

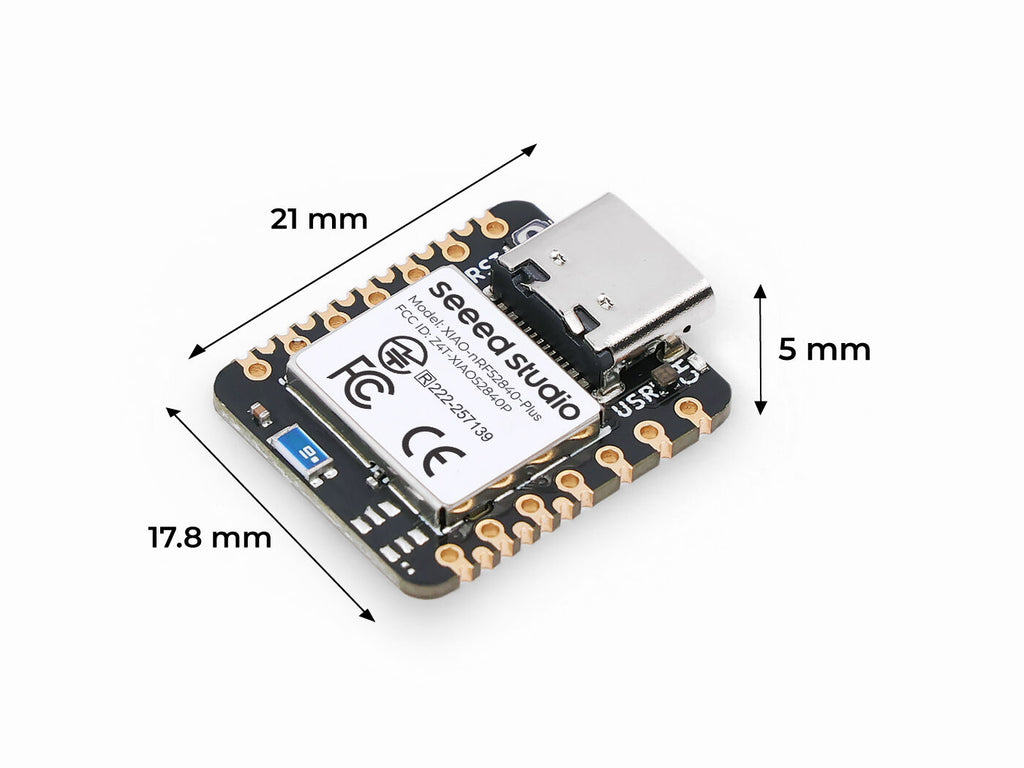

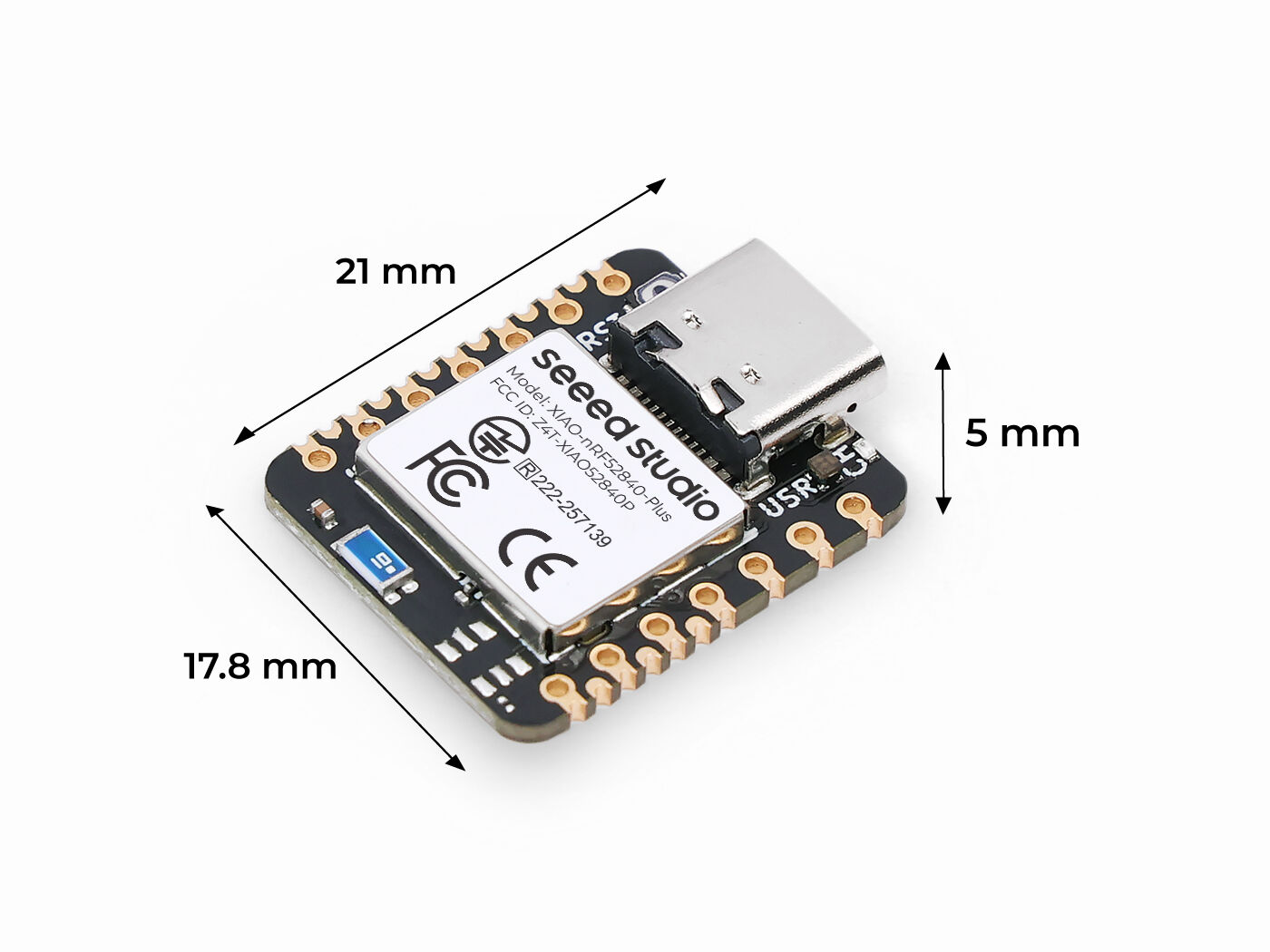

- 21 x 17.8 mm footprint
Why You'll Like It
-
Latest BLE 5.4: One of the highest BLE version ratings on any maker board. Future-proof for Bluetooth mesh and advanced connectivity.
-
NFC built in: Great for proximity triggers, contactless pairing, and asset tracking applications.
-
More I/O where you need it: The 9 extra back-side SMD pins are purpose-built for complex Bluetooth designs requiring more connections.
-
Trusted Nordic silicon: The nRF52840 is an industry standard for BLE, robust, reliable, and well-documented.
Technical Specifications
| Parameter |
Details |
| Processor |
Nordic nRF52840, Arm Cortex-M4 with FPU @ 64 MHz |
| Memory |
256KB RAM, 1MB Flash + 2MB onboard Flash |
| Wireless |
Bluetooth LE 5.4 / Bluetooth Mesh / NFC |
| GPIO |
20x (9 extra 1.27mm SMD castellation pins) |
| Power |
Ultra-low consumption (battery-optimised) |
| Dimensions |
21 x 17.8 mm |
Perfect For
- Wearable devices and health monitoring
- Advanced Bluetooth Mesh networks
- NFC-enabled IoT applications
- Embedded machine learning (TinyML) with BLE reporting
- Board-to-board SMD integration
At K & A Electronics, we carry the boards that engineers and serious makers choose for production-quality wireless projects. Order today with fast Australia-wide shipping and local support from our Sydney team.
