Seeed Studio XIAO Debug Mate

Seeed Studio XIAO Debug Mate - Your All-in-One XIAO Debugging Toolkit

Debugging embedded systems is painful enough without hunting for the right probe, adapter, or serial monitor tool every time something goes wrong. The Seeed Studio XIAO Debug Mate puts everything you need into one open-source device - chip-level debugging, serial monitoring, and power profiling, all with a live visual display.

Built on an ESP32-S3 core, the Debug Mate features a 2.01 inch TFT LCD display and an LED status matrix that gives you immediate visual feedback during debugging sessions, no more squinting at terminal windows to confirm your target board is alive. It connects to your XIAO via native socket support and communicates with your development machine via USB.

The three core functions cover everything a developer needs: DAPLink SWD chip-level debugging for stepping through code on ARM Cortex-M targets, UART passthrough serial monitoring for watching live log output, and accurate µA-level power consumption measurement for optimising battery life in low-power deployments. Compatible with SAMD21, nRF52840, RP2040, RP2350, RA4M1, and MG24 XIAO boards.

Overview

• ESP32-S3 based open-source debug tool
• 2.01 inch TFT LCD display for live visual feedback
• LED status matrix for at-a-glance status
• DAPLink SWD interface for chip-level ARM debugging

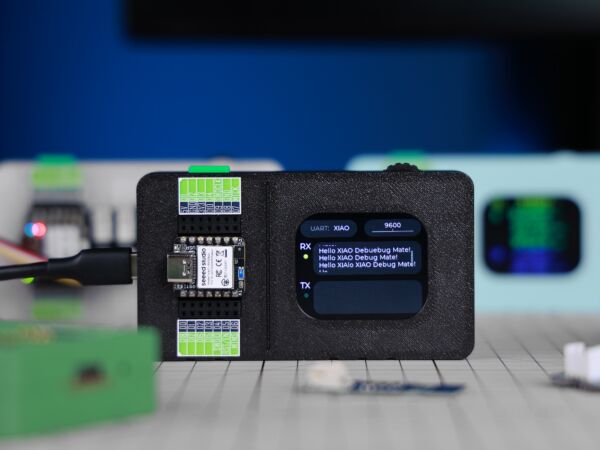

• UART passthrough for serial monitoring

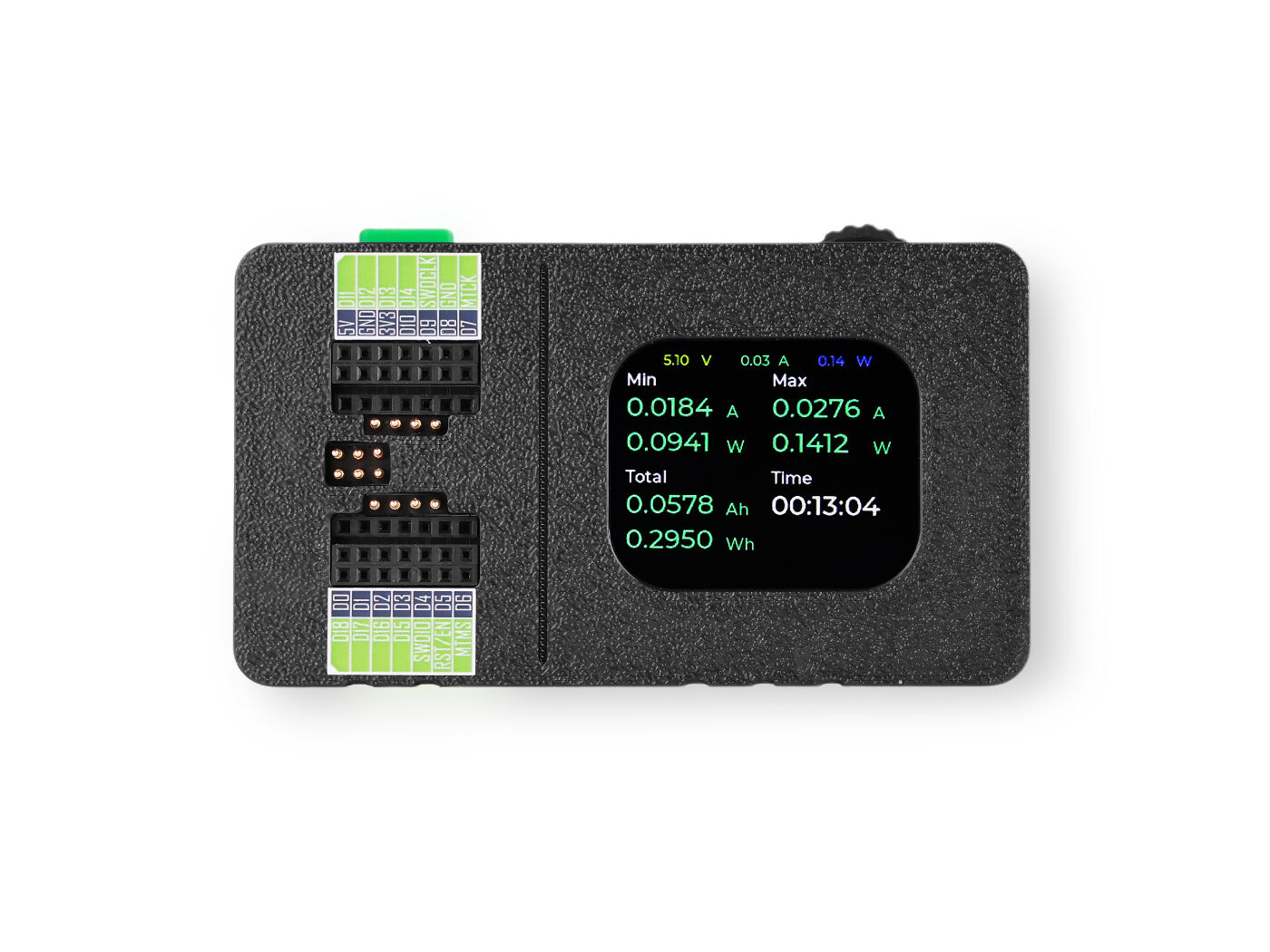

• µA-level power consumption profiling
• Plug-and-play - no complex wiring required

Why You'll Like It

• Three tools in one: Debugger, serial monitor, and power analyser - without the cable chaos.
• Visual feedback: The onboard LCD tells you exactly what's happening without a separate terminal window.
• µA-level power profiling: Essential for optimising deep sleep and low-power IoT deployments.
• Open source: Fully hackable and extensible for custom debug workflows.

Technical Specifications

Perfect For

• Embedded systems development and validation
• Low-power IoT deployment optimisation
• Production line testing and field service
• Education and professional prototyping

At K & A Electronics, we stock the tools that make serious embedded development faster and less frustrating. Order today with fast Australia-wide shipping and local support from our Sydney team.
