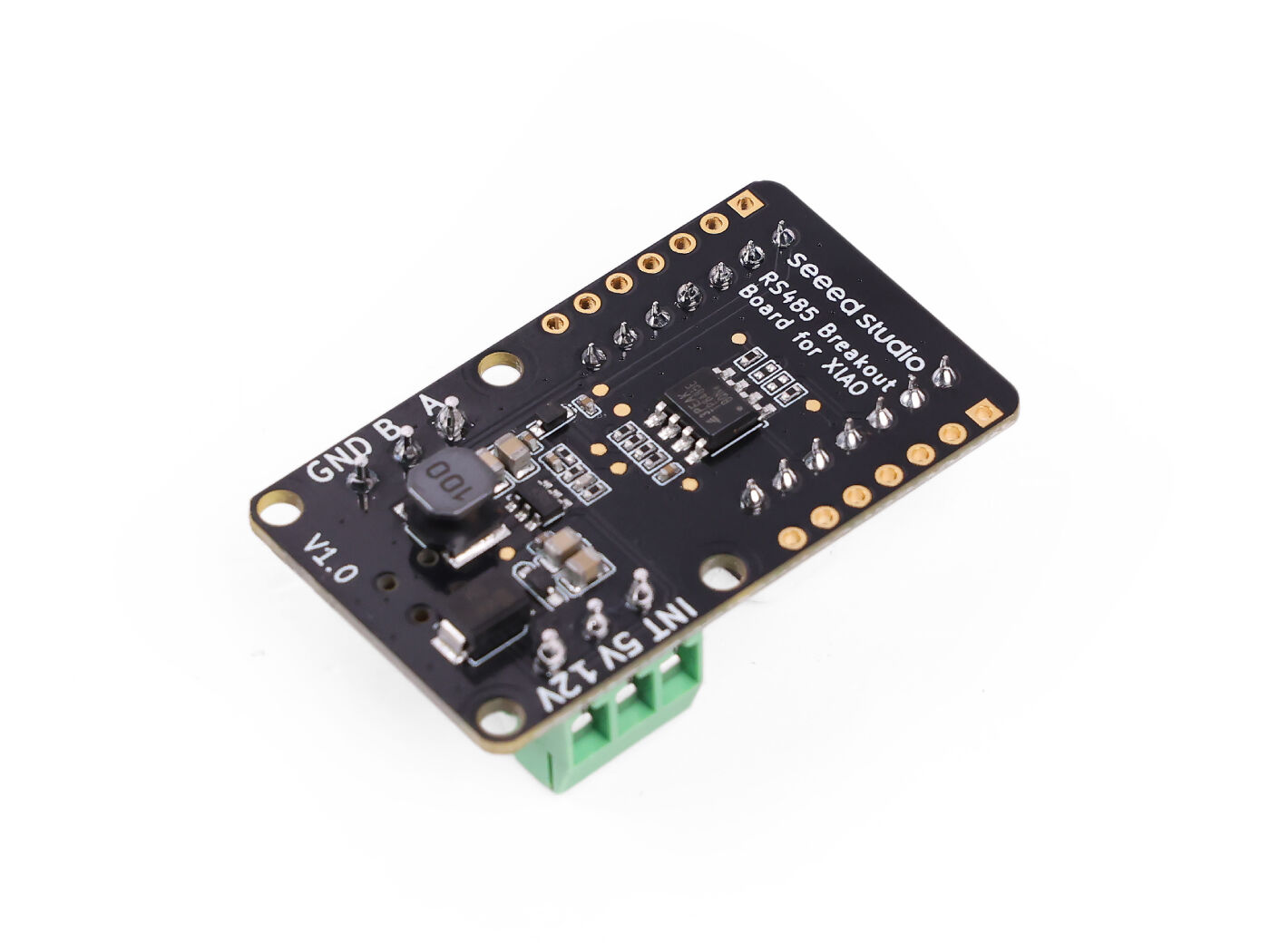

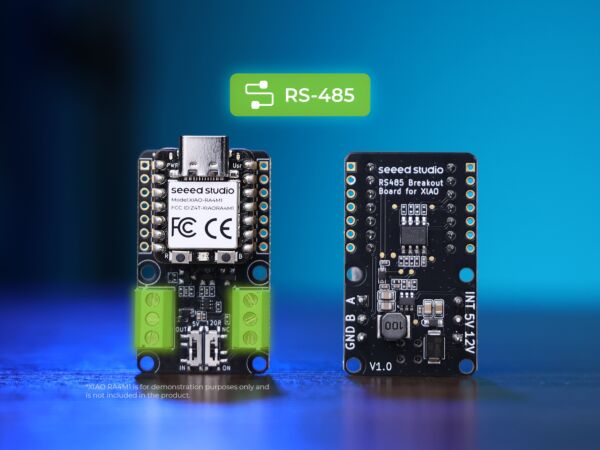

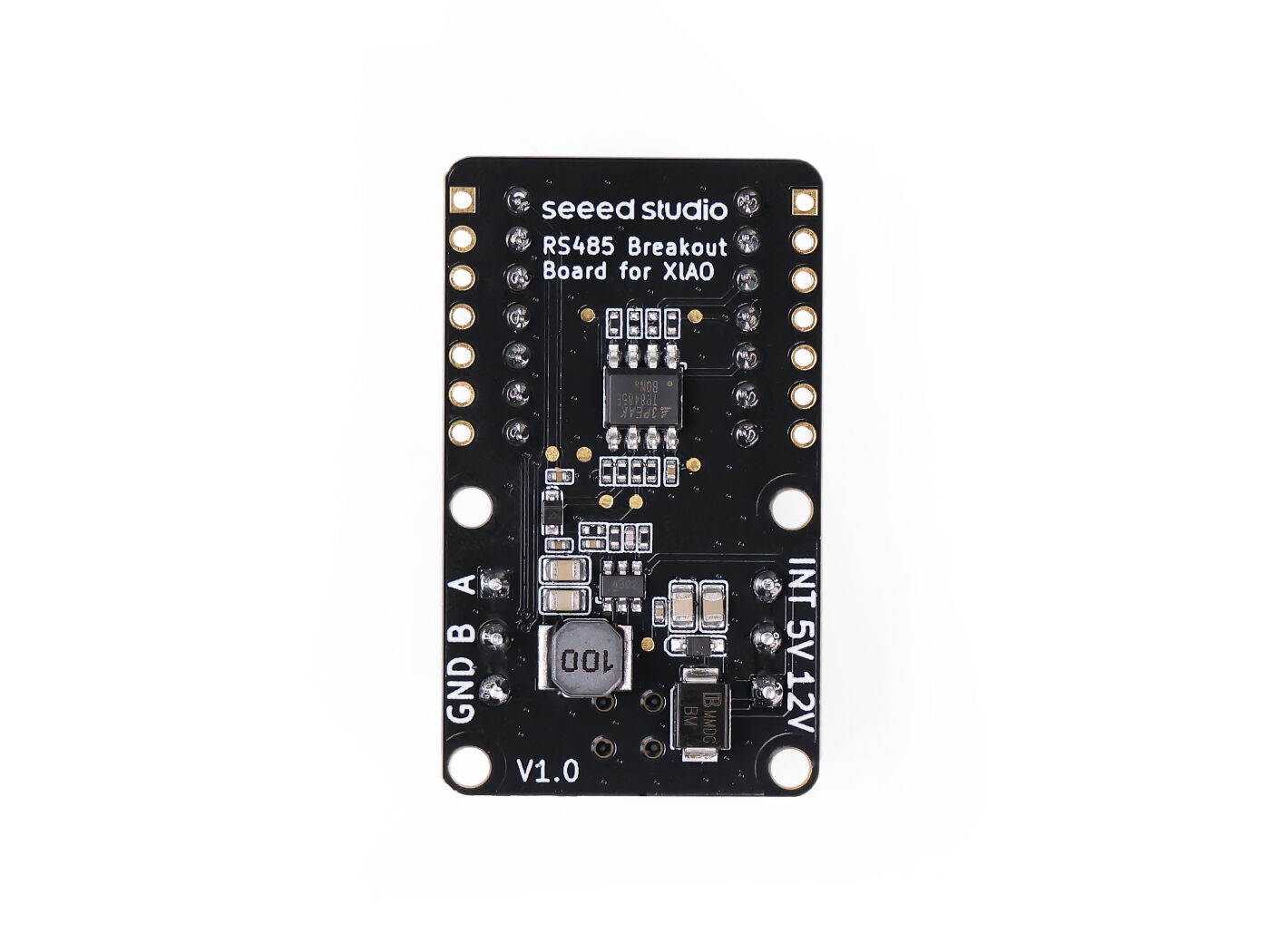

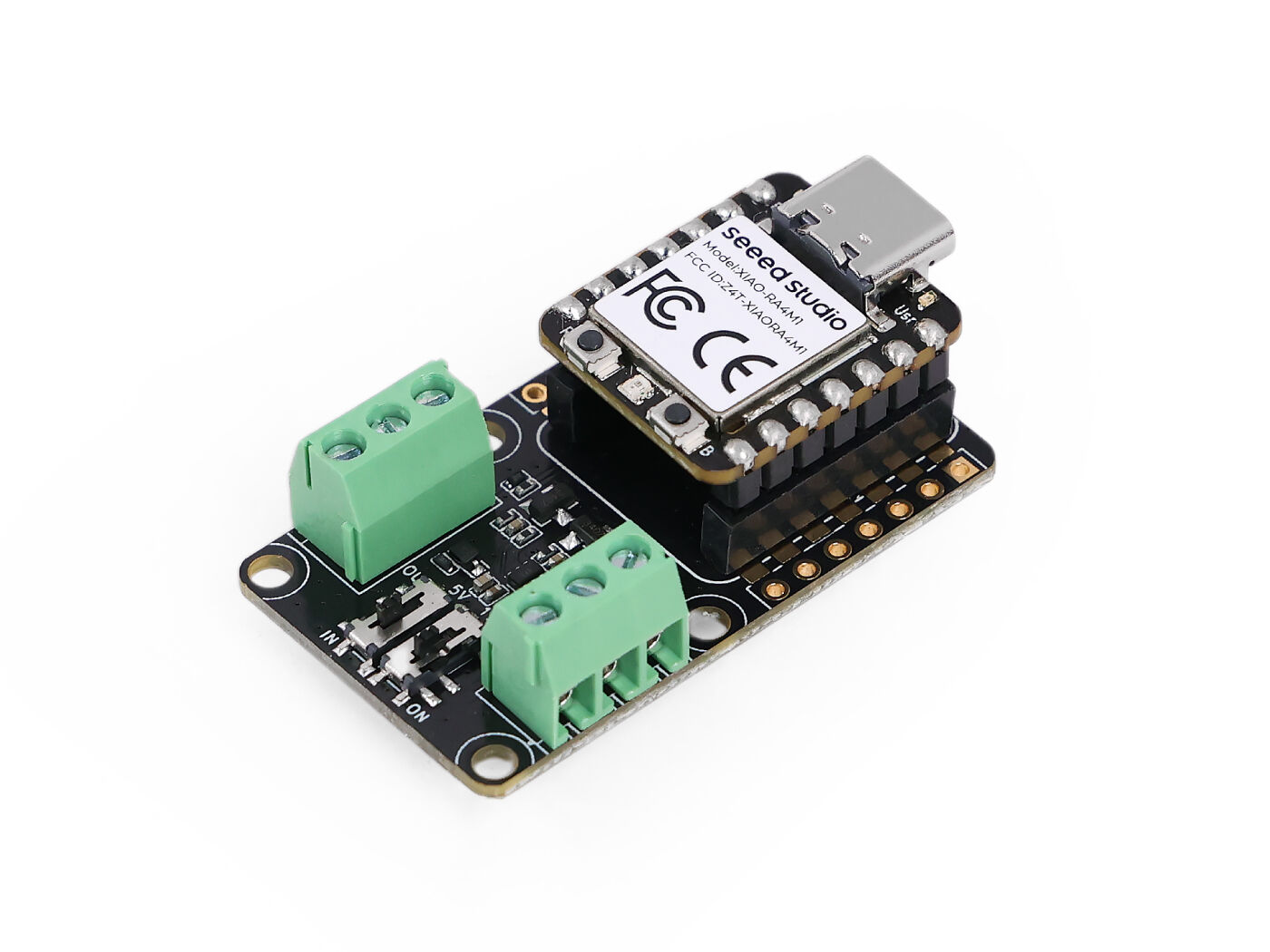

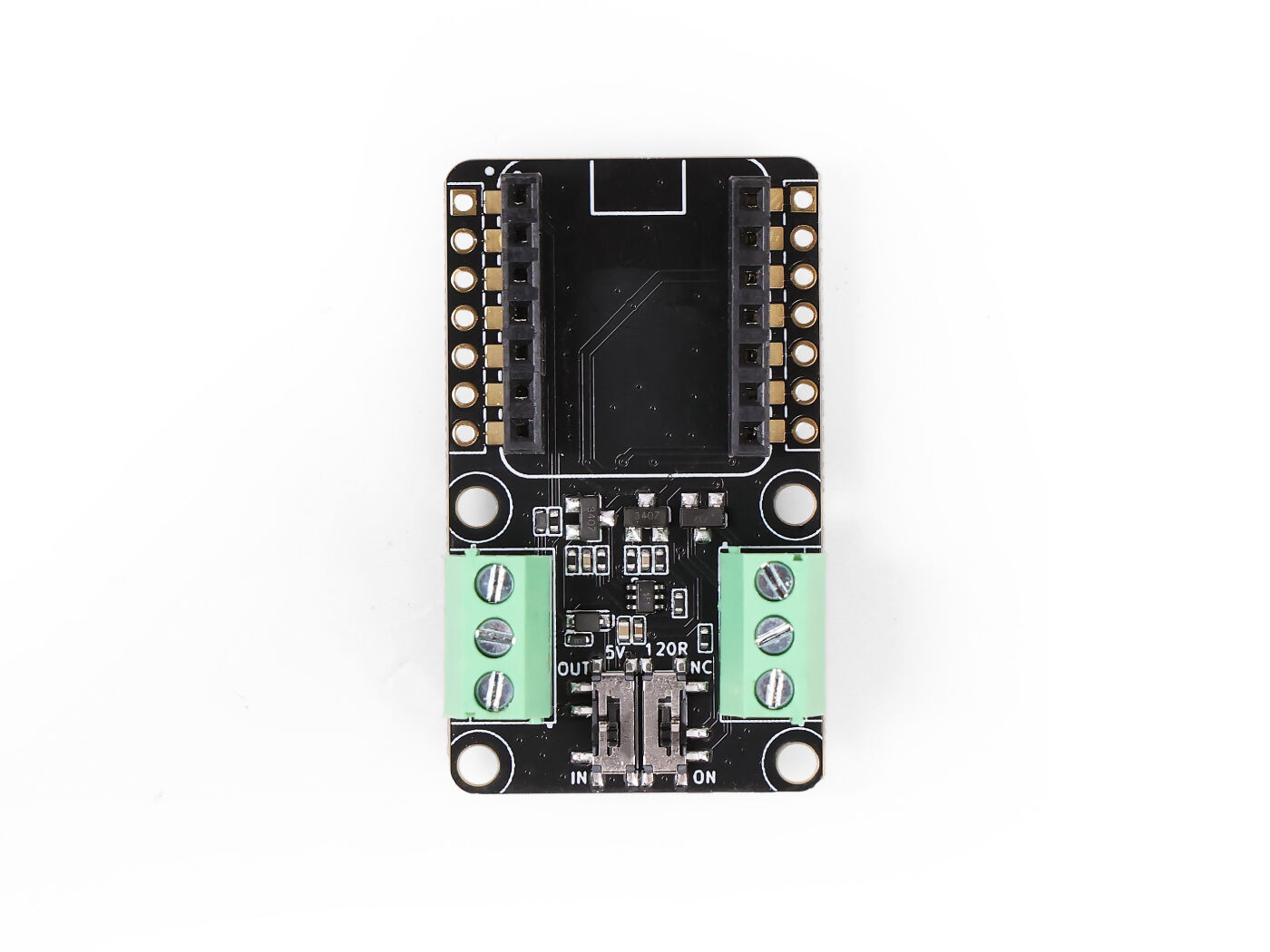

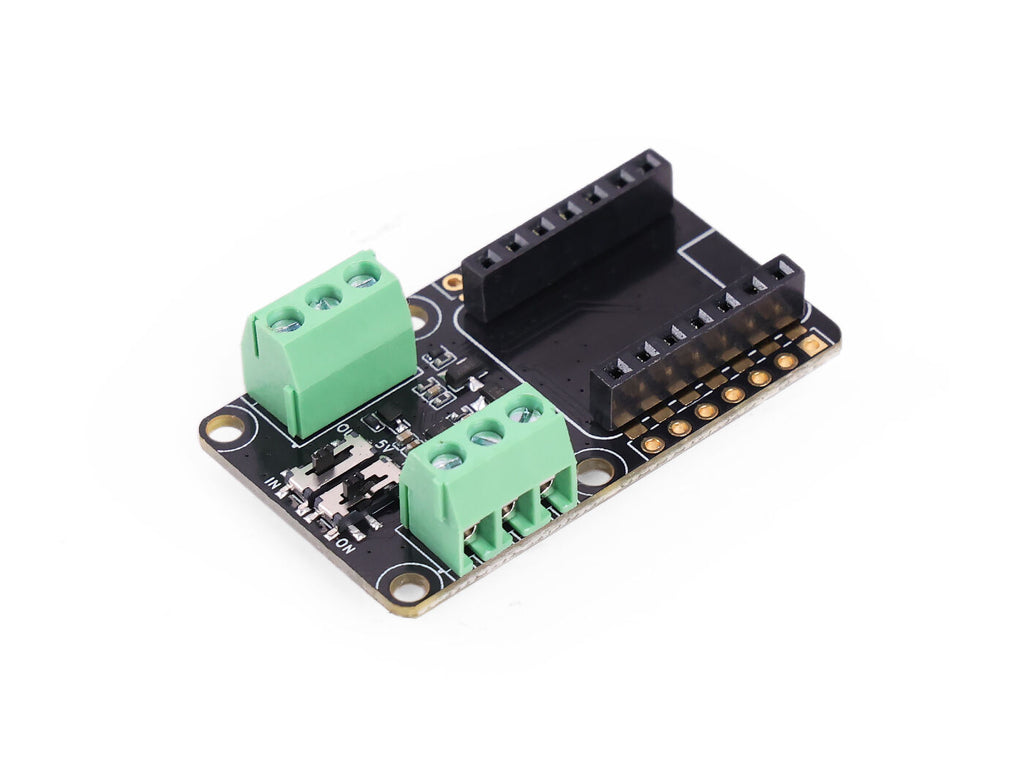

RS485 Breakout Board for Seeed Studio XIAO - Long-Distance Industrial Communication
When your project needs to send data reliably across a factory floor, along a building automation bus, or over a kilometre of cable in a noisy environment, standard UART or I2C simply won't do the job. The RS485 Breakout Board for Seeed Studio XIAO gives your XIAO board access to the industrial-grade RS-485 communication standard, built for long distance, high noise immunity, and multi-node networks.
Equipped with the TP8485E transceiver IC, this breakout board converts your XIAO's UART serial output to RS-485 differential signals automatically. Operating as a half-duplex transceiver, it handles the direction switching internally, so your code just writes to UART and the board does the rest. It supports data transmission up to 1200 metres at baud rates up to 250,000 bps.
Power is taken from a single 5V or 12V DC source, and the RS-485 output is accessed via clean 3-pin screw terminals for both signal wires and power — making wiring into existing RS-485 networks straightforward. Compatible with all Seeed Studio XIAO boards.
Overview
- TP8485E RS-485 transceiver IC
- Converts UART to RS-485 differential signals automatically
- Half-duplex operation — auto direction switching
- Range: up to 1200 metres
- Baud rate: up to 250,000 bps
- Power: 5V or 12V DC input
- 3-pin screw terminals for RS-485 signal and power
- Compatible with all XIAO boards
Why You'll Like It
-
Industry-standard RS-485: The go-to protocol for Modbus, DMX, and industrial sensor networks.
-
No code changes needed: Just write to UART - the TP8485E handles RS-485 direction automatically.
-
Kilometre-range comms: 1200m range opens up projects that Wi-Fi and BLE simply can't reach.
-
Clean screw terminal wiring: Easy integration into existing RS-485 networks and control panels.
Technical Specifications
| Parameter |
Details |
| Transceiver IC |
TP8485E |
| Protocol |
RS-485 (half-duplex) |
| Max Range |
1200 metres |
| Max Baud Rate |
250,000 bps |
| Power Input |
5V or 12V DC |
| Connector |
3-pin screw terminals |
| Compatibility |
All Seeed Studio XIAO boards |
Perfect For
- Industrial automation and Modbus networks
- Building automation and HVAC control
- Remote sensor and monitoring systems
- DMX lighting control
- Multi-drop serial communication networks
