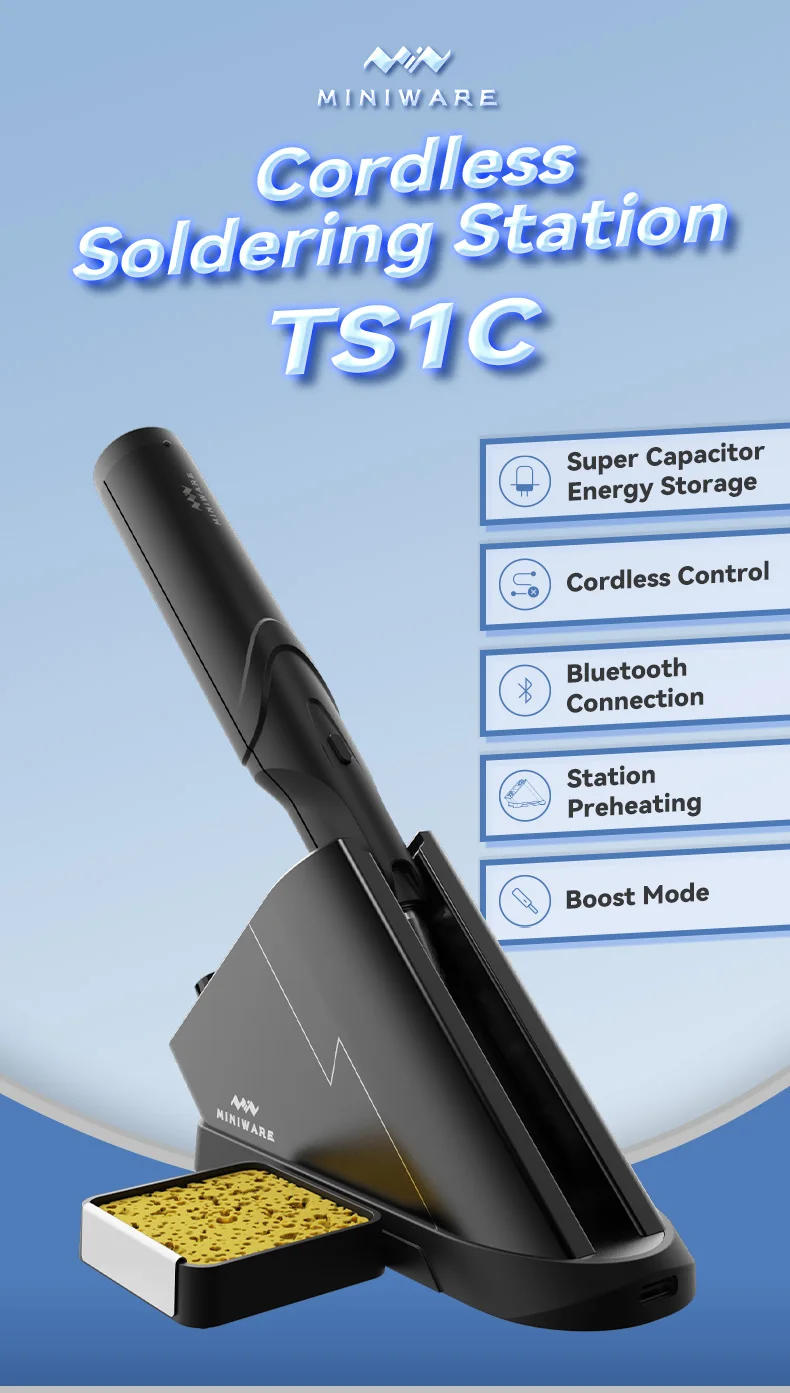

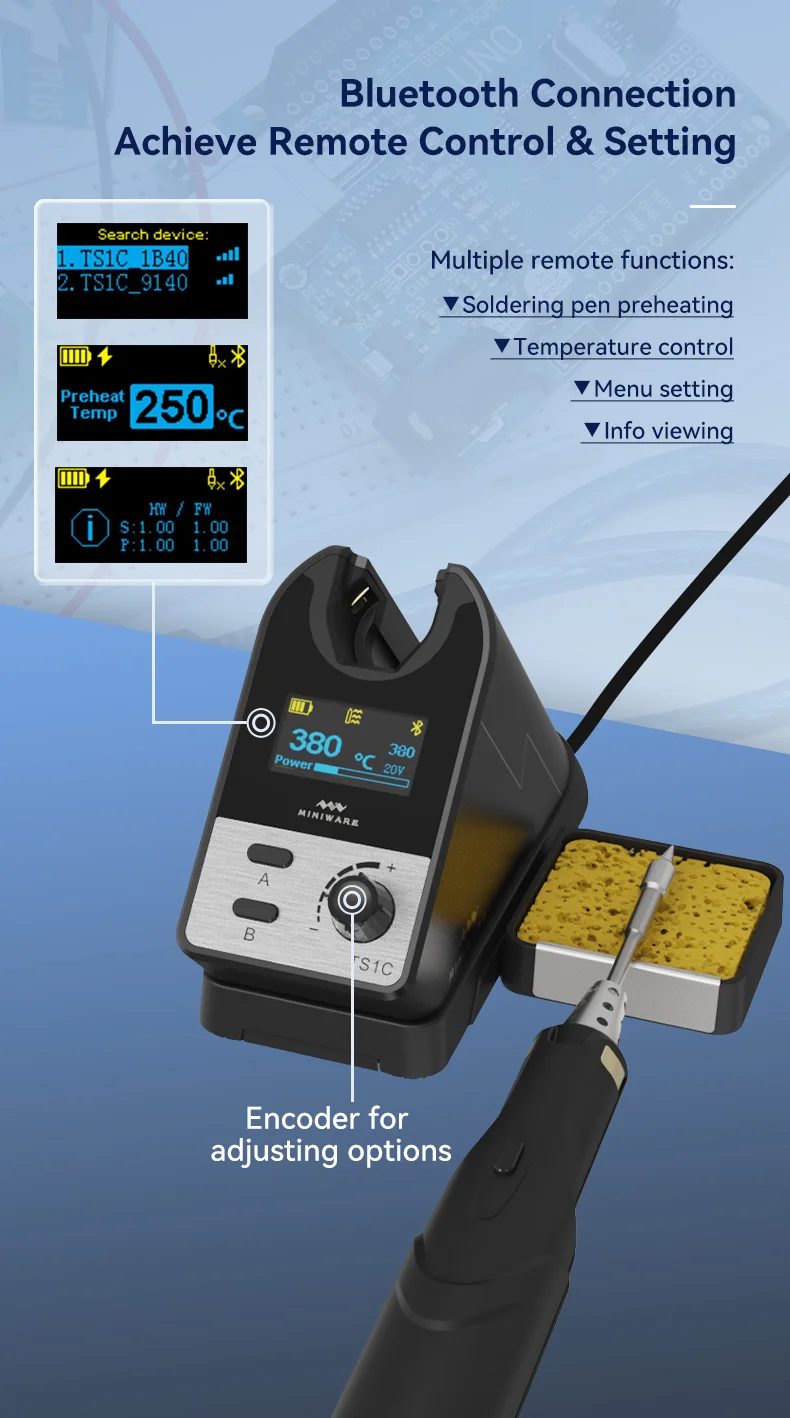

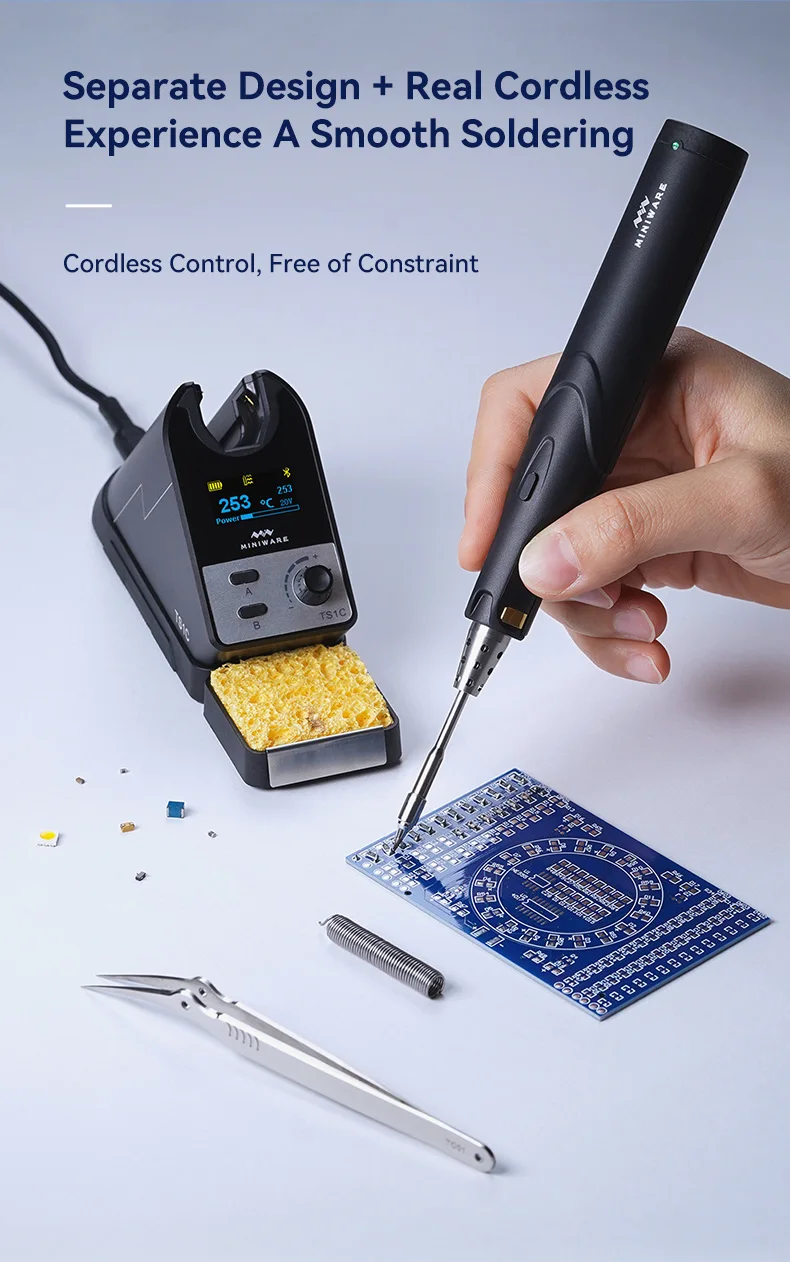

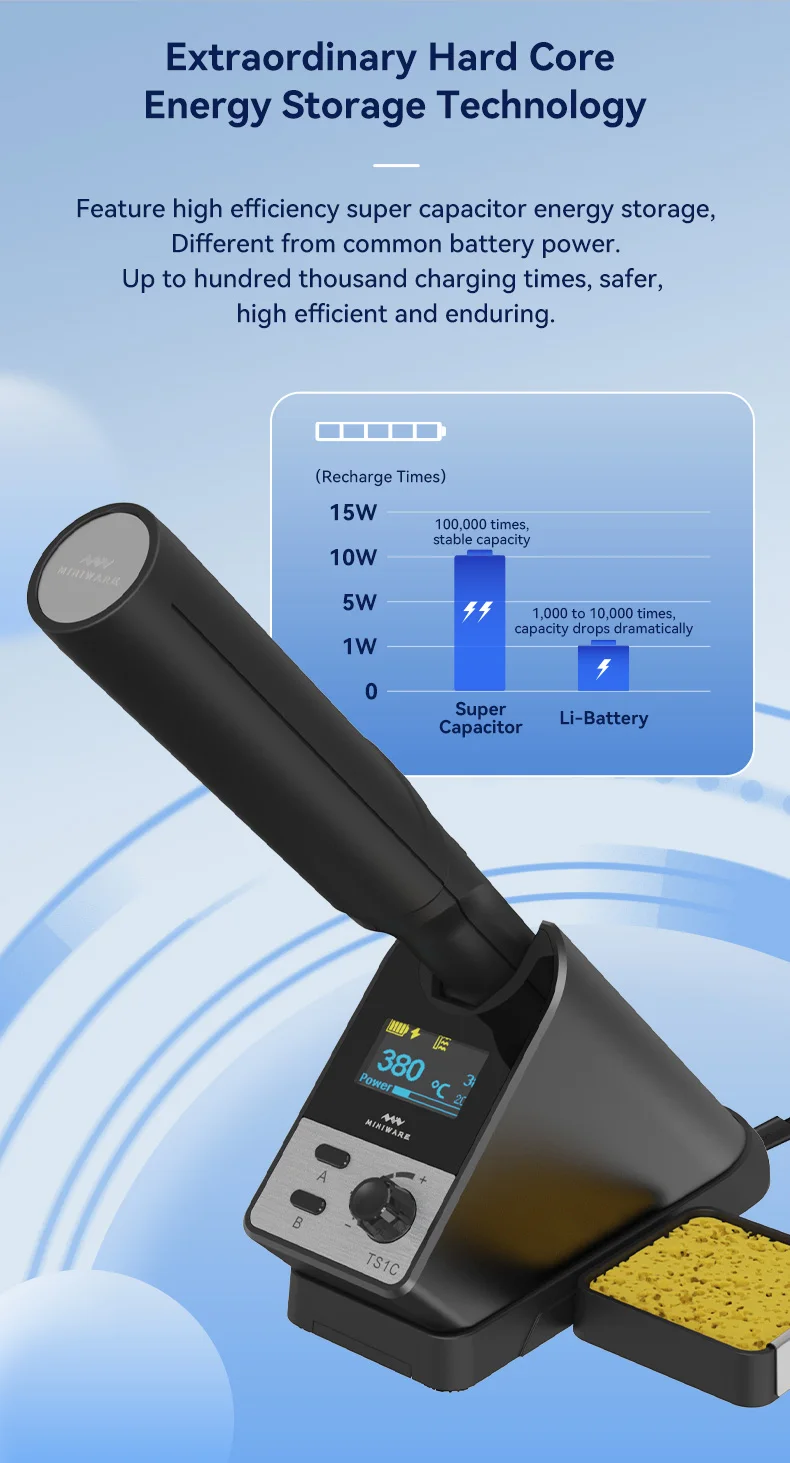

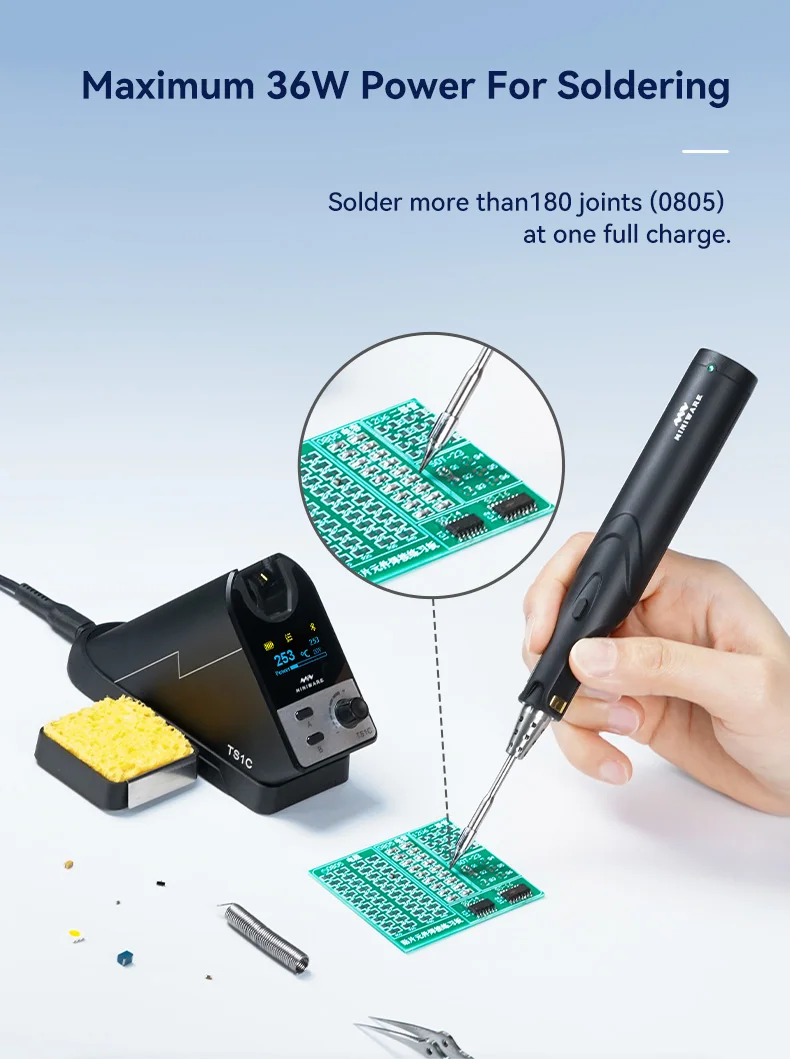

The Miniware TS1C Cordless Soldering Station offers hardcore high-tech wireless soldering experience. Its super capacitor energy storage technology allows for 10,000-level charge and discharge times. Enjoy true wireless soldering through its separate design and BLE4.2 Bluetooth communication technology for remote control and setting. With a standard PD2 power input of 20V and 45W, it can continuously solder over 180 solder joints with a single full charge at 36W output.
Specifications:

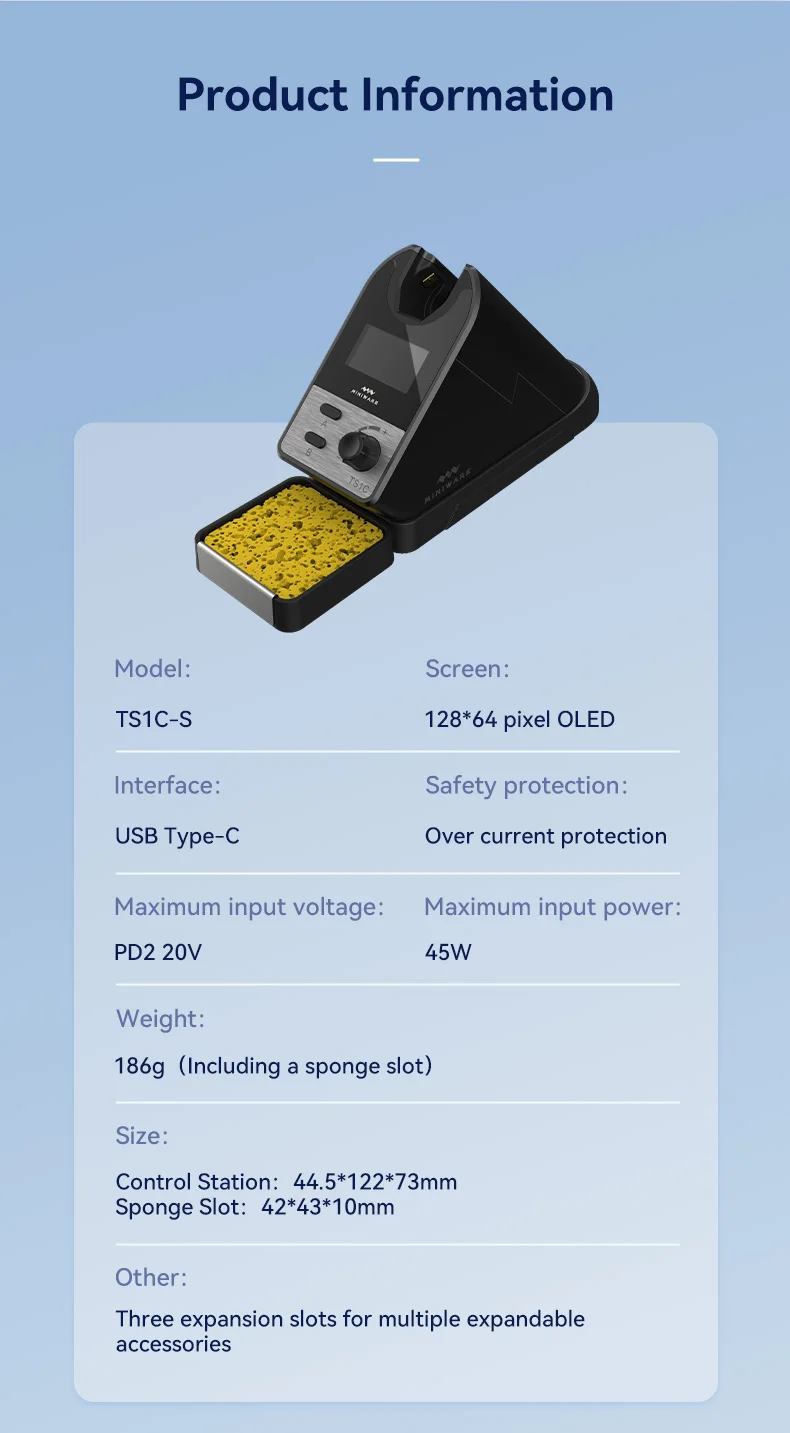

TS1C Control Base
- Model: TS1C-S

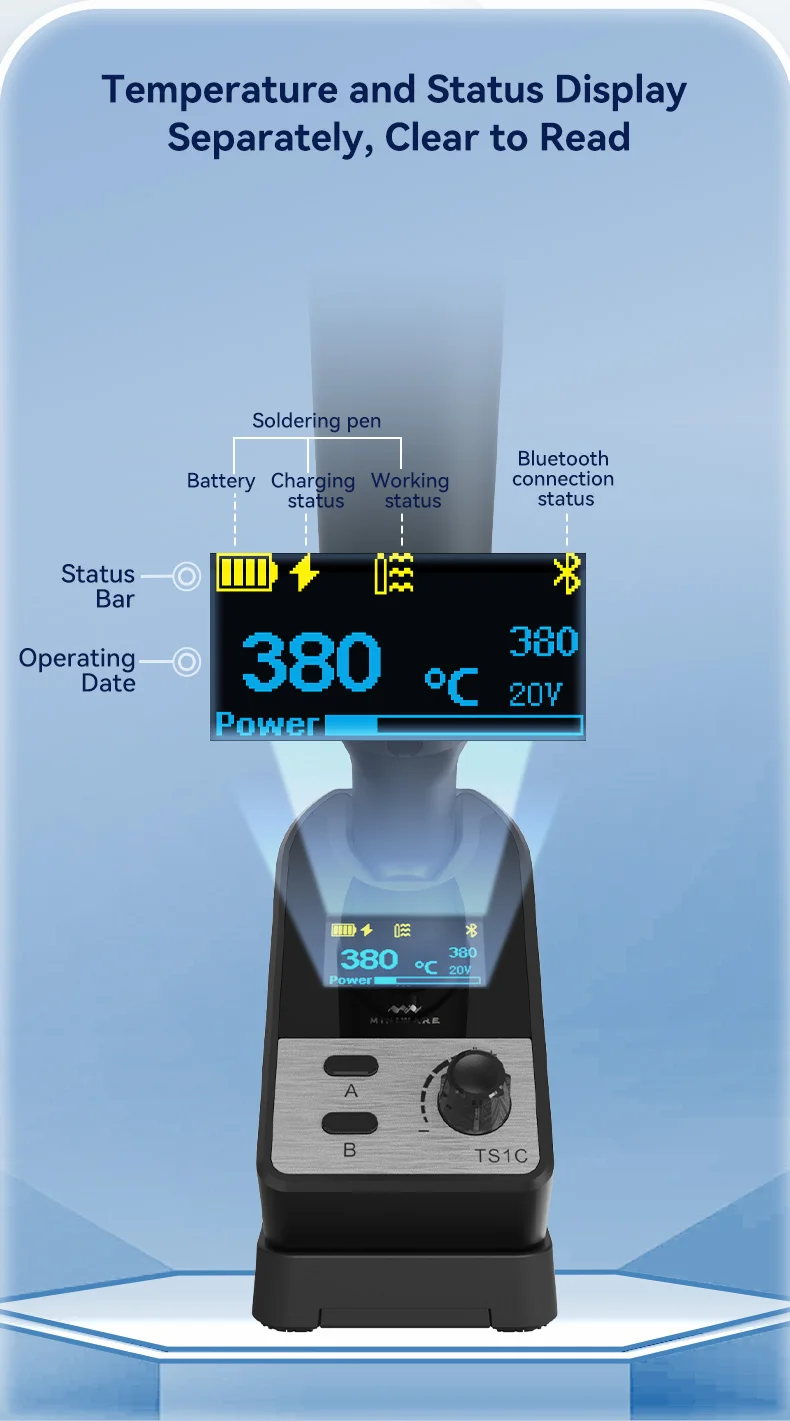

- Screen: 128*64 pixel monochrome OLED

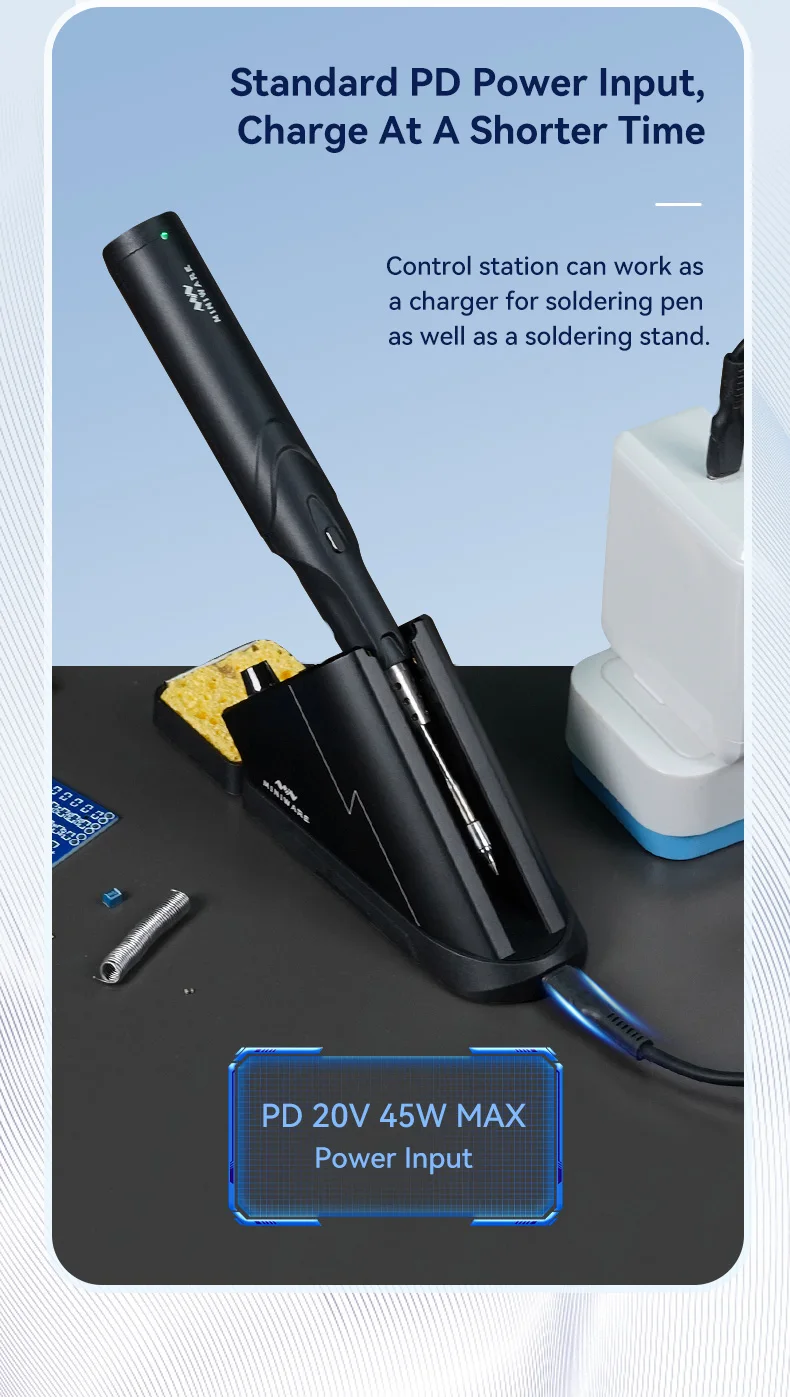

- Maximum Input Voltage: PD2 20V
- Maximum Input Power: 45W
- Safety Protection: Overcurrent protection
- Dimensions: Base 44.5*122*73mm, Sponge Slot 42*43mm
- Weight: 186g

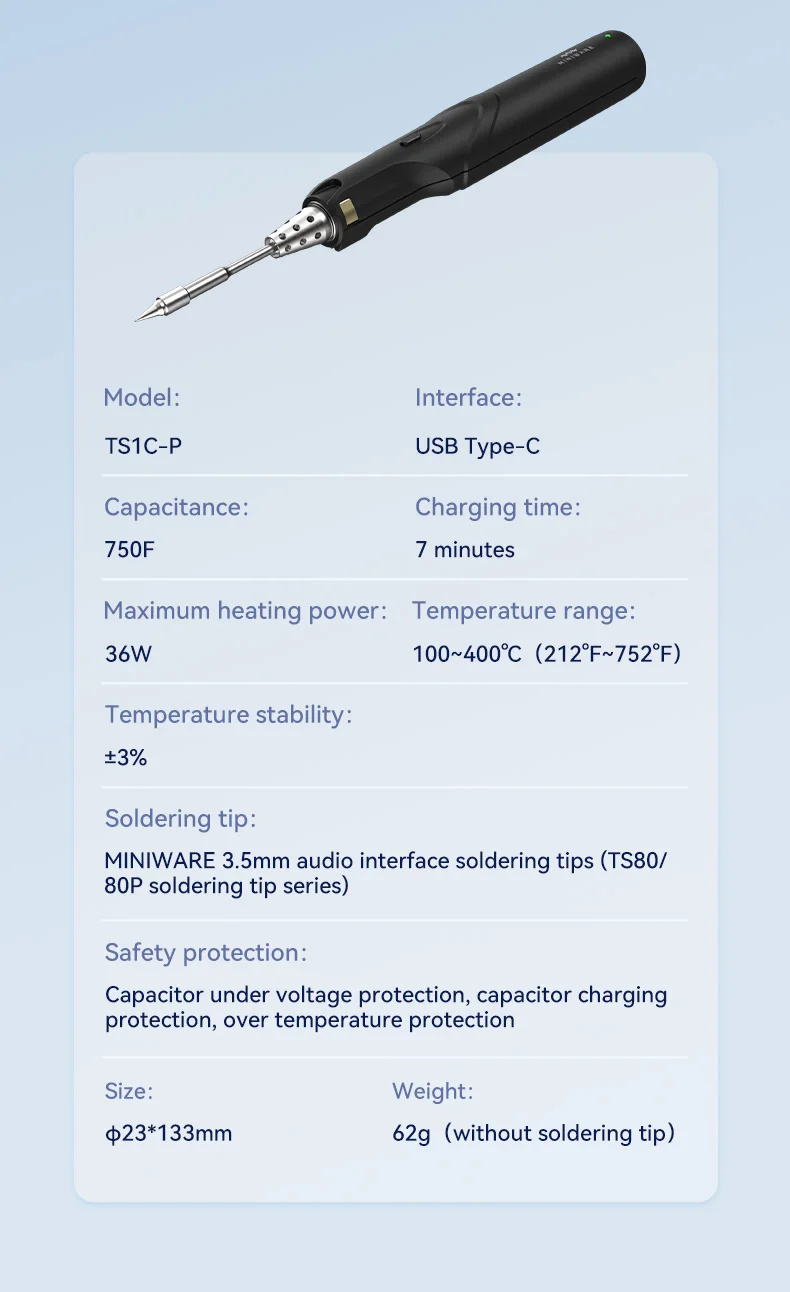

TS1C Soldering Iron Handle
- Model: TS1C-P
- Interface Type: USB Type-C

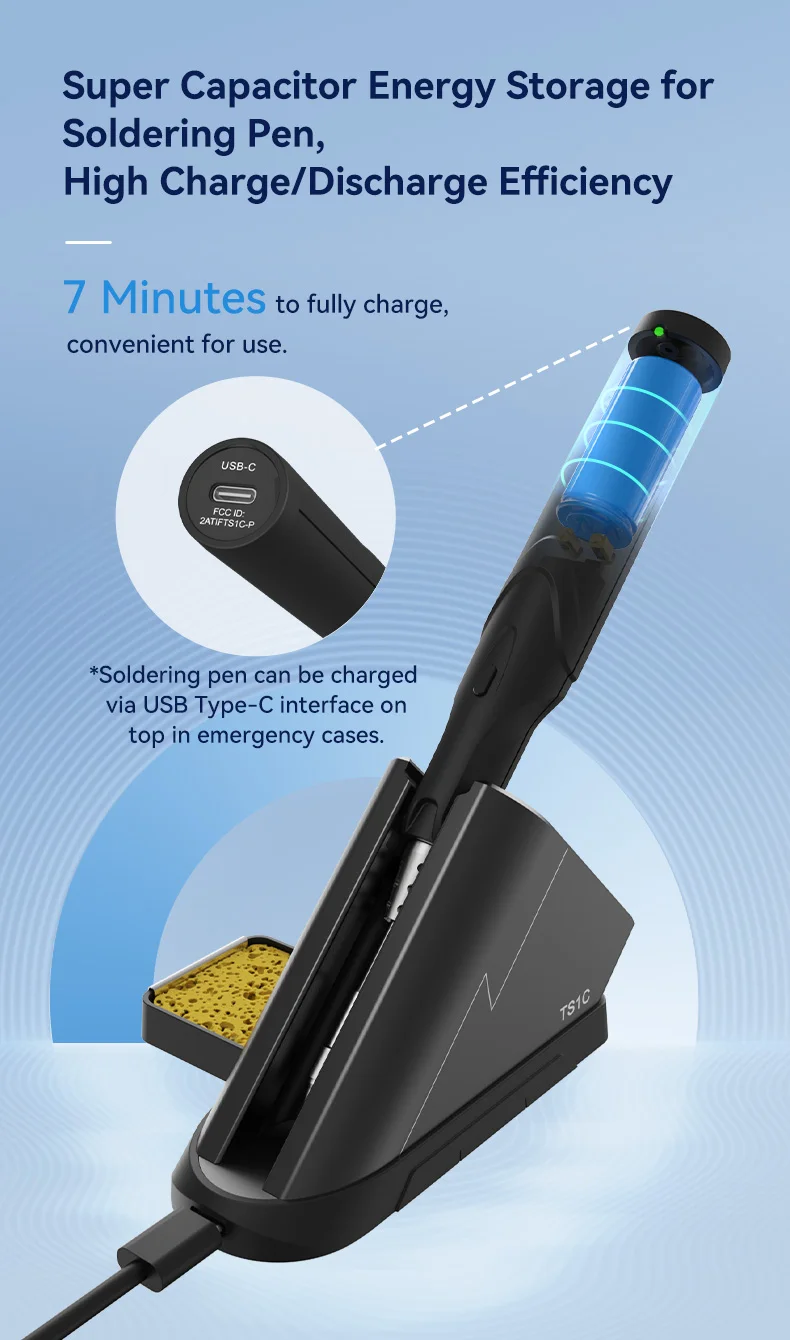

- Capacitance: 750F
- Charging Time: 7 minutes
- Maximum Heating Power: 36W
- Temperature Range: 100°C~400°C (212°F~752°F)
- Temperature Stability: ±3%

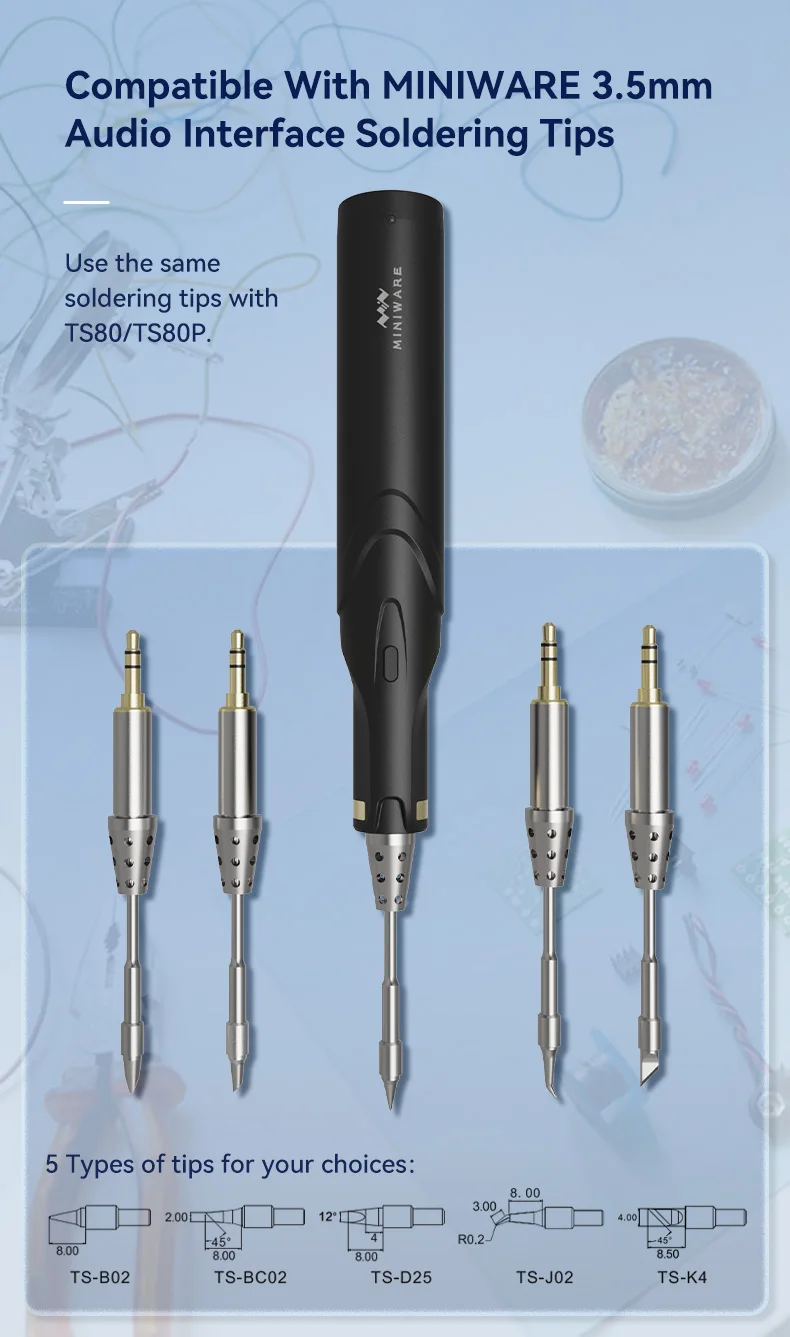

- Soldering Tip: MINWARE 3.5mm audio jack soldering tip
- Safety Protection: Low voltage protection for the capacitor, capacitor charging protection, over-temperature protection
- Dimensions: 23*133mm
- Weight: 62g

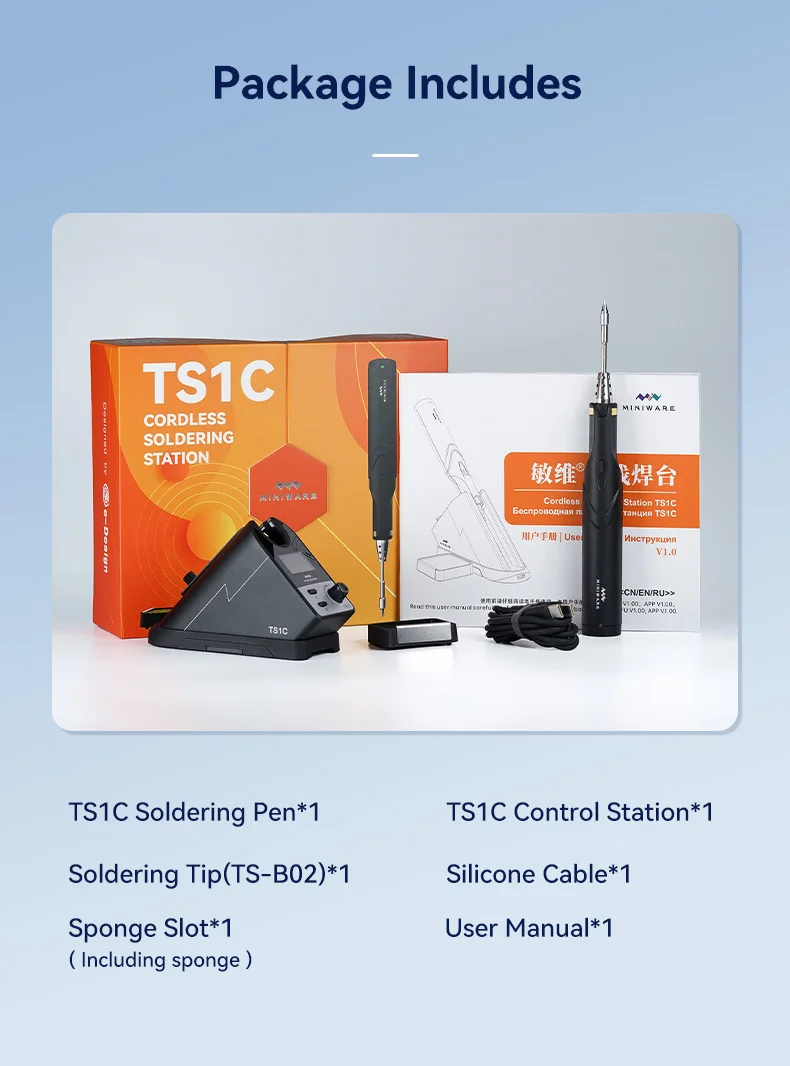

Includes:
1x TS1C Soldering Pen
1xTS1C Control Station
1x Soldering Tip (TS-B02)
1x Silicone Cable
1x Sponge Slot (including sponge)
1x User Manual
