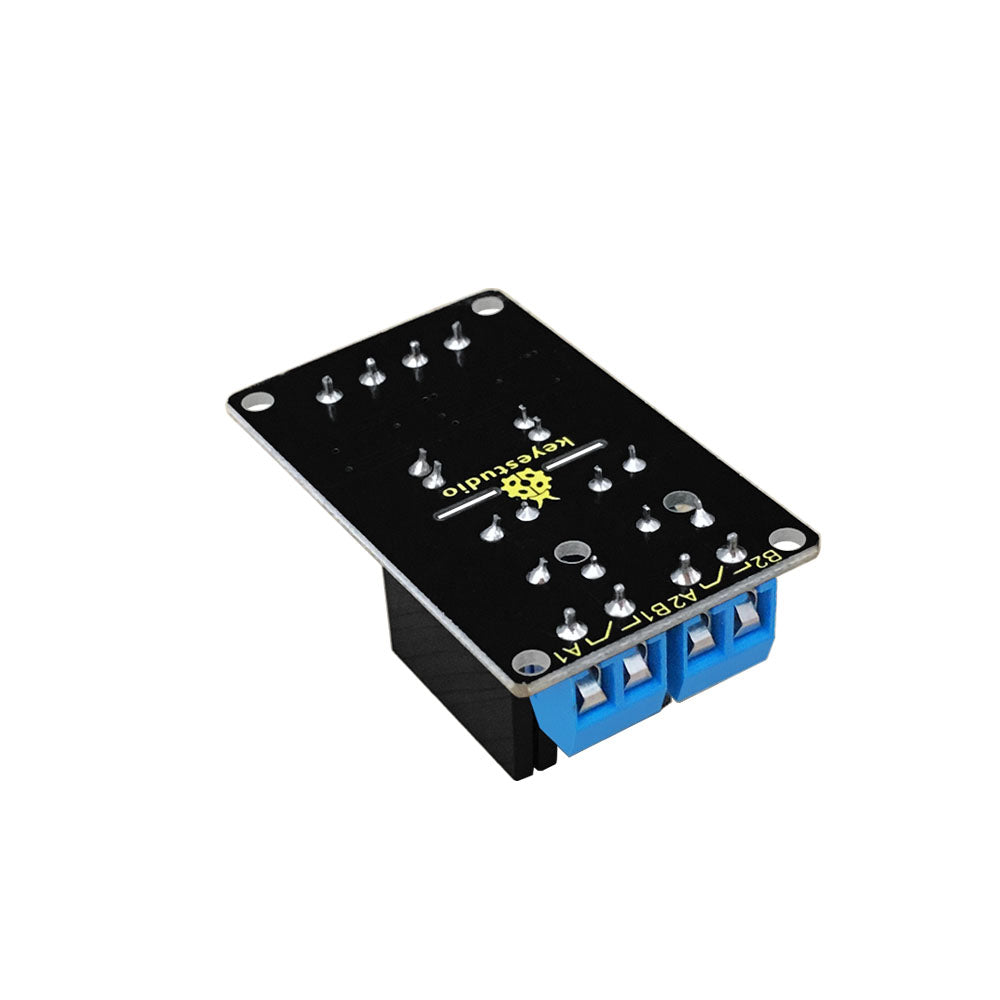

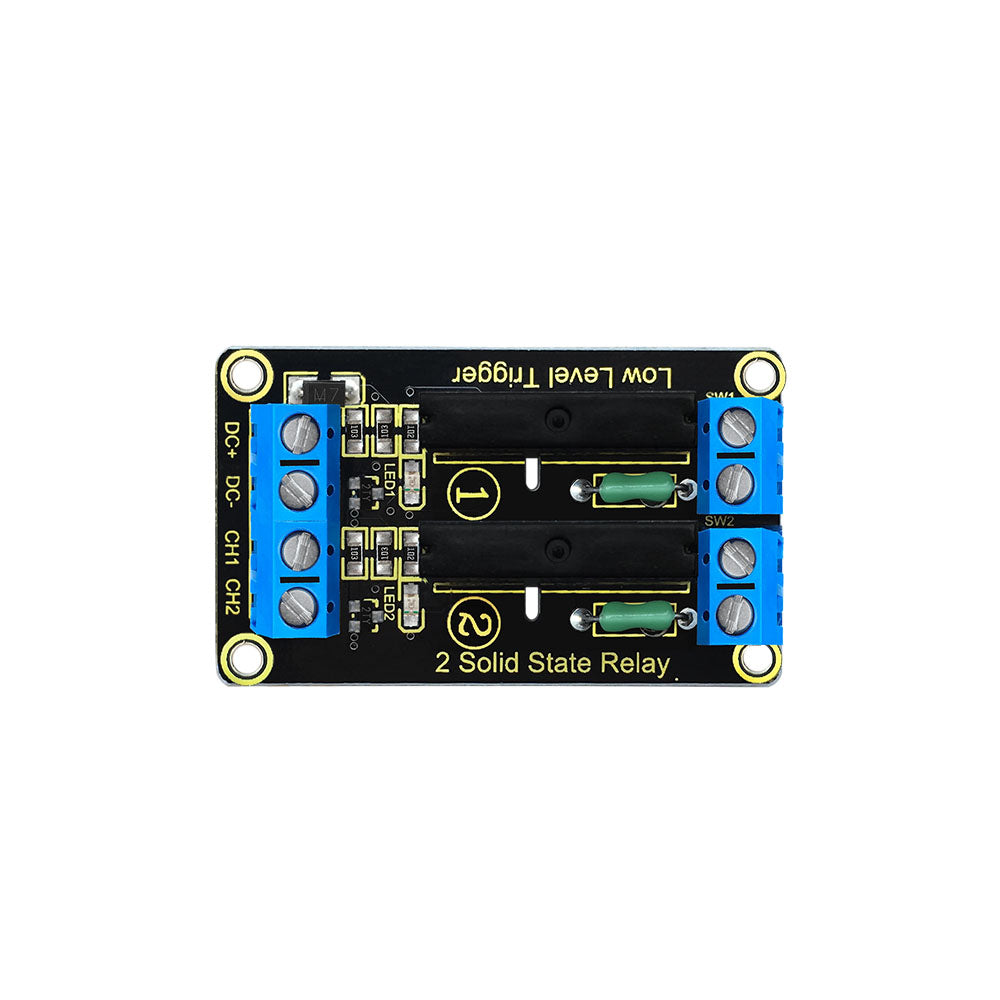

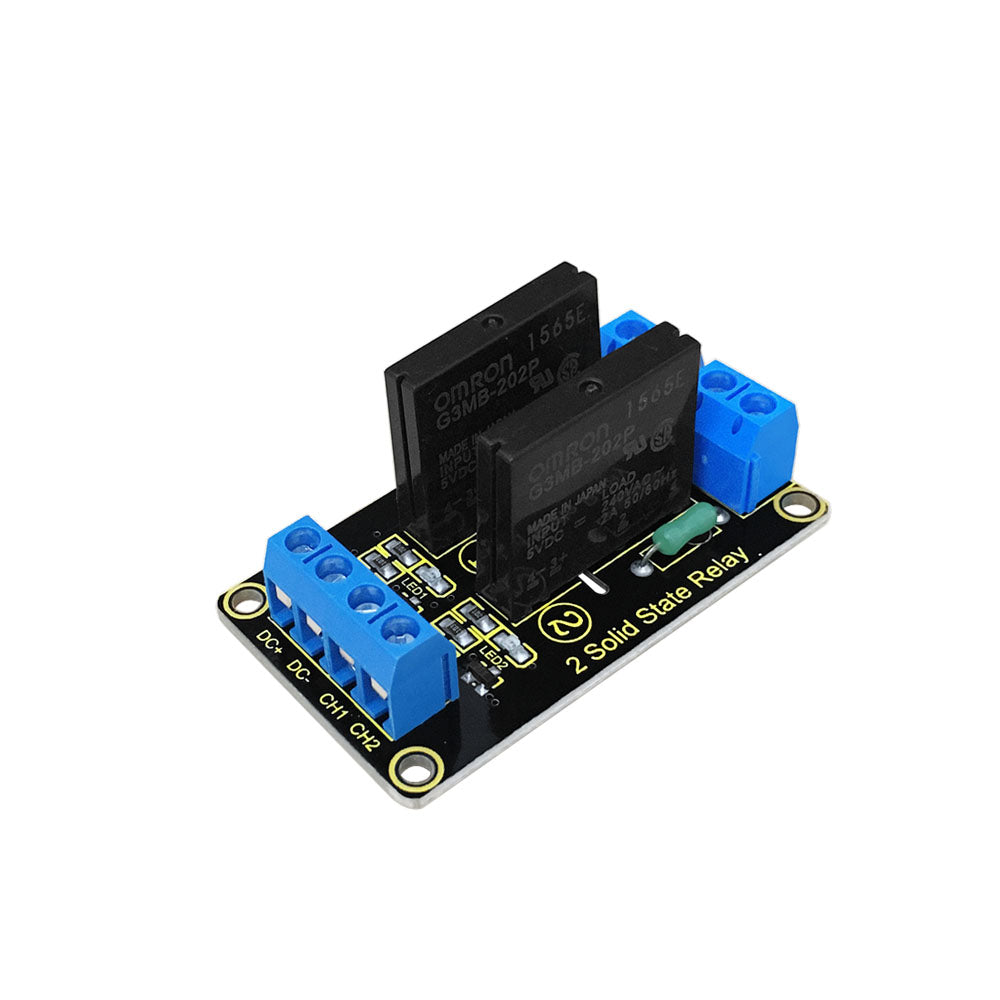

The Keyestudio Two Channel Solid State Relay Module operates with active LOW input signals, turning on when the control voltage is between 0-1.5 V and off at 3-5 V. Utilizing solid-state components, this relay offers enhanced reliability over traditional electromagnetic relays, featuring contactless switching, extended lifespan, rapid response, and reduced susceptibility to external interference. Ideal for applications requiring durable and efficient switching solutions.

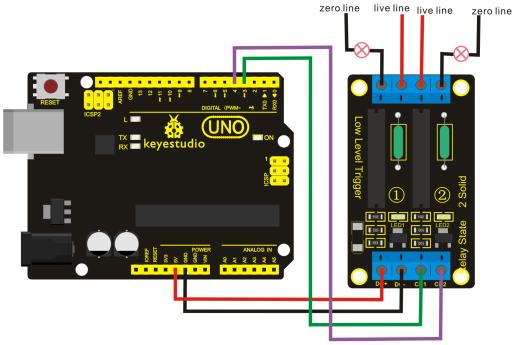

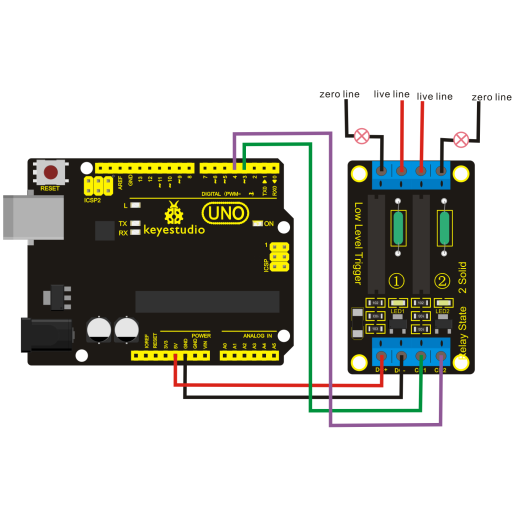

The output control terminal of keyestudio solid-state relay must be connected to the circuit, can only be AC (Alternating Current) , so that the solid state relay can be disconnected normally.
Parameters
|
Voltage |
Static Current |
Working Current |
Trigger Voltage |
Trigger Current |
| Channel 1 |
DC 5V |
0mA |
12.5mA |
0-1.5V |
2mA |
| Channel 2 |
DC 5V |
0mA |
12.5mA |
0-1.5V |
2mA |
