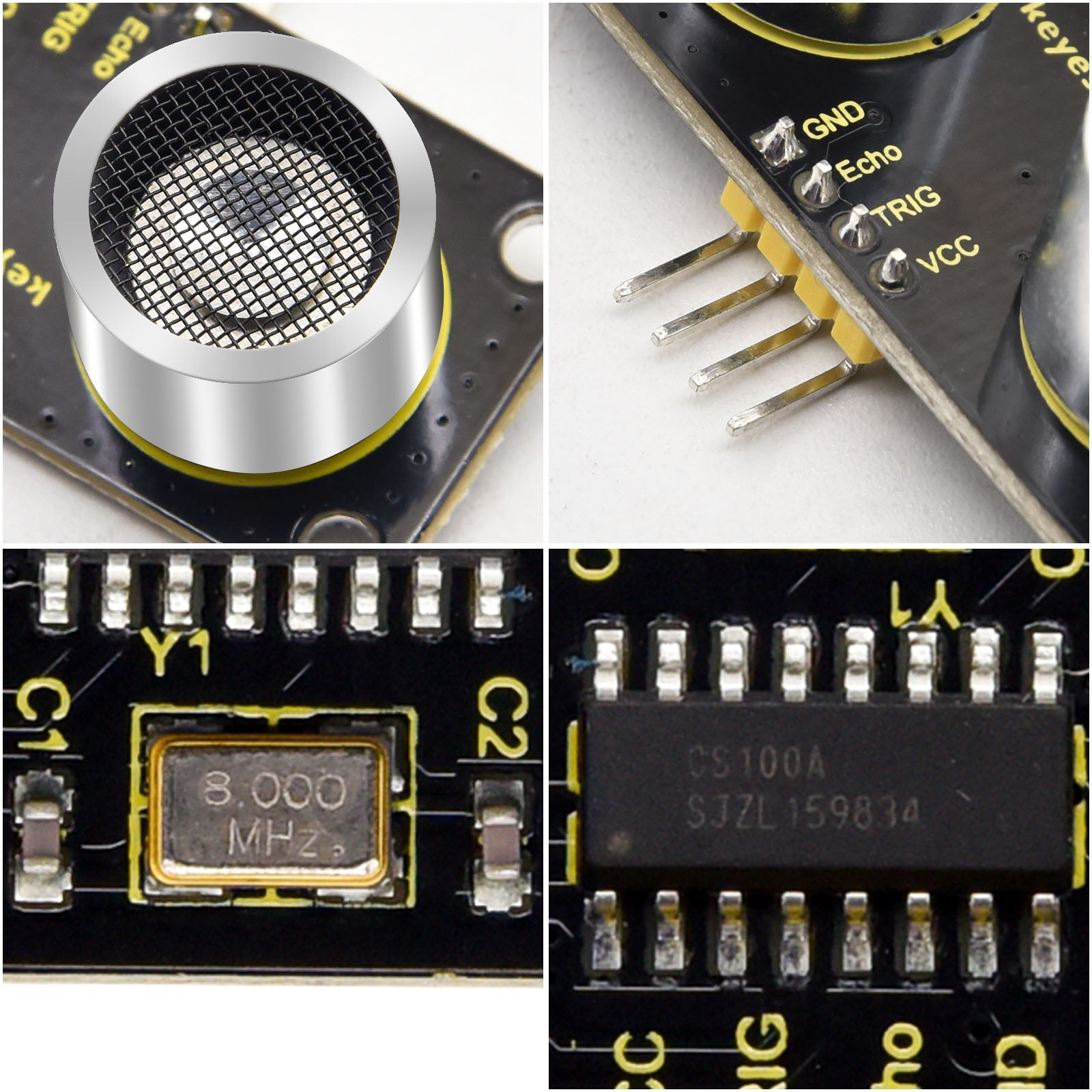

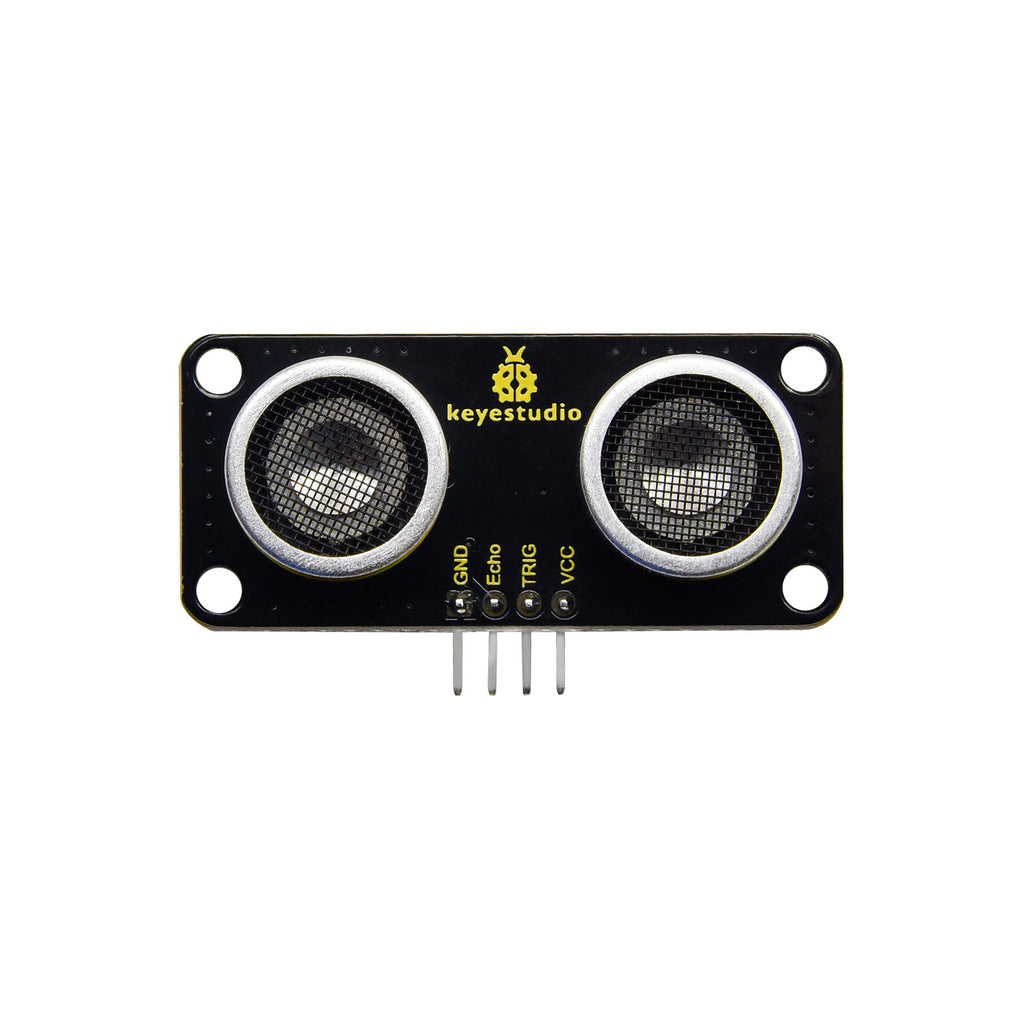

The Keyestudio SR01 CS100A Ultrasonic Sensor V3 is an affordable and precise distance measurement module compatible with 3.3V and 5V systems. This makes it more versatile compared to the HC-SR04. It uses the CS100A chip to emit high-frequency ultrasonic signals, which reflect off obstacles and return to the sensor. By calculating the time difference between sending and receiving these signals, it accurately measures distances up to 3 meters, with a blind zone of less than 4 cm. This sensor is ideal for applications requiring reliable obstacle detection and distance sensing.
Specification
- Working Voltage: DC 3.3V-5V
- Working Current: 50mA－100mA
- Working Frequency: 40KHz
- Max Power: 0.5W
- Max Range: 3m
- Min Range: less than 4cm
- Measuring Angle: less than 15 degree
- Trigger Input Signal: 10µS TTL pulse

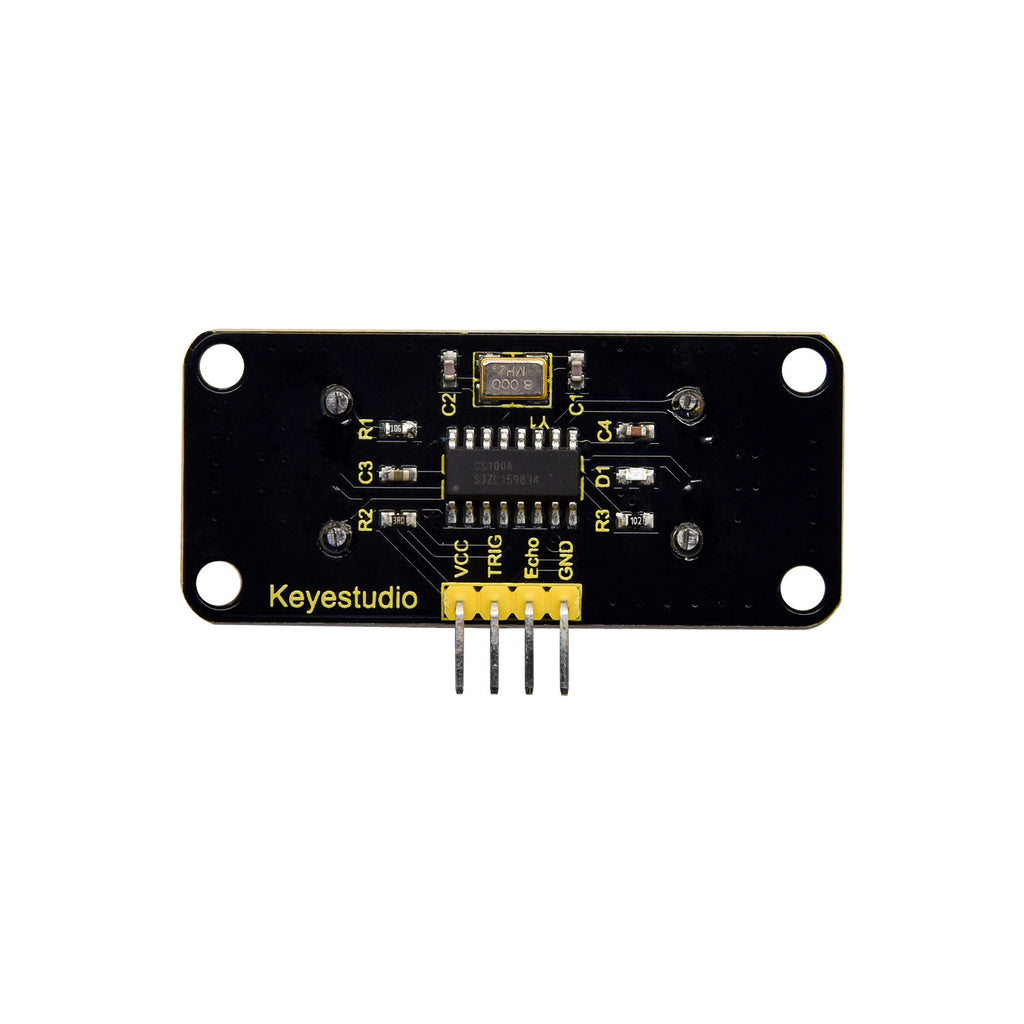

- Interface：4 pin port with 2.54mm space
- Position Holes：the diameter is 3mm
- Working Temperature： -10℃ - +60℃

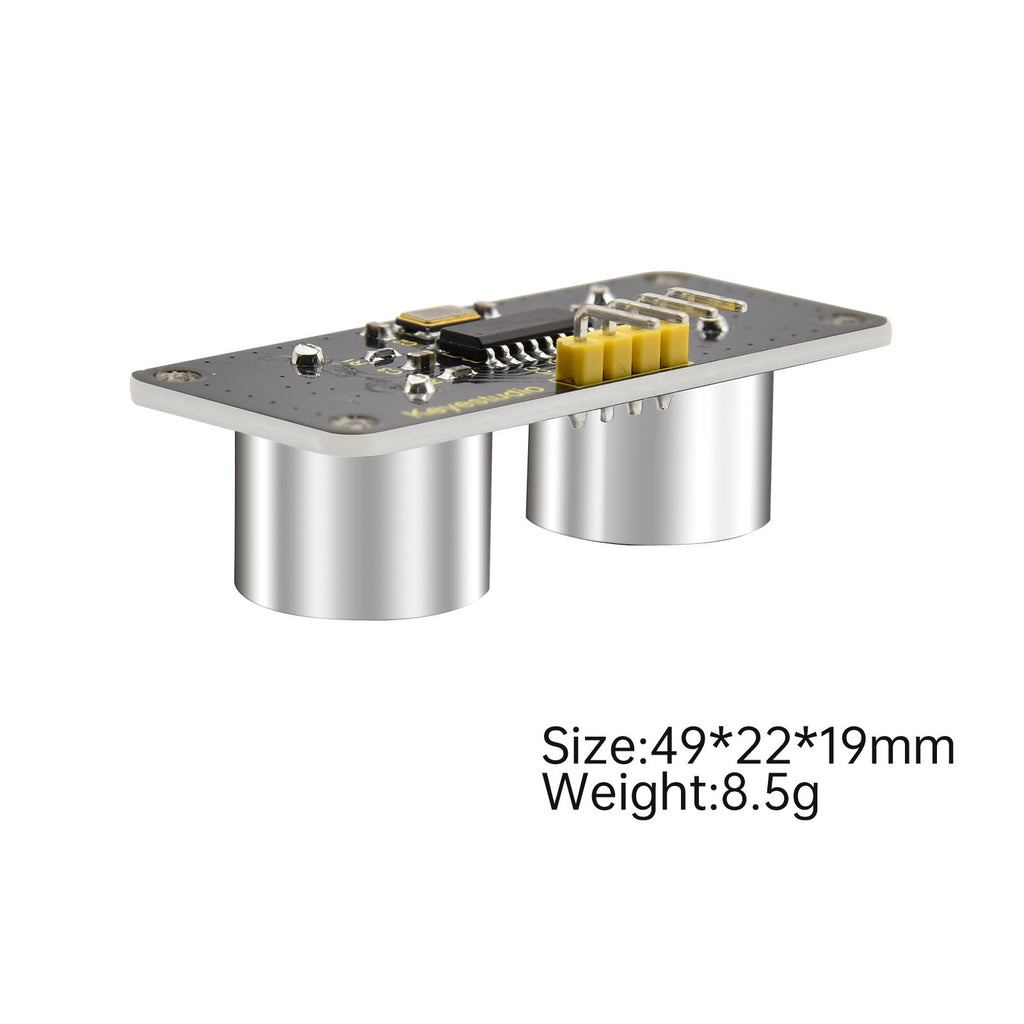

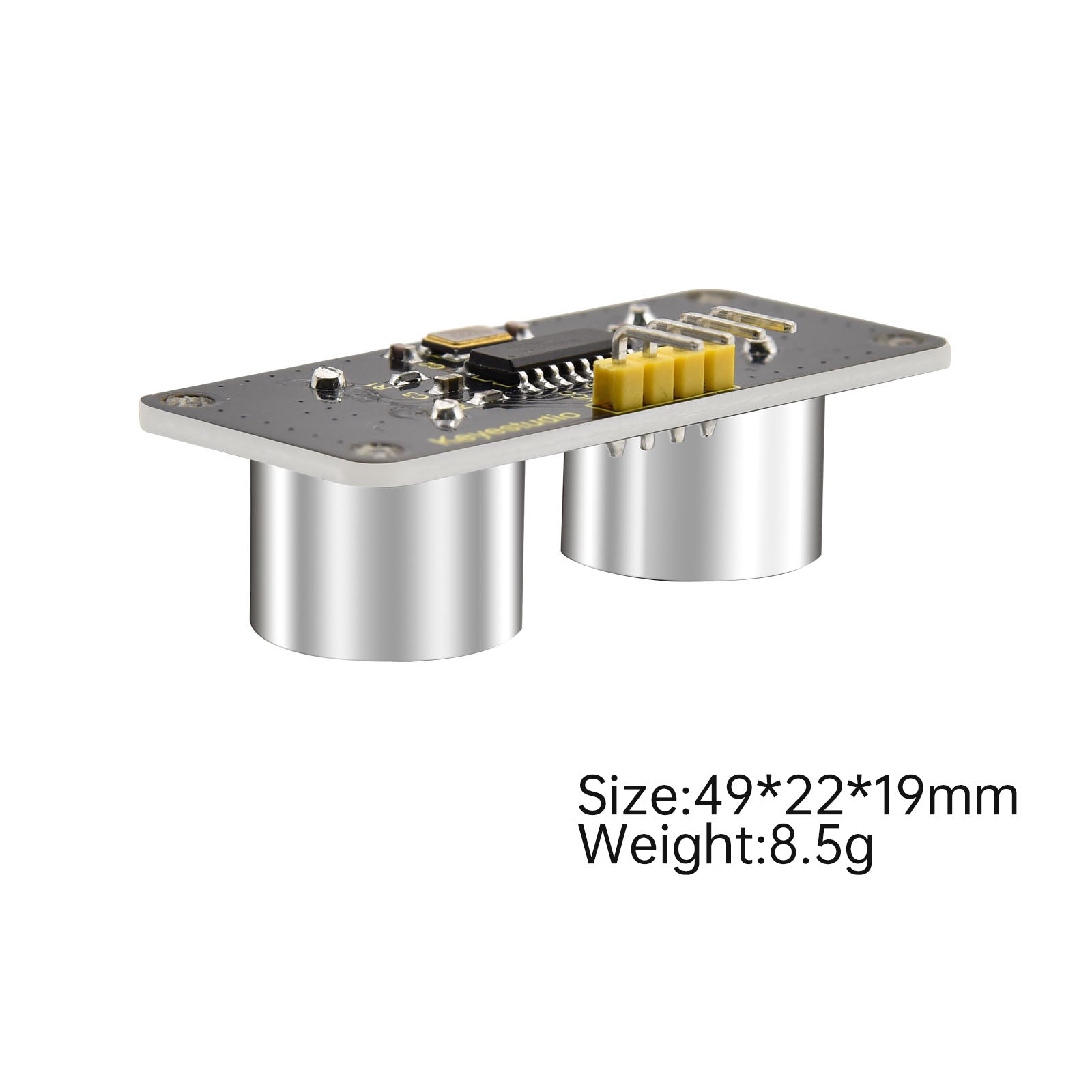

- Size：49mm*22mm*19mm
- Environmental attributes: ROHS
