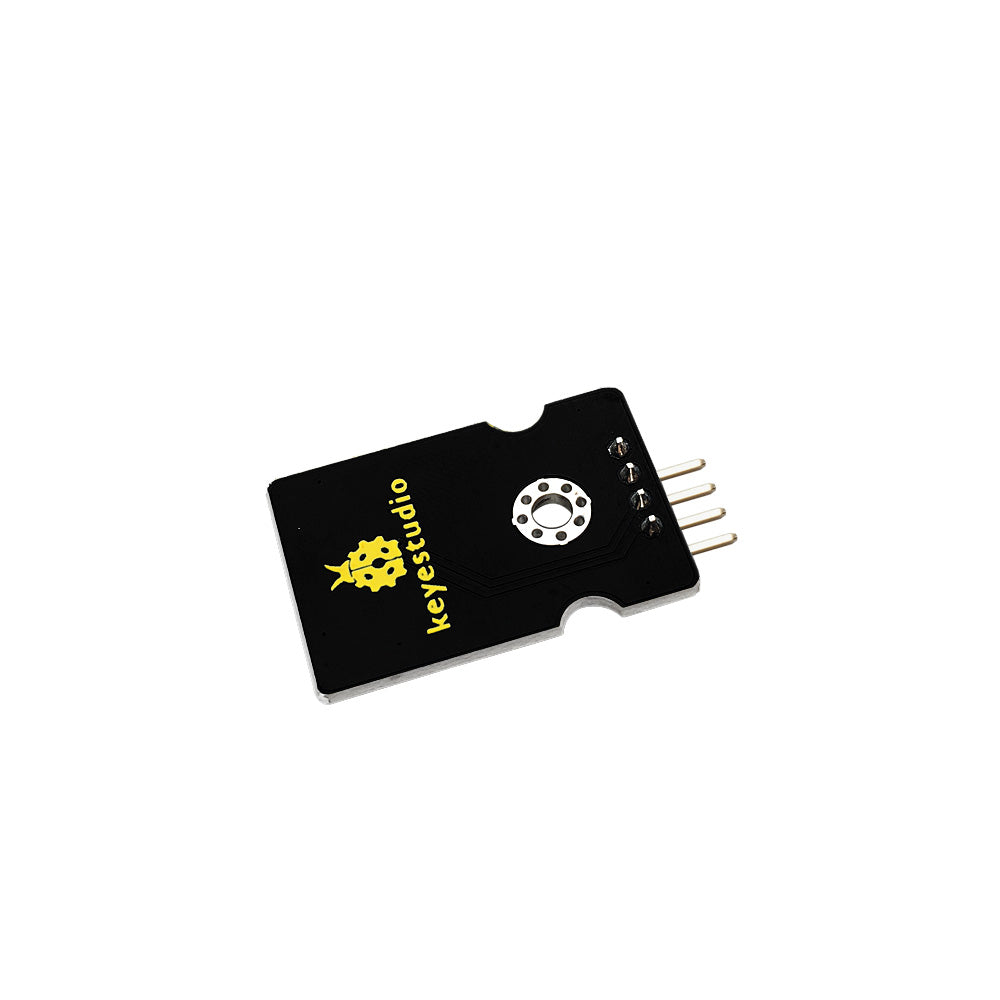

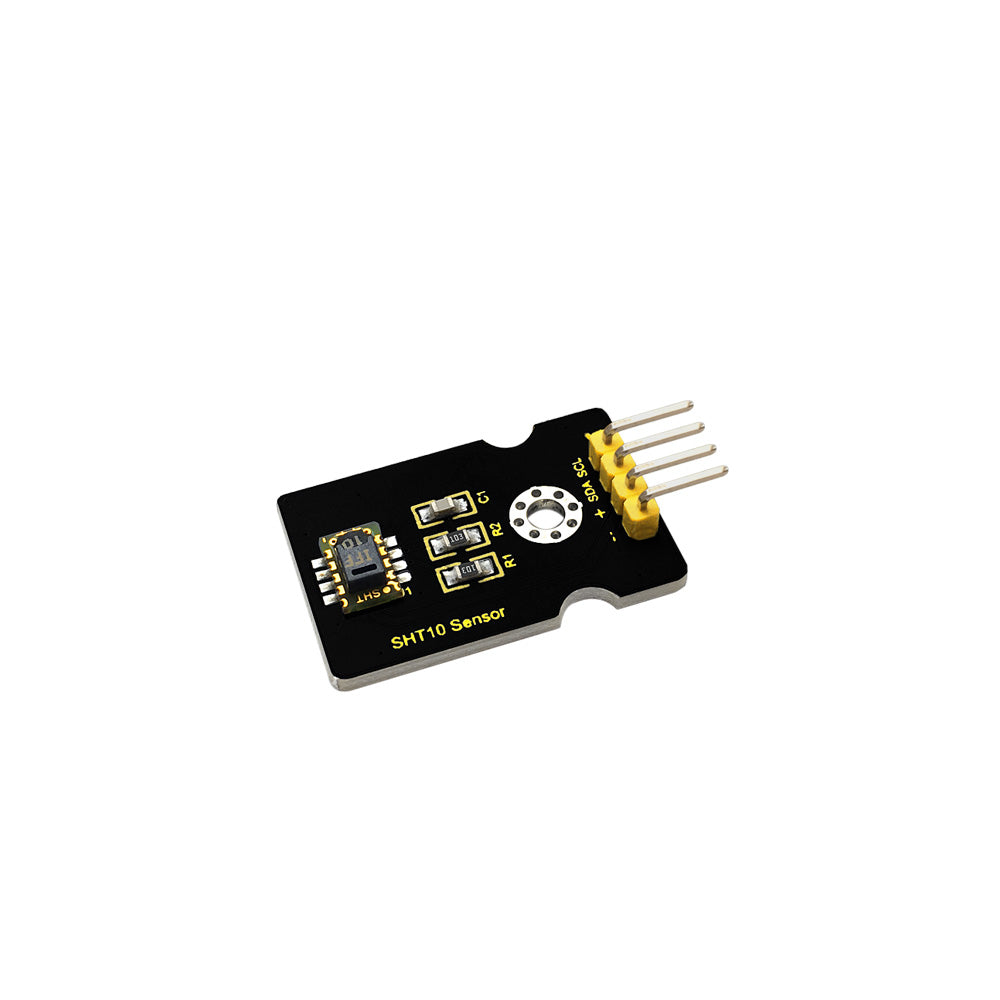

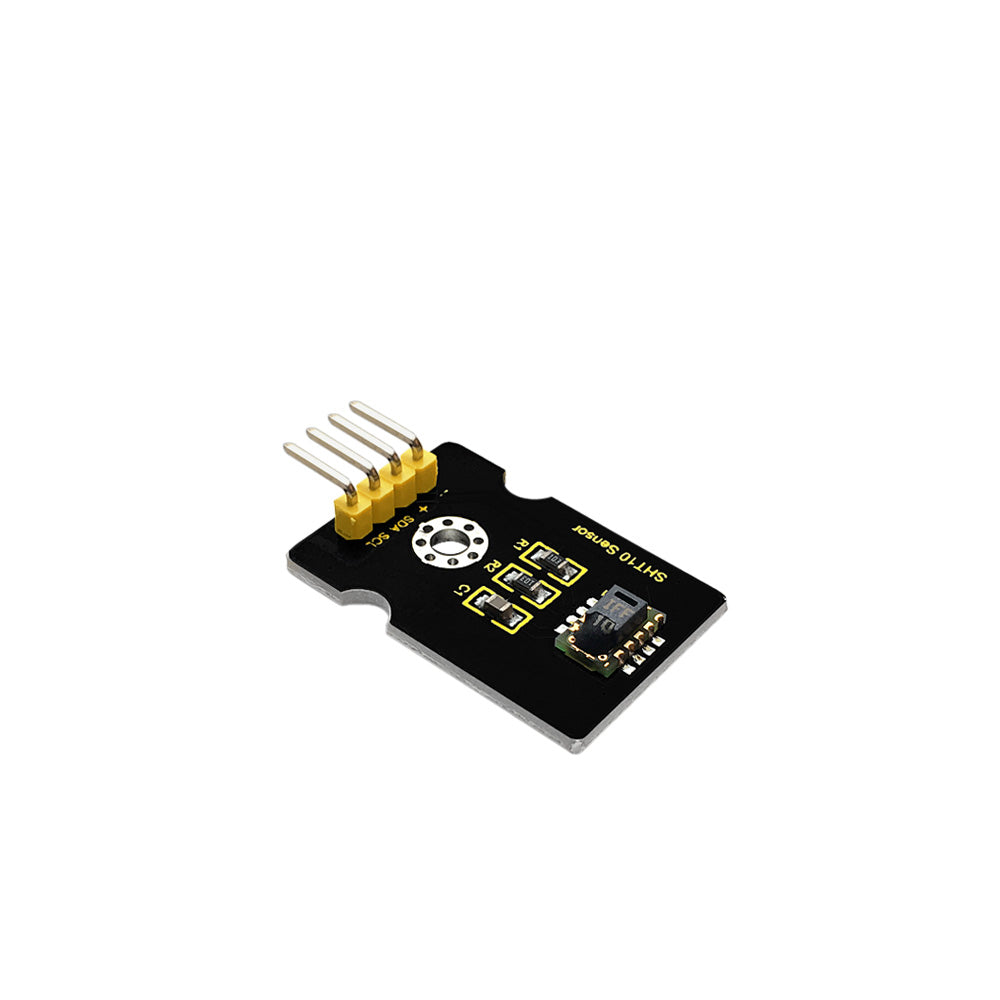

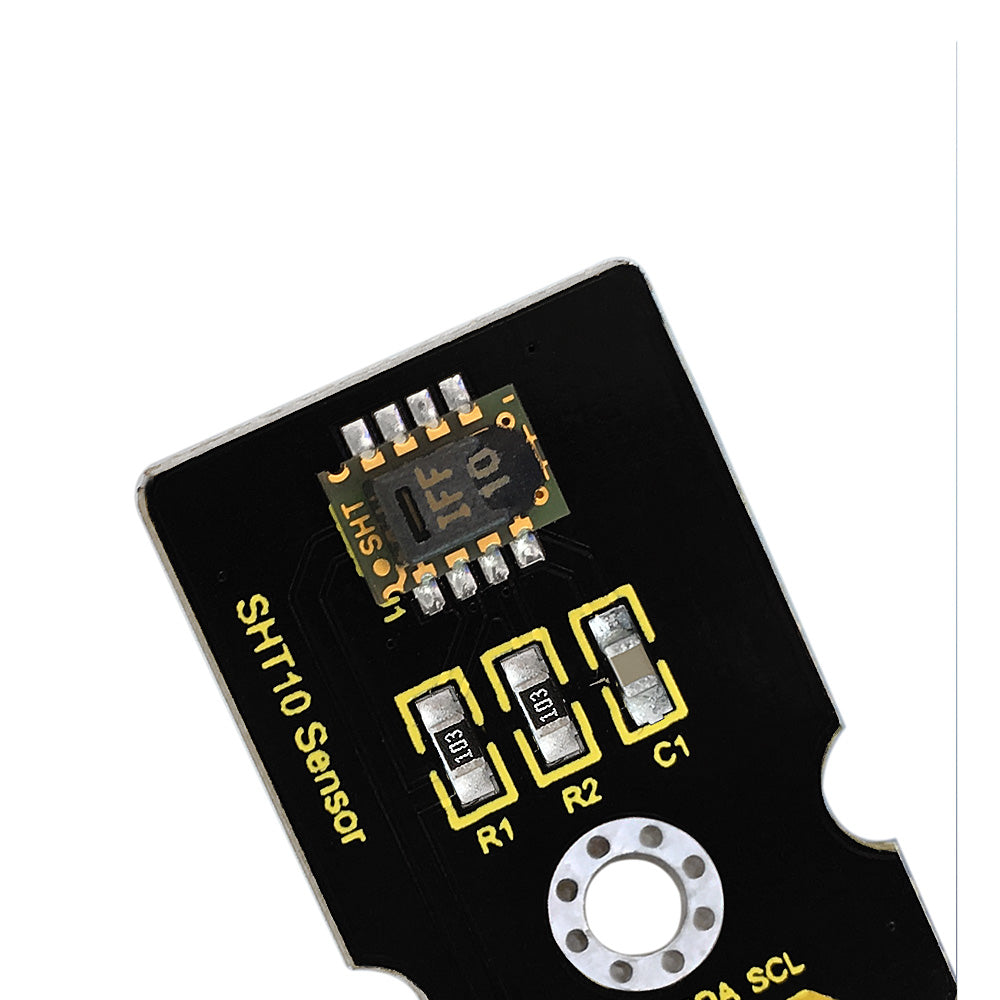

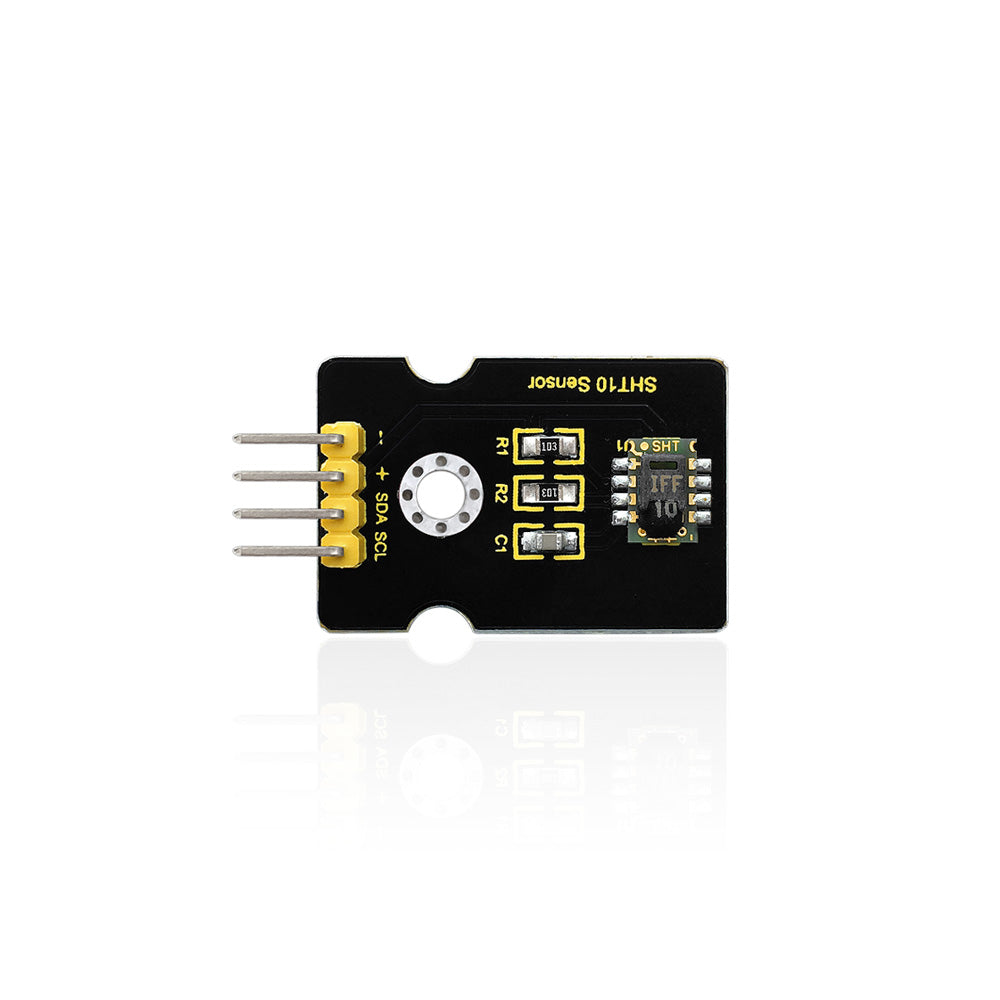

The Keyestudio SHT10 Digital Temperature Sensor integrates temperature and humidity sensing with calibrated digital outputs. Employing patented CMOSens® micromachining technology, it ensures high reliability and long-term stability. The sensor features full-scale calibration and dual digital interfaces for direct microcontroller connection. It offers rapid response, low power consumption, strong anti-interference, and precise dew point measurement, making it suitable for diverse applications requiring accurate environmental monitoring.
Specification
- Working Voltage：5V（DC）
- Interface：4PIN
- Humidity Measurement Range：0---100%RH
- Humidity Measurement Accuracy：±4.5%RH（20%---80%RH）
- Humidity Measurement Resolution：0.03%RH
- Temperature Measurement Range：-40---123.8℃
- Temperature Measurement Accuracy：±0.5℃ error（in 25℃), ±0.9℃ error (among 0---40℃）
- Temperature Measurement Resolution：0.01℃
