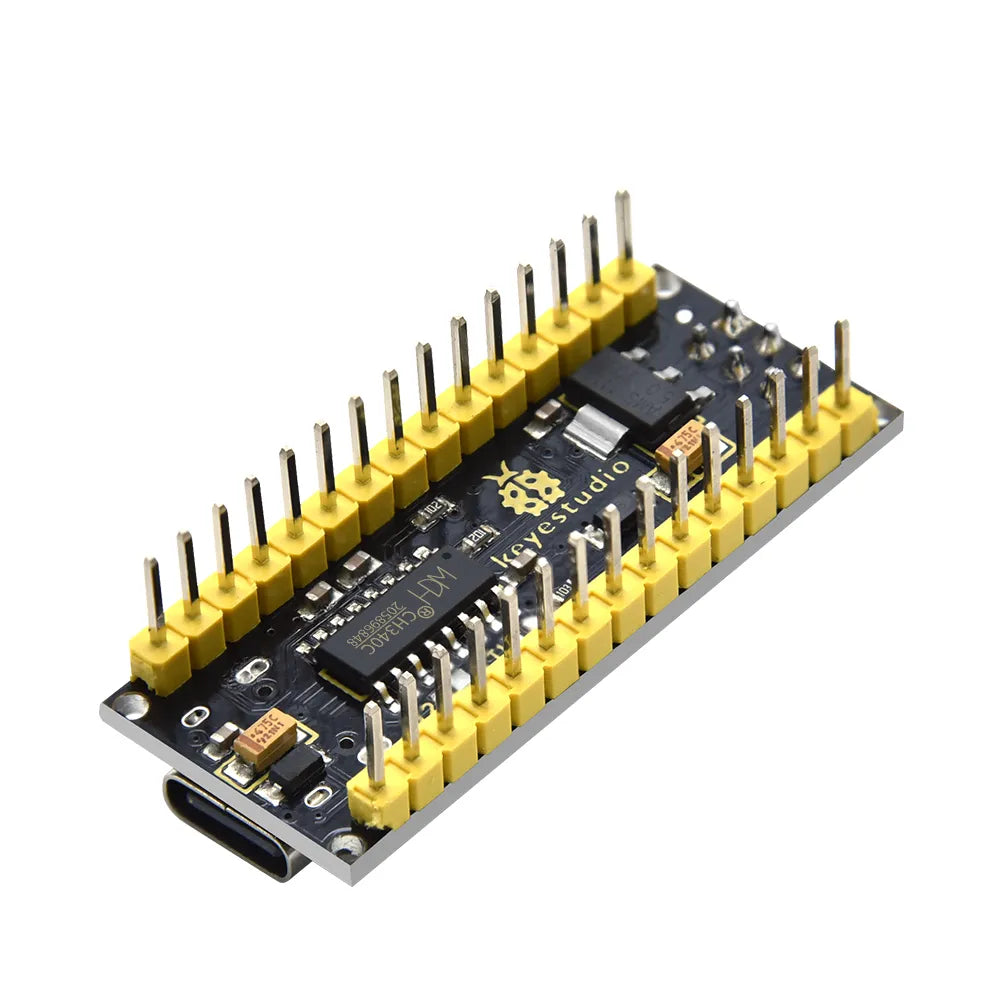

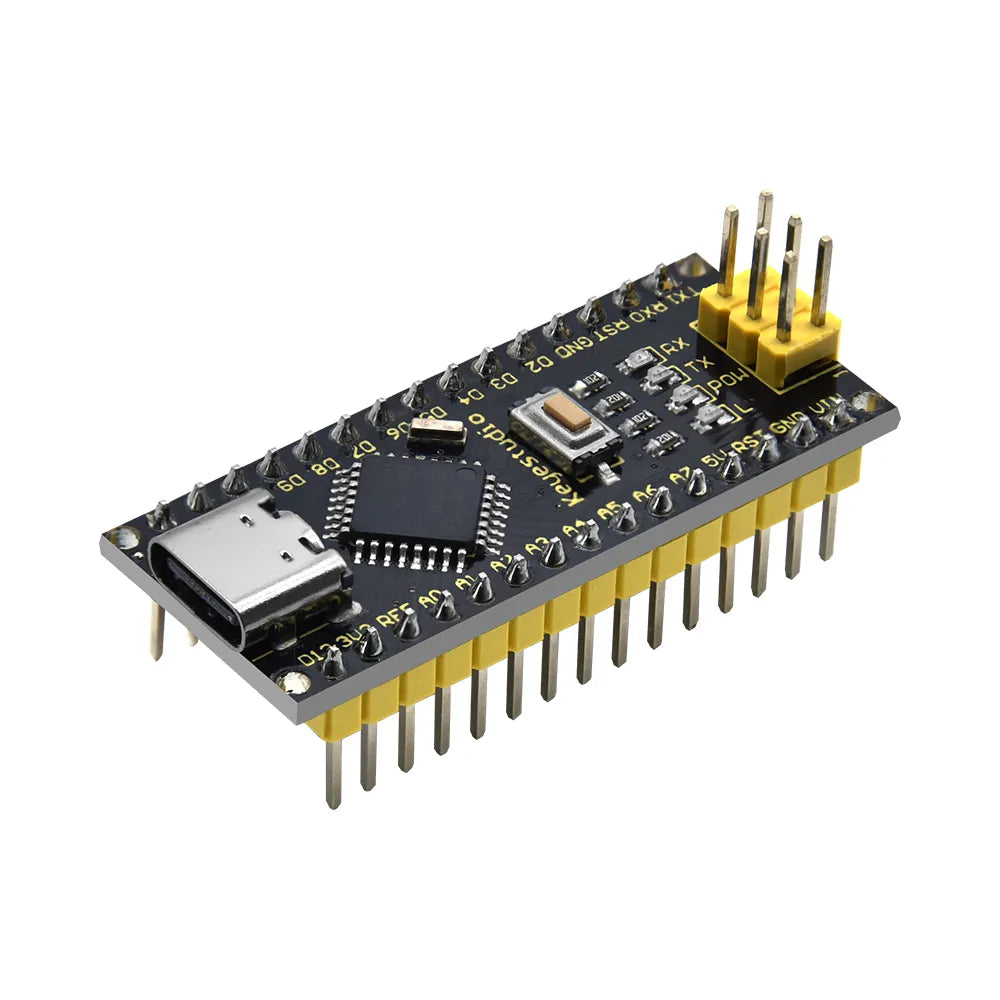

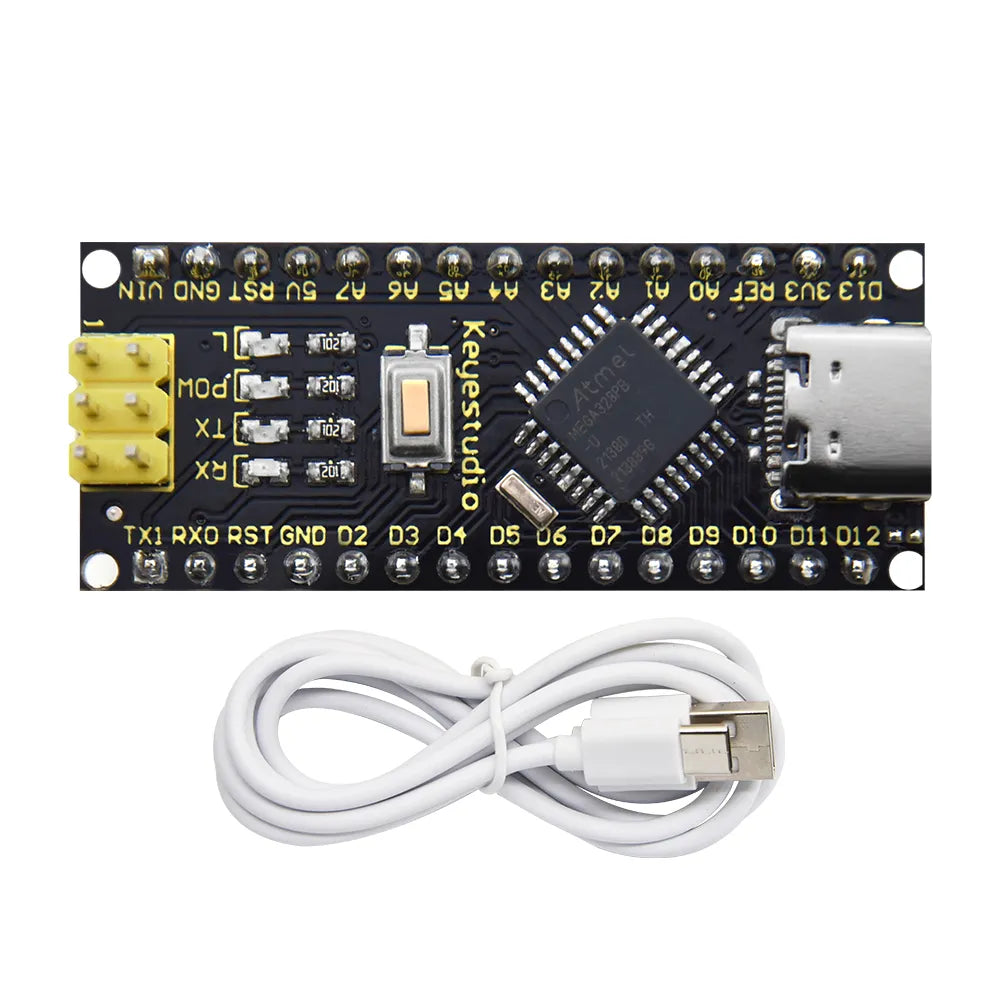

The Keyestudio NANO PLUS Development Board features the ATMEGA328PB-AU processor core, identical to the official Arduino Nano but enhanced with a CH340C USB-to-serial chip and driver. It includes 14 digital I/O pins (6 PWM-capable), 8 analog inputs, a 16 MHz crystal oscillator, an ICSP interface for programming, and a reset button. Power can be supplied via a USB Type-C cable or through VIN/GND ports (DC 7-12V), offering versatile and reliable option for embedded applications.

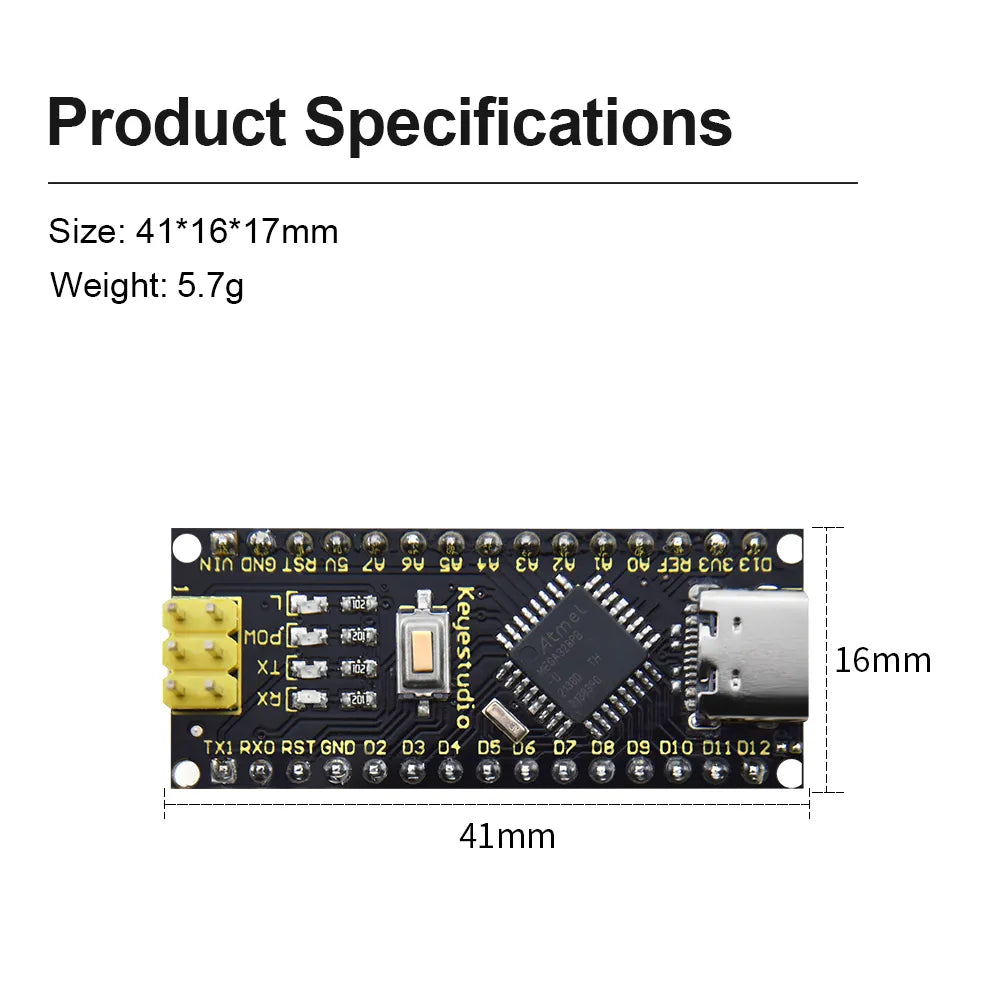

Specification
- Microcontroller: ATMEGA328PB-AU
- Operating Voltage: 5V
- Input Voltage (recommended): DC 7-12V

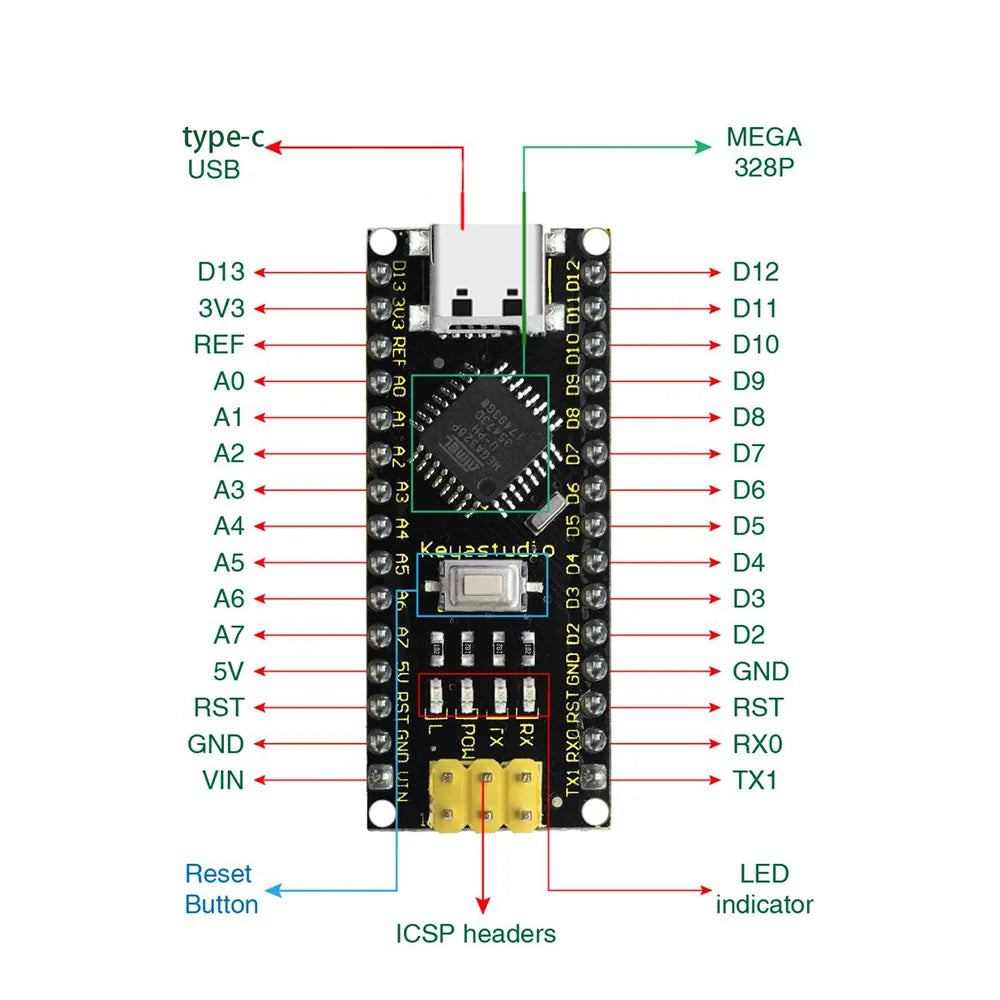

- Digital I/O Pins: 14 (D0-D13)
- PWM Digital I/O Pins：6 (D3 D5 D6 D9 D10 D11)
- Analog Input Pins: 8(A0-A7)
- DC Current per I/O Pin: 40 mA
- Flash Memory: 32 KB of which 2 KB used by bootloader
- SRAM:2 KB
- EEPROM: 1 KB
- Clock Speed:16 MHz
- LED_BUILTIN:D13
