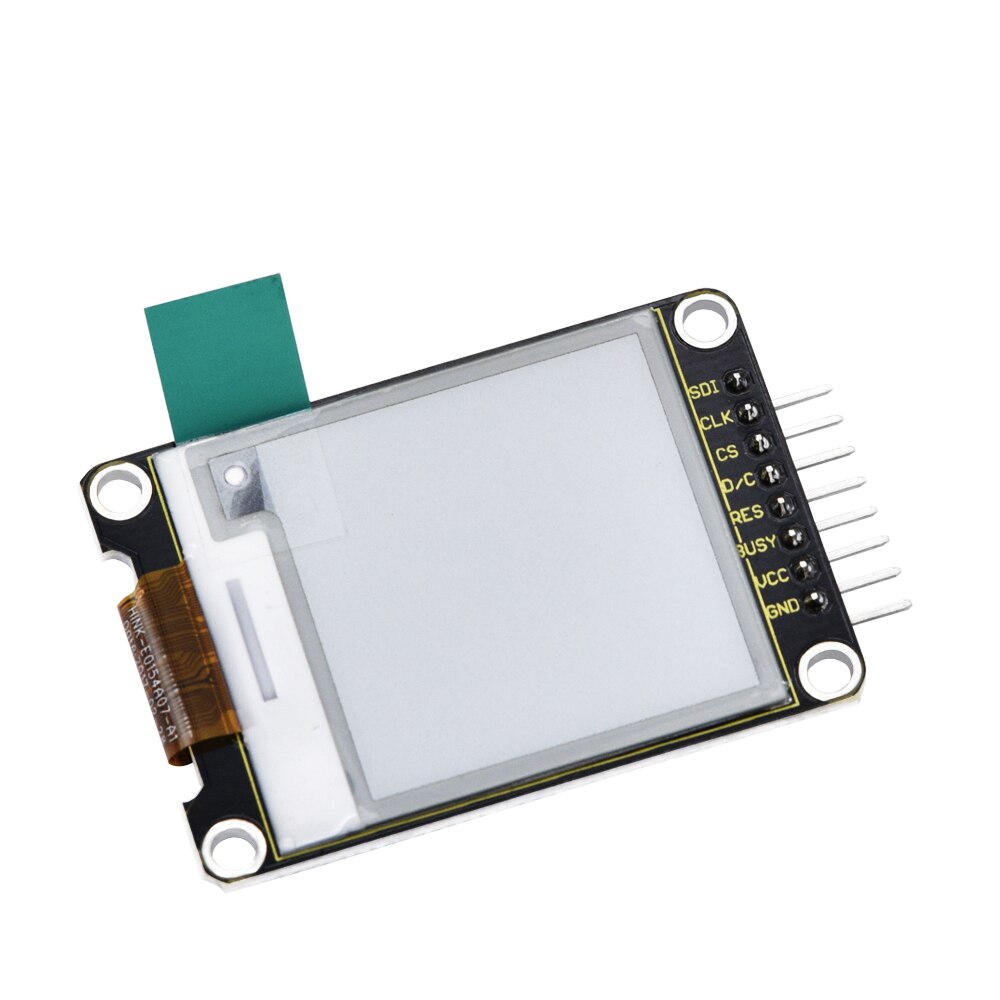

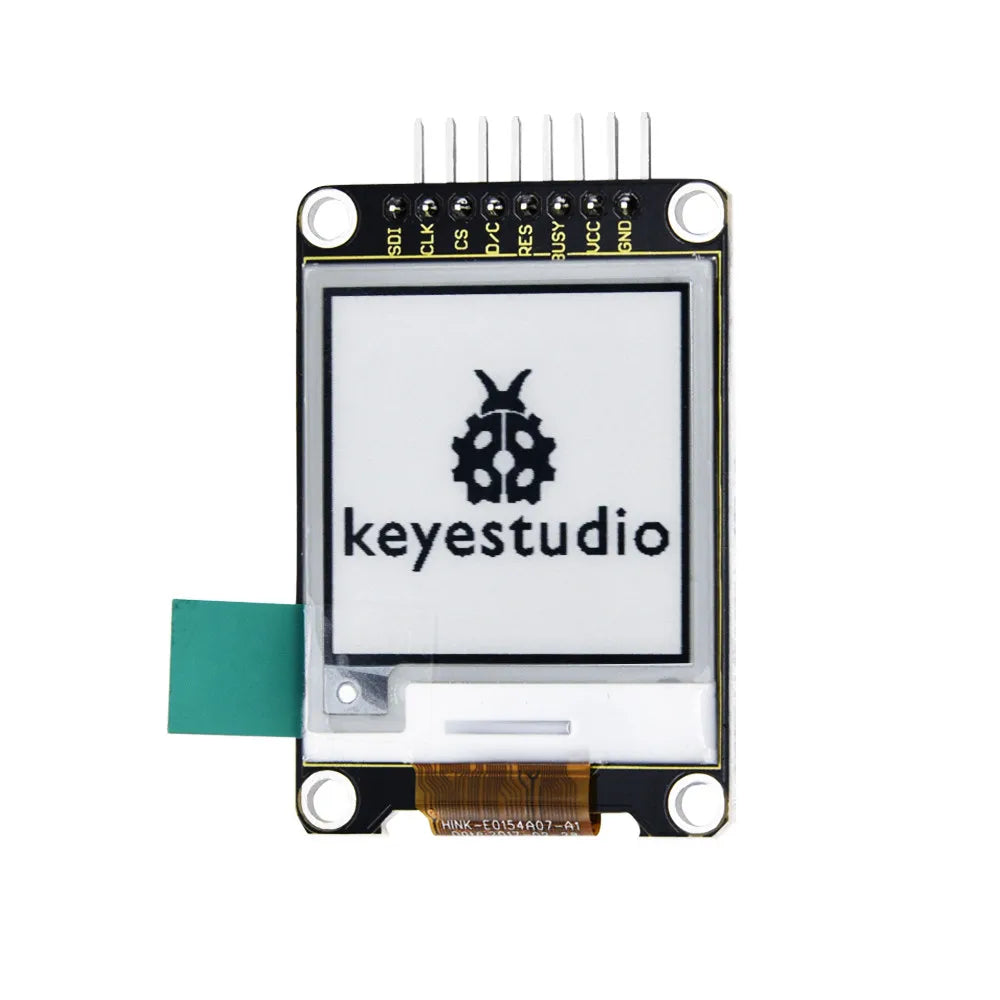

The Keyestudio E-Ink Screen Module features a 1.54-inch black and white display with a 200x200 resolution, capable of dynamically displaying patterns via SPI communication. It includes four 3mm positioning holes for easy mounting on other equipment, along with four M3*10mm double-pass hex copper posts and four M3*6mm round head screws to ensure secure installation. This module is designed for straightforward integration in various applications.
Specificationss
- Working voltage: DC 5V
- Working current: 150mA
- Maximum power: 0.75W
- Display color: black and white
- Display size: 1.54 inch
- Display resolution: 200*200
- Interface type: 8pin header with 2.54mm pitch
- Operating temperature range: -20℃ to +60℃
- Positioning hole diameter: 3mm

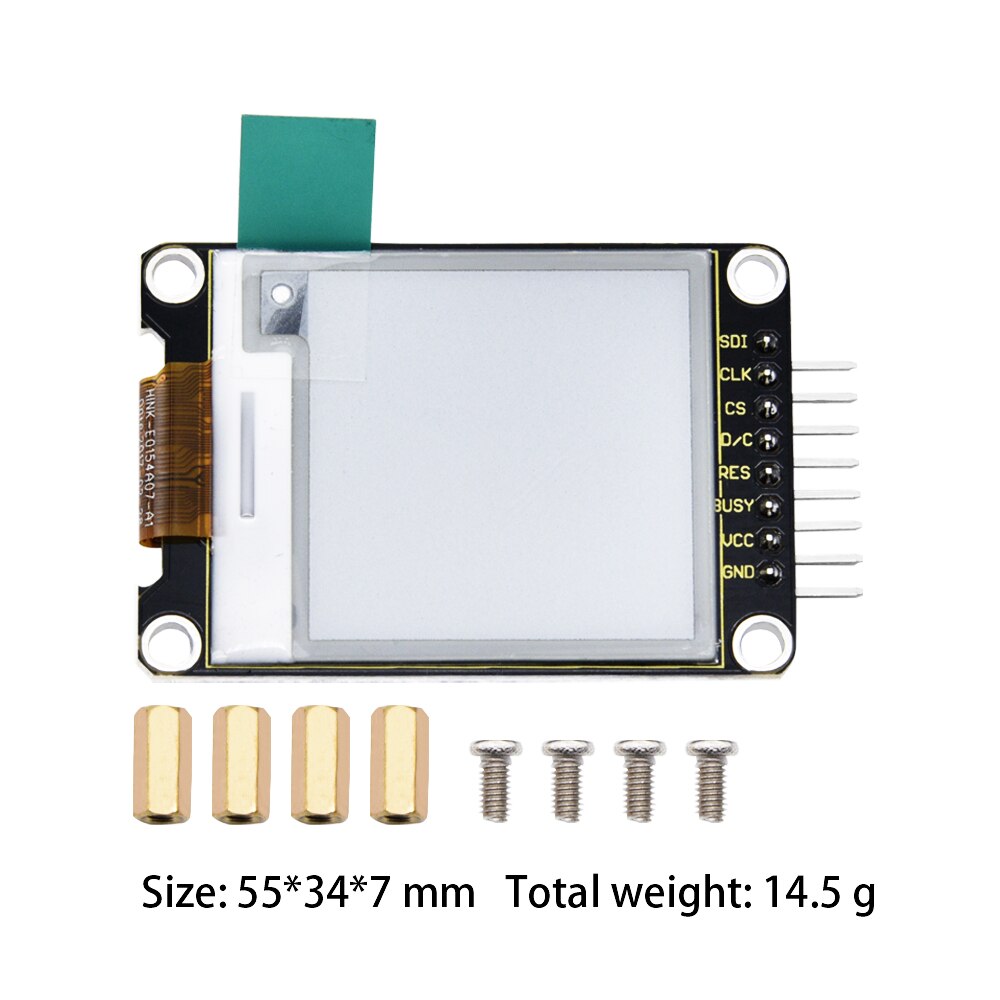

- Size: 55*34*7mm
- Weight: 14.5g
- Environmental attributes: ROHS
