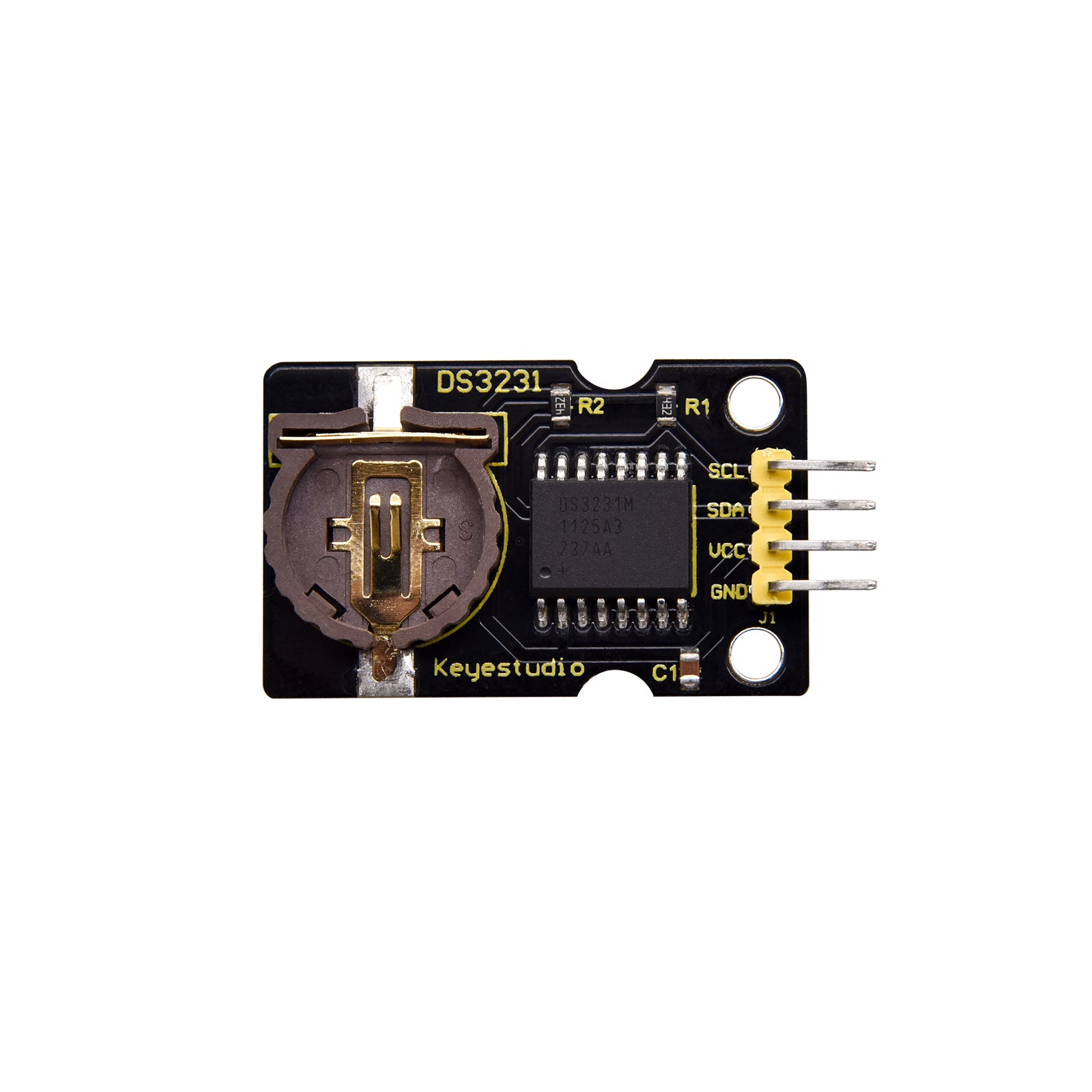

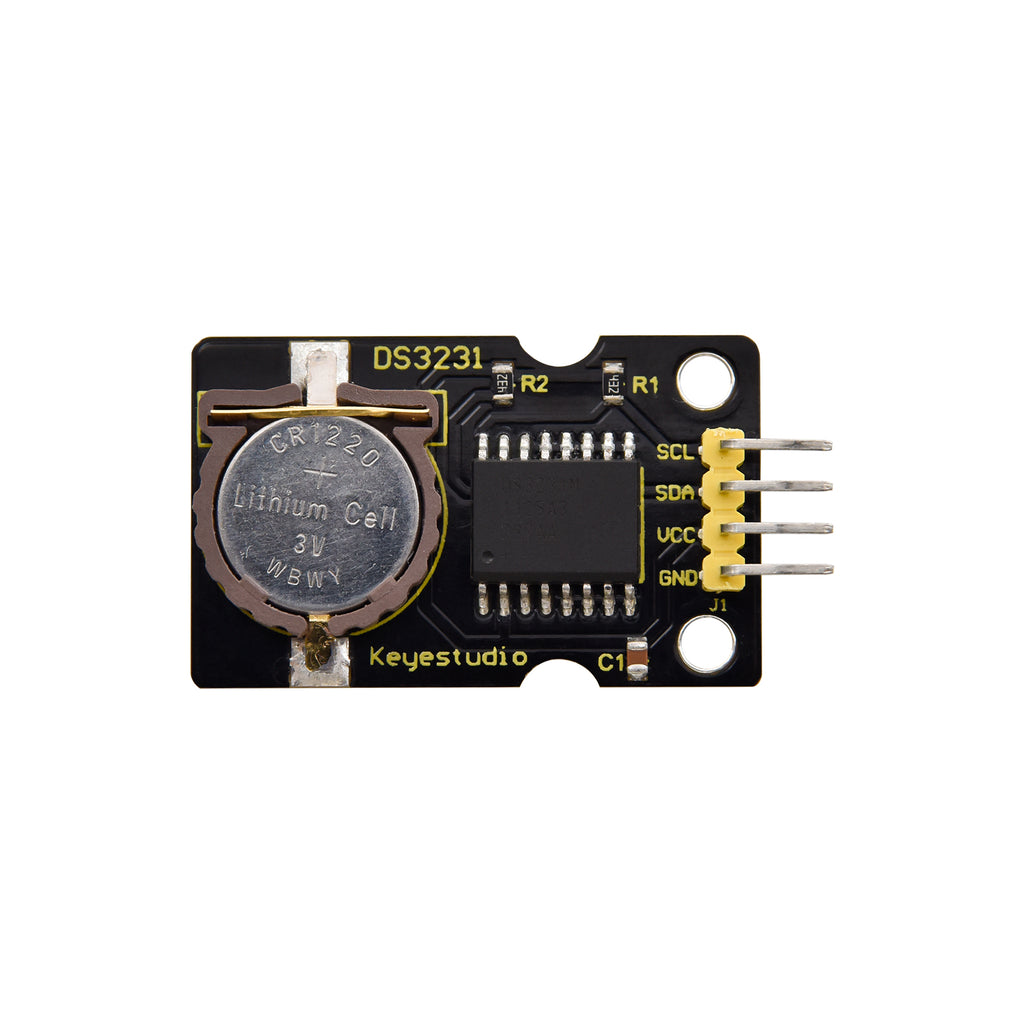

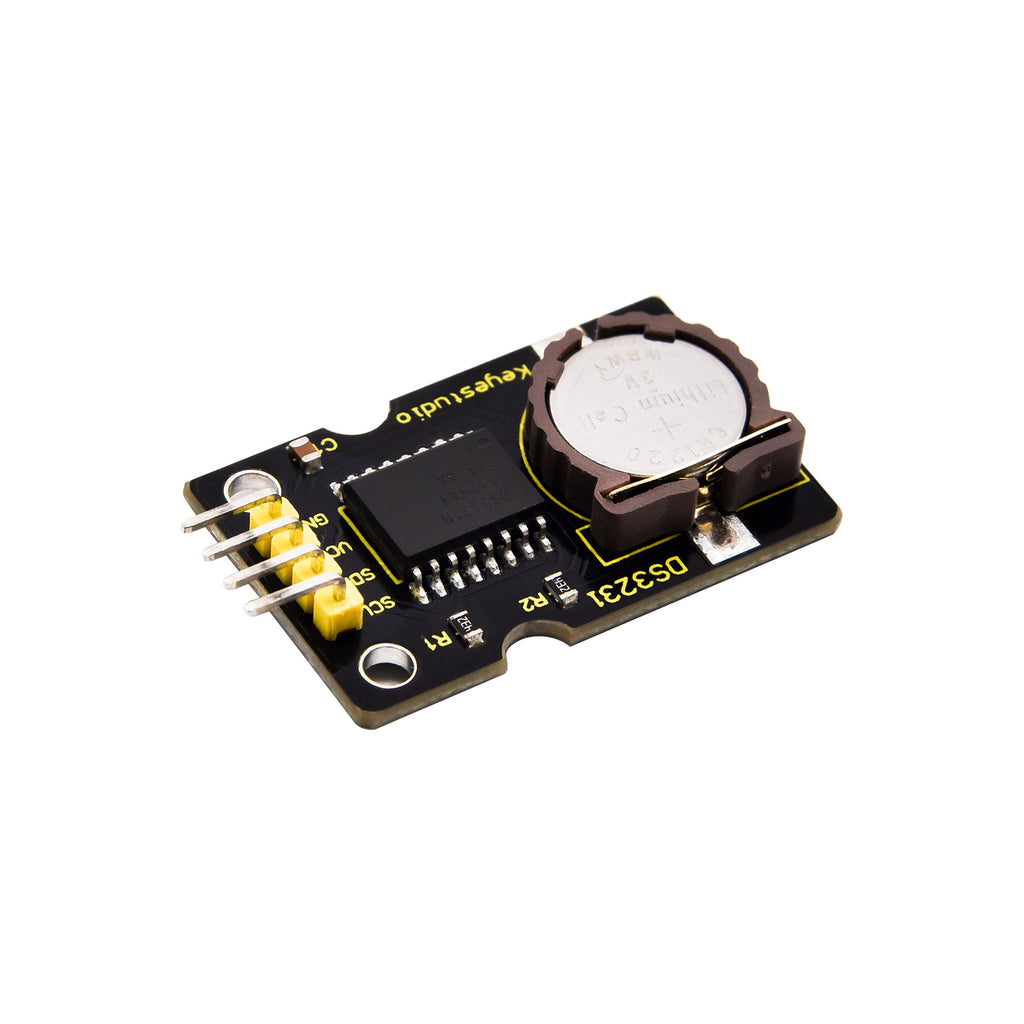

The Keyestudio DS3231 High Precision I2C Real Time Clock Module features an integrated TCXO and crystal for exceptional timing accuracy. It includes a battery input to maintain timekeeping during power loss and an internal oscillator that ensures long-term precision while minimizing component count. Supporting both commercial and industrial temperature ranges, this module operates seamlessly at 3.3V or 5V without requiring a level shifter, making it a reliable and convenient choice for precise timekeeping in embedded systems.
Specification
- Temperature range: -40 to +85; Timing accuracy : ± 5ppm (±0.432 seconds / day)
- Provide battery backup for continuous timing
- Low power consumption
- Device package and function compatible with DS3231
- Complete clock calendar function contains seconds and minutes, hour, week, date, month, and year timing and provides leap year compensation until 2100.
- Two calendar clock
- Output: 1Hz and 32.768kHz
- Reset output and Input Debounce of Pushbutton
- High speed (400kHz), I2C serial bus
- 1Supply voltage: +3.3V to +5.5V
- Digital temperature sensor with a precision of±3℃
- Working temperature: -40 ~ C to +85 ~ C
- 16 pins Small Outline Package (300mil)
