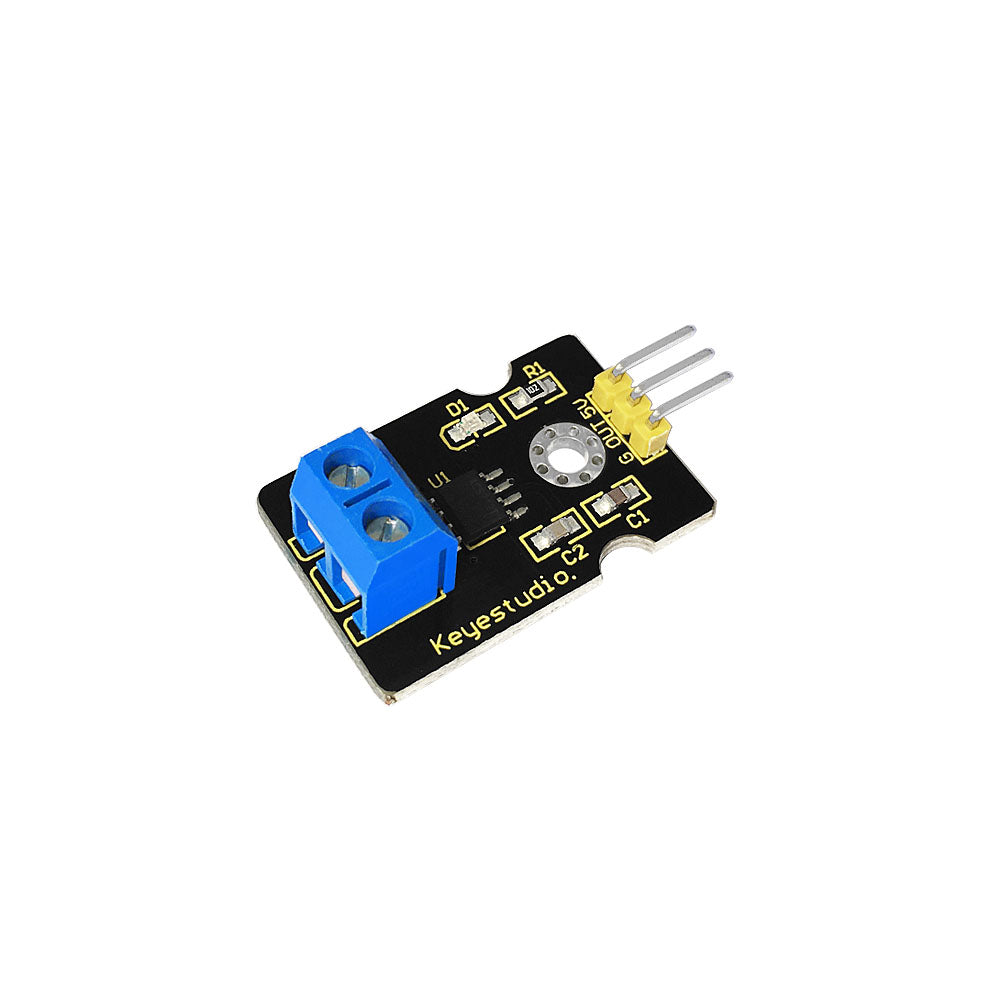

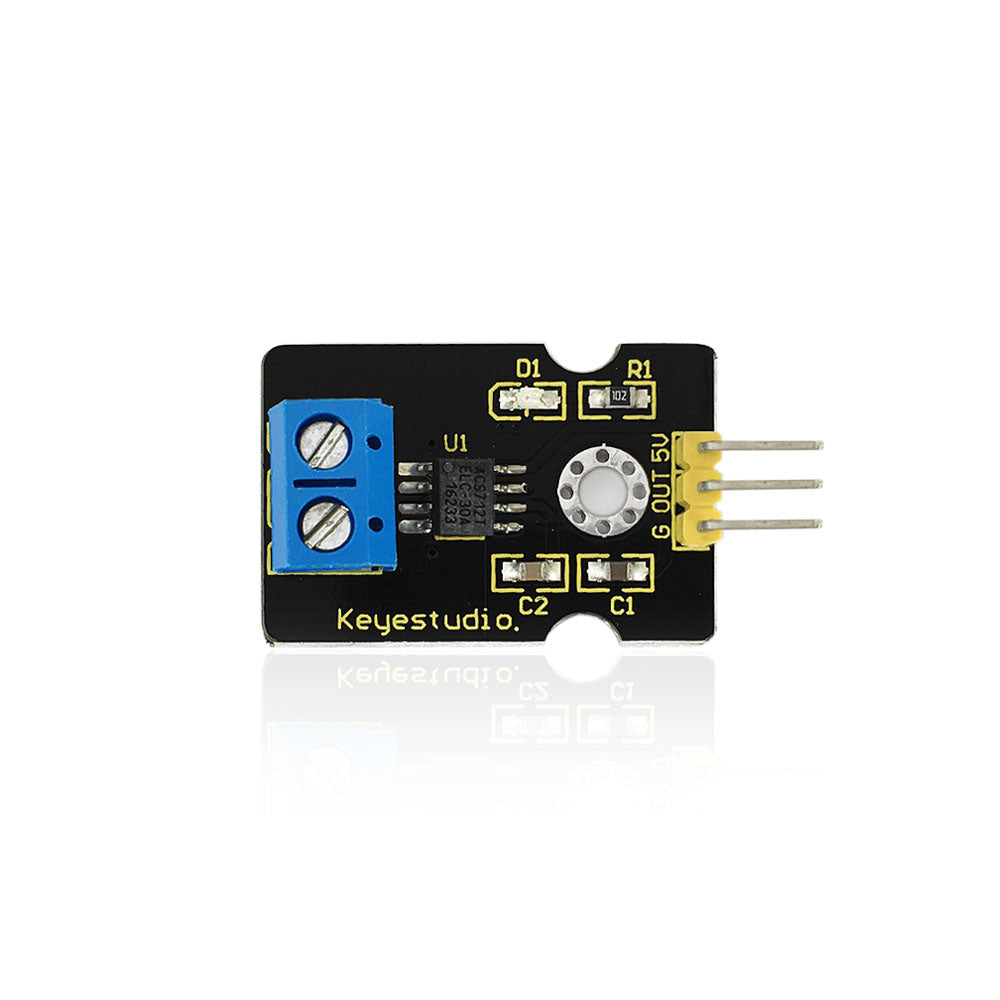

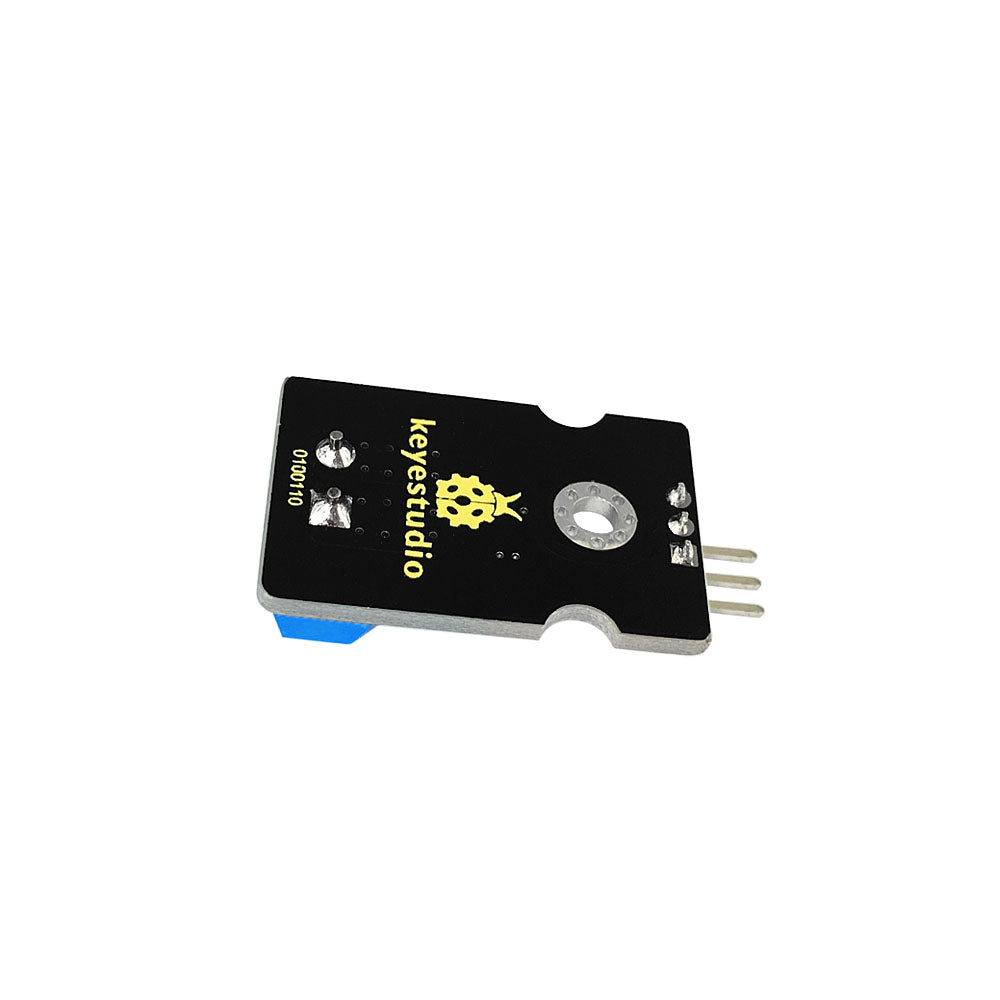

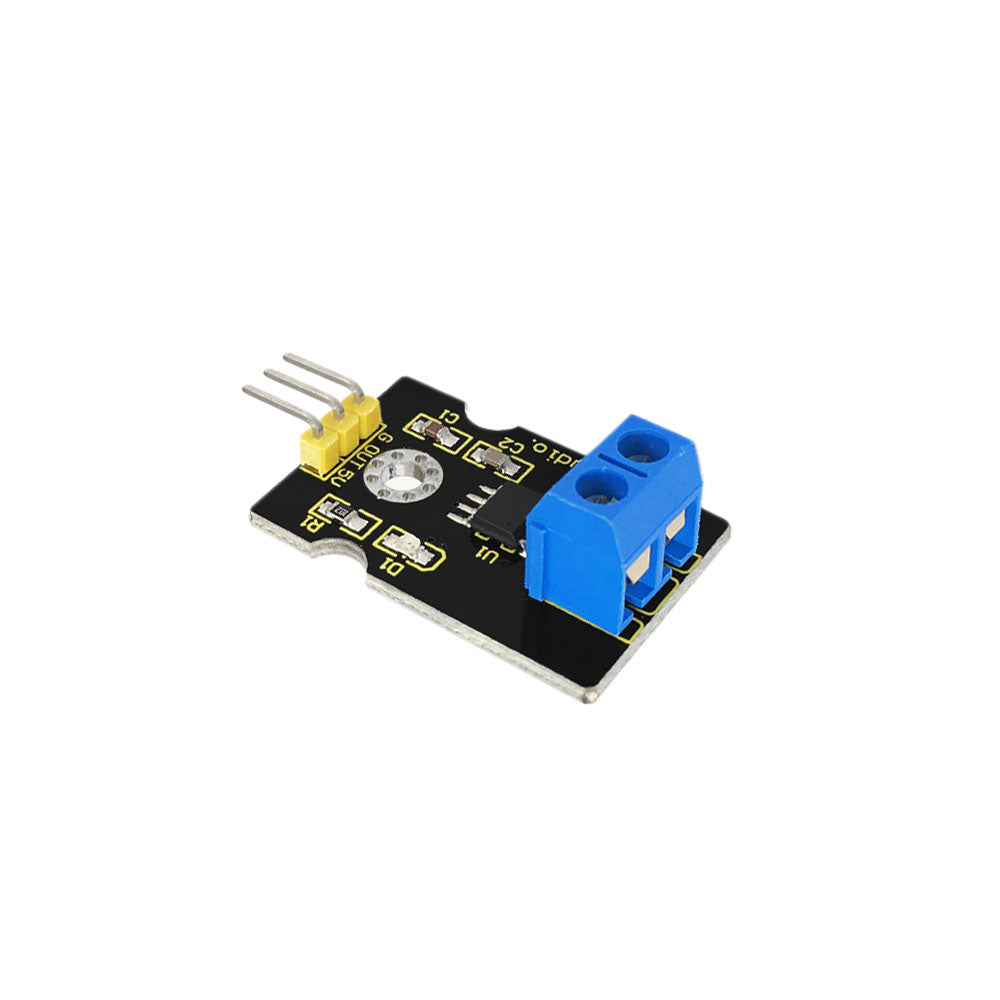

The Keyestudio ACS712-30A Current Sensor features the ACS712ELC-30A chip, utilizing Hall Effect technology to accurately measure current intensity up to 30A. To ensure precise readings, it is essential to protect the sensor from external magnetic fields that may interfere with its operation. This sensor is well-suited for reliable current monitoring in a variety of electronic applications.
Specifications
- Chip: ACS712ELC-30A
- 5V Power Supply and Power Indicator On-board
- This module can detect 30A positive and negative current,corresponding analog output at 66mV/A.
- Output voltage is VCC/2 without current flowing.
