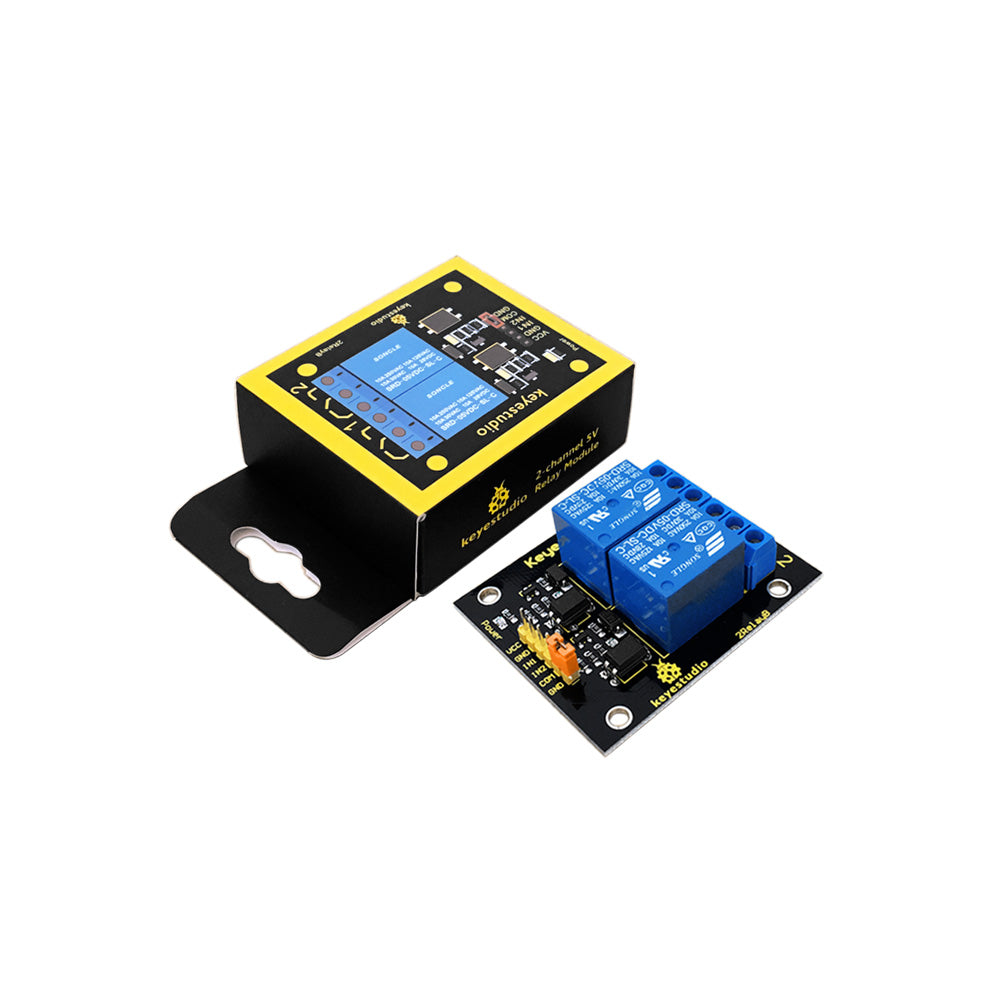

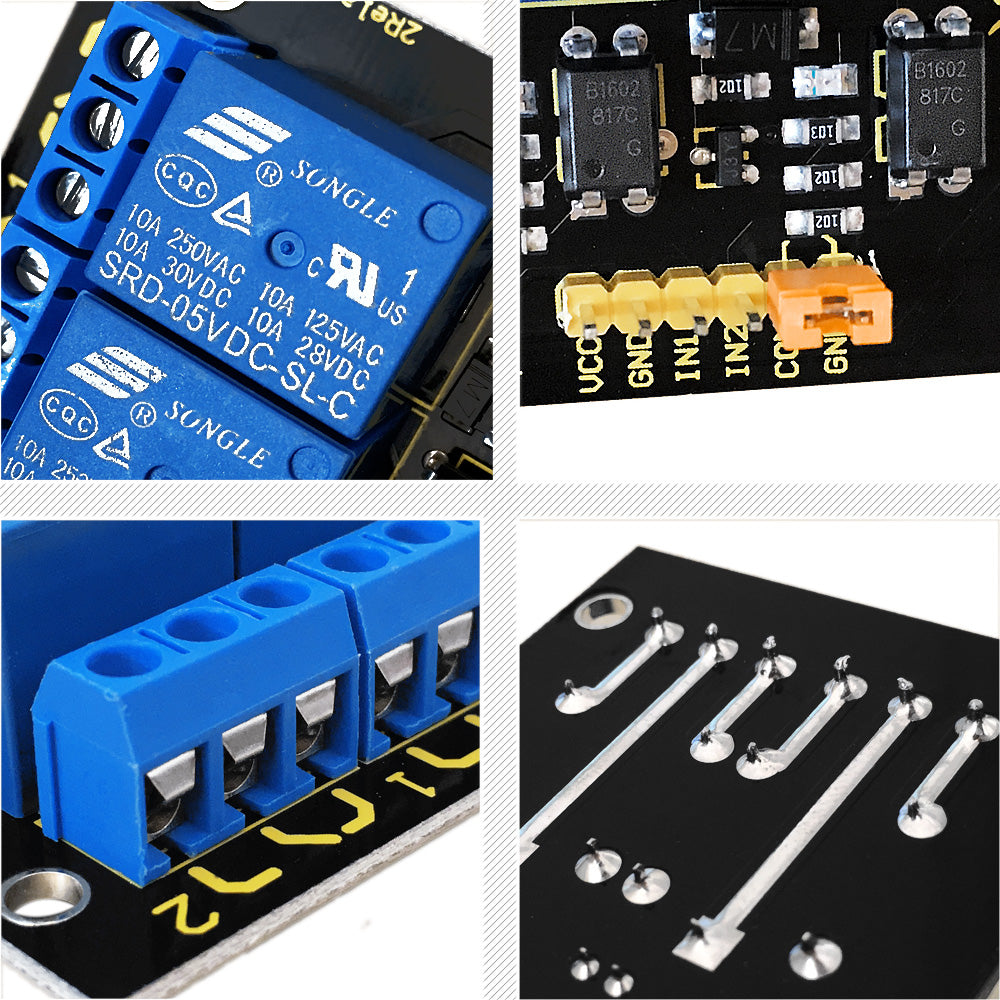

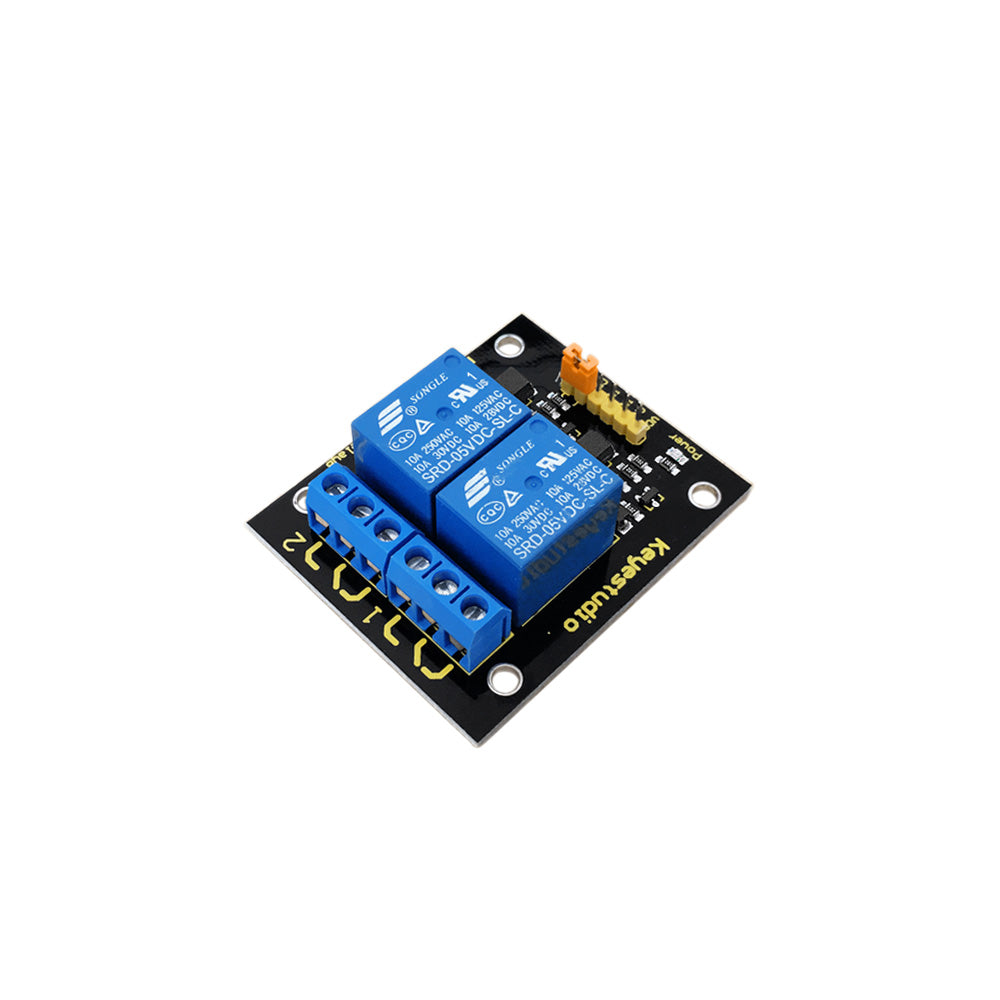

The Keyestudio 2-channel 5V Relay Module features high-quality relays capable of handling up to 250V/10A AC or 24V/10A DC loads, making it suitable for controlling lights, motors, and other devices. Its modular design ensures seamless integration with Arduino expansion boards. Each relay channel includes an LED indicator to clearly display the output state, facilitating precise monitoring and control in various applications.
Specification
- Control signal: TTL voltage
- Active at High level
- Rated load:
-
- 10A 250VAC
- 10A 125VAC
- 10A 30DC
- 10A 28VDC
- Rated Through-current: 10A(NO) 5A(NC)
- Max Switching Voltage: 250VAC 30VDC
- Contact actuation time: ﹤10ms
-

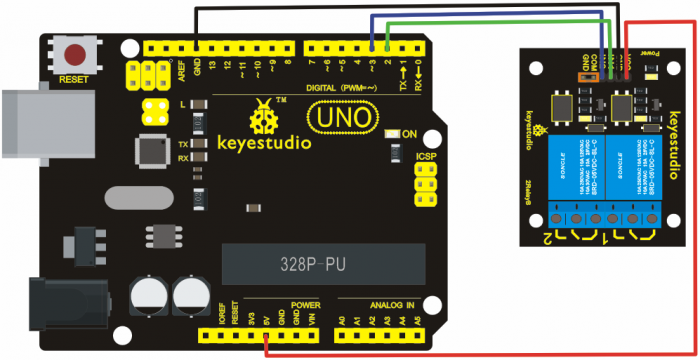

Definition of module pins:
- Pin 1 - Pin 2----Controlling end
- Power supply (VCC)
- Ground (GND)
