Transformerless ethernet breakout board for GigaBlox Nano

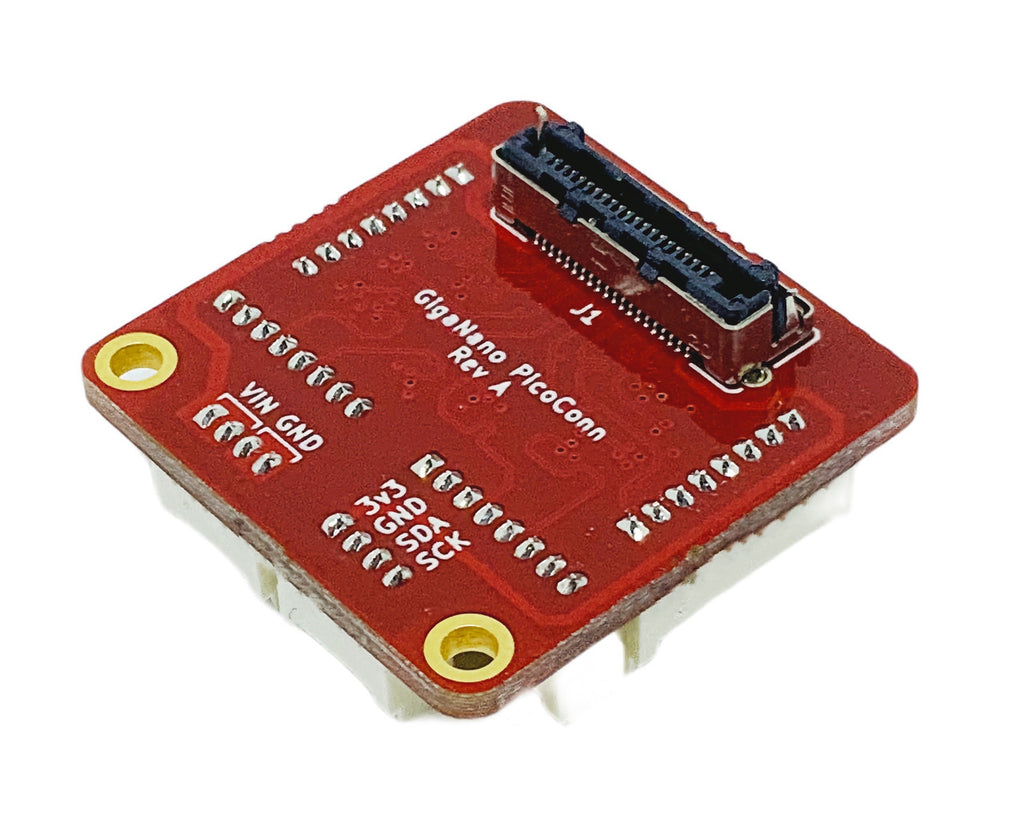

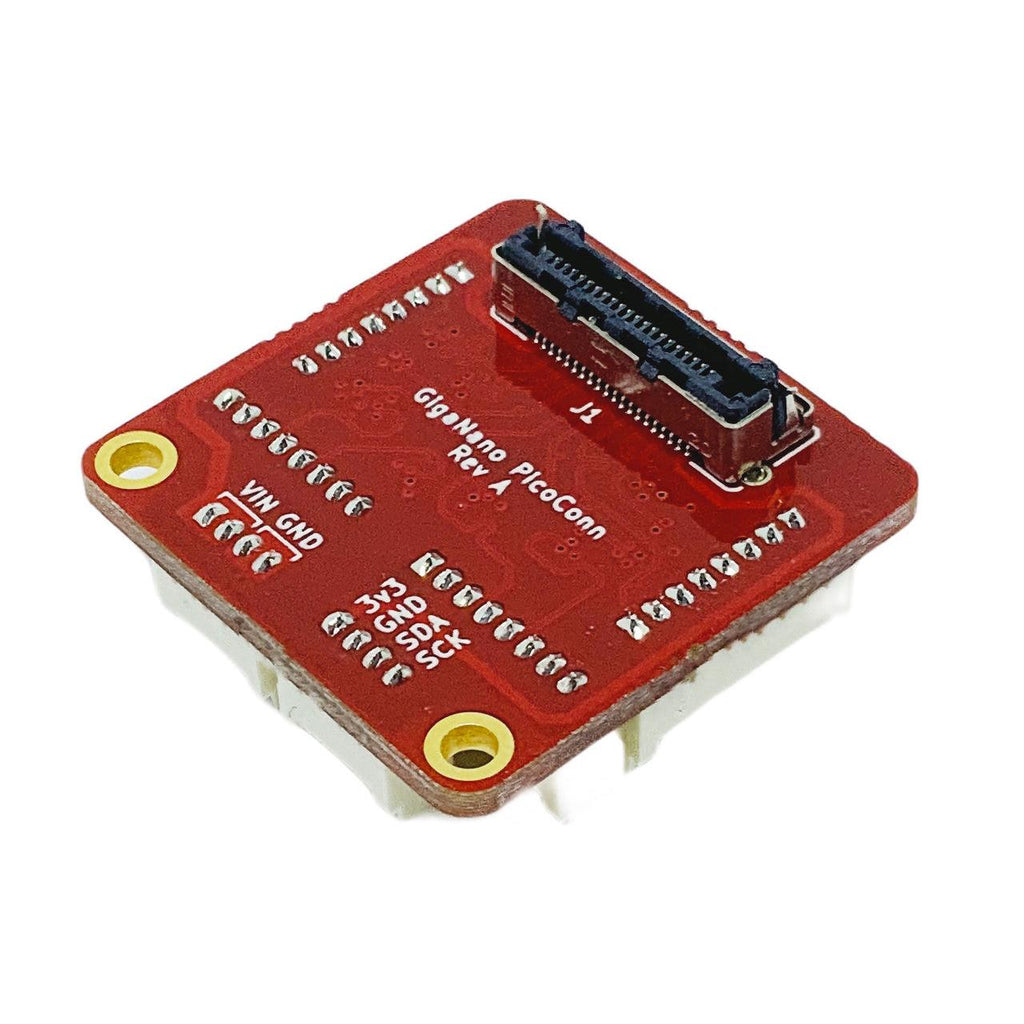

This is the PicoBlade stackable breakout board for GigaBlox Nano.

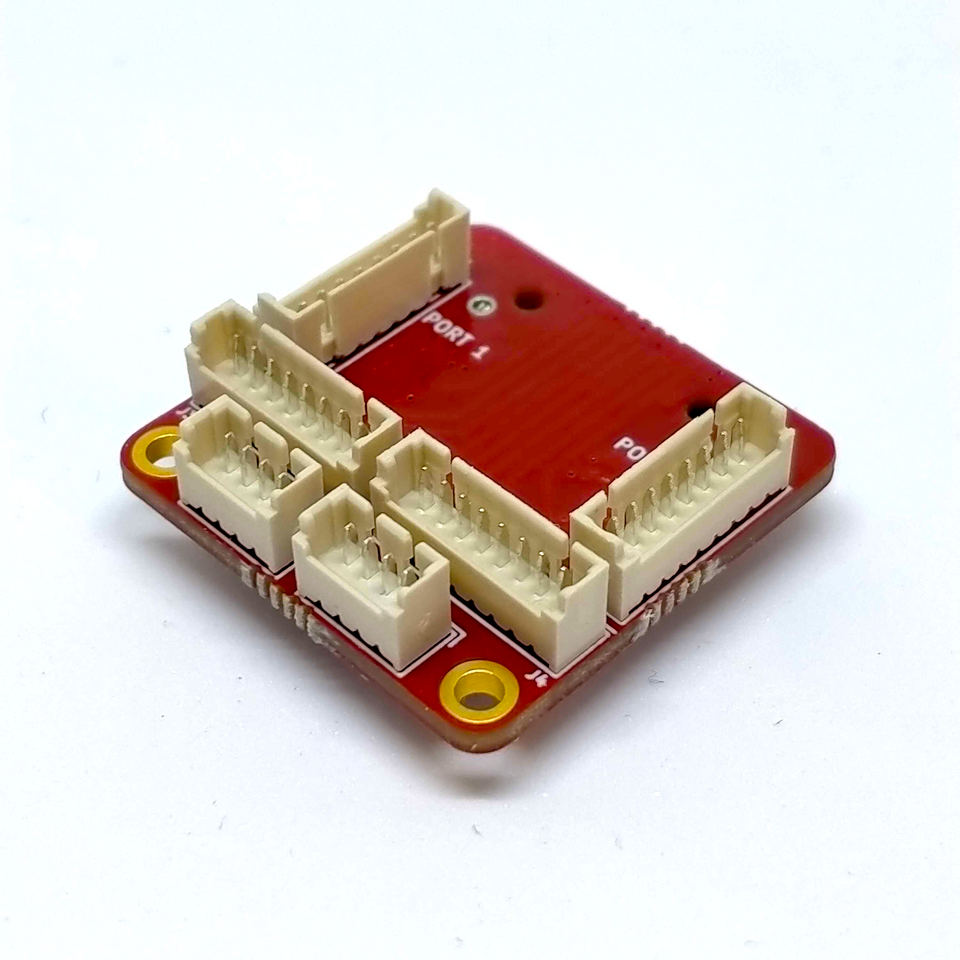

This board routs the four ports of GigaBlox Nano onto four PicoBlade headers (the same type as used on the standard GigaBlox). Power for GigaBlox Nano is routed onto a PicoBlade header. The pinout used is the same as on our GigaBlox.

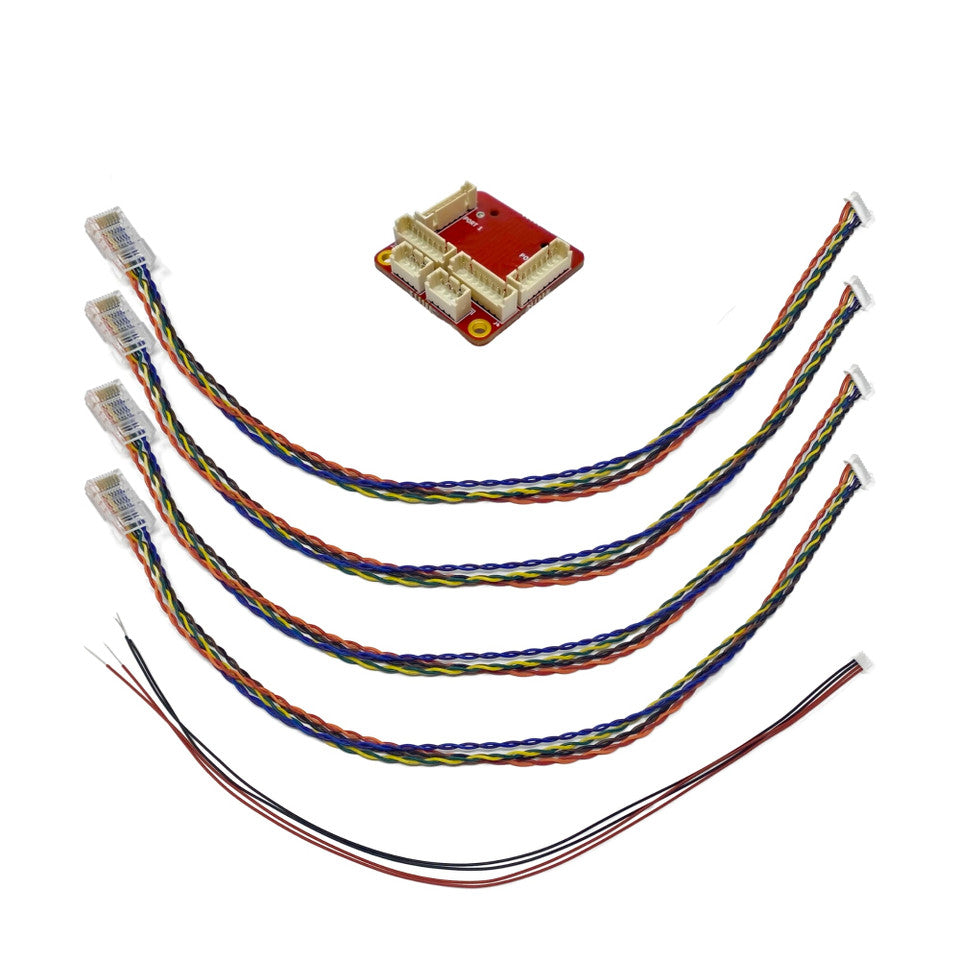

This product ships with the following cables:
4 x PicoBlade to RJ-45 300mm (SKU: BB-PBRJ1-8-0.3)
1 x PicoBlade to bare wires 300mm (SKU: BB-PBTL1-4-0.3)
Ports
4 x 10/100/1000Mb transformerless ports on Molex PicoBlade
