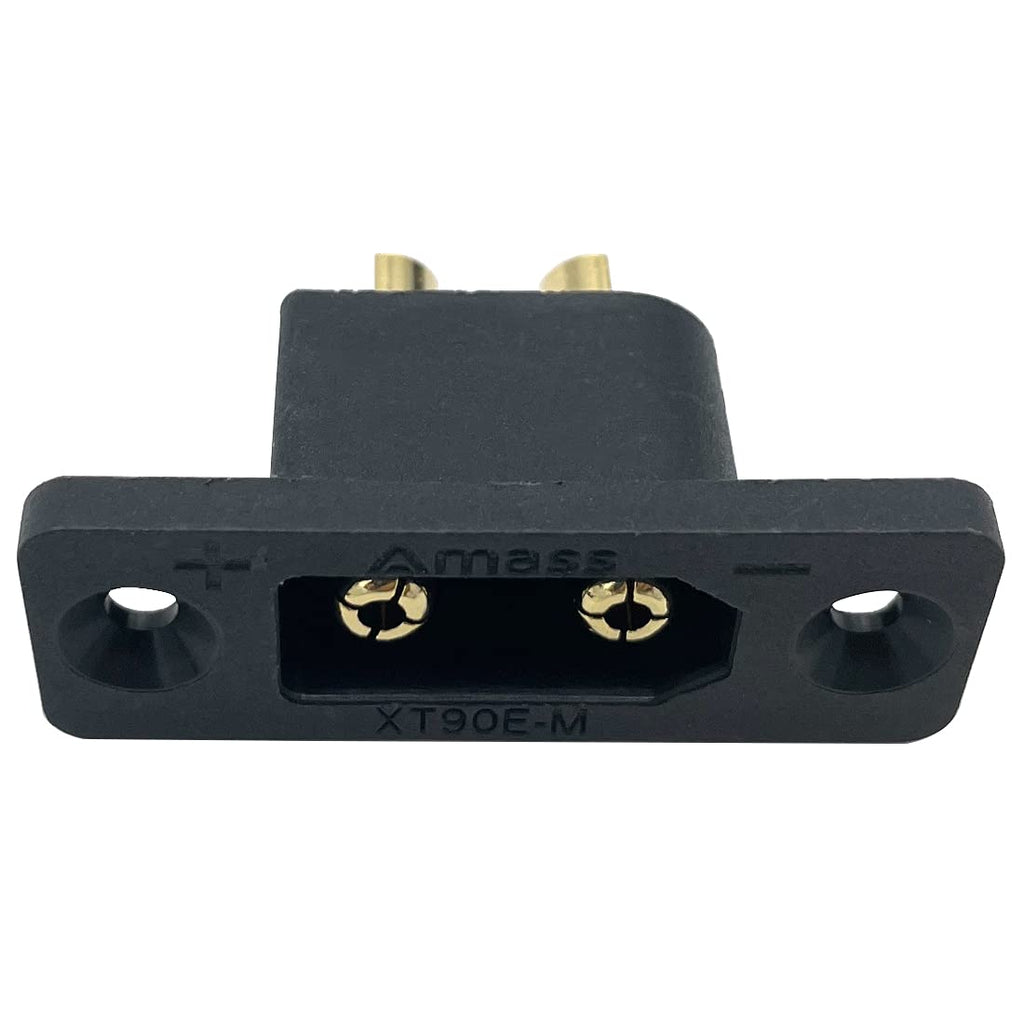

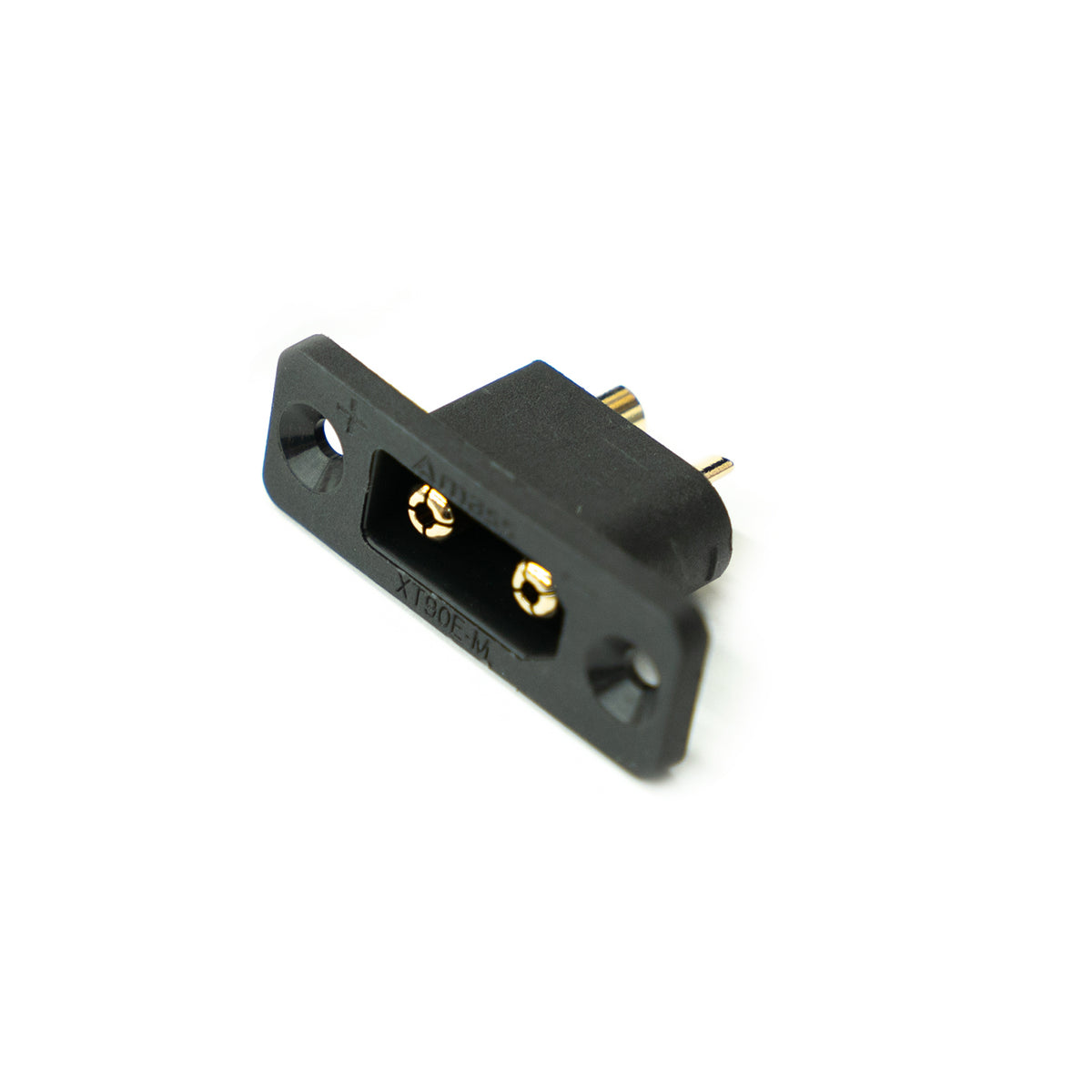

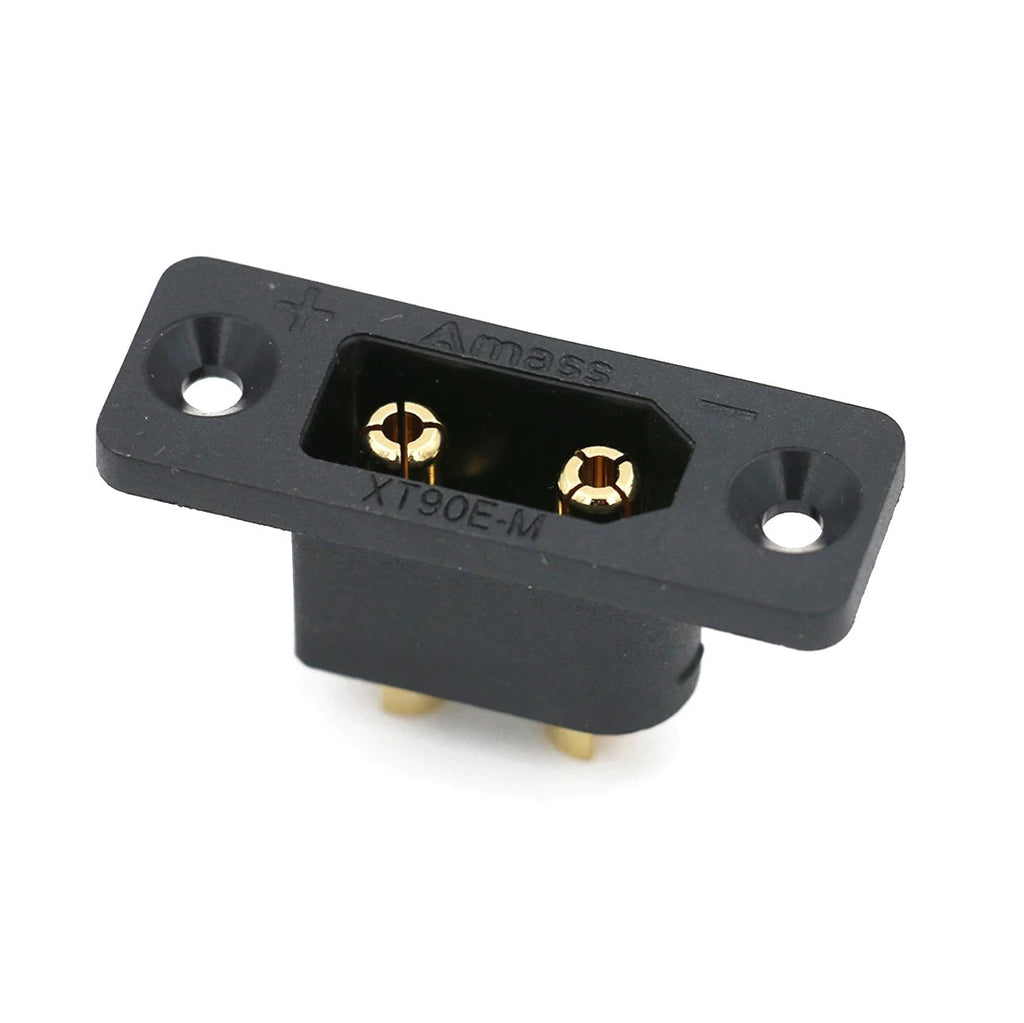

The Amass XT90E-M is a heavy-duty panel-mount male XT90 connector designed for high-current DC applications. Rated for up to 90 A continuous, it features an integrated mounting plate allowing clean installation into power distribution panels, battery boxes, charging rigs or robotics enclosures.
Unlike standard inline XT90 connectors, the E-series includes bolted mounting tabs so the connector cannot twist or detach during use. Ideal for harsh environments or frequent plug/unplug applications.
Technical Specifications
| Parameter |
Details |
| Connector type |
XT90E-M (male) |
| Mount style |
Panel mount with screw tabs |
| Current rating |
90 A continuous |
| Voltage rating |
Typically 500 V DC peak |
| Contact plating |
Gold-plated copper alloy |
| Housing |
Nylon / PA6 (flame retardant UL94-V0) |
| Operating temperature |
-20 °C to +120 °C |
| Wire compatibility |
Solder or terminal to mating XT90-F |
