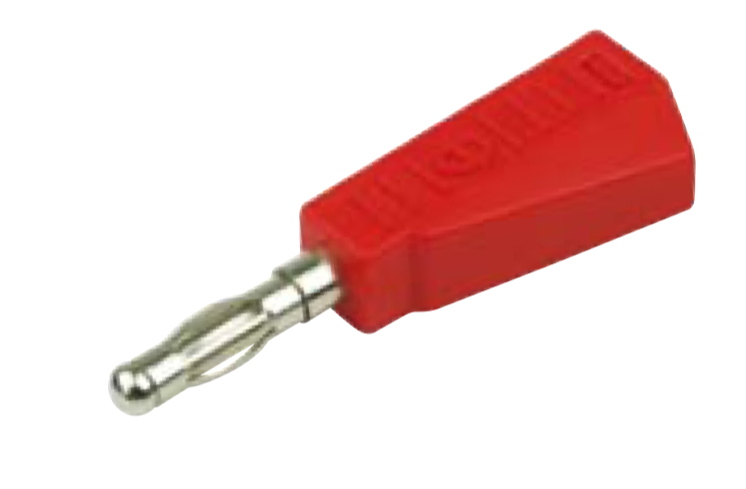

The Amass 25.426 is a premium 4 mm test connector designed for custom-built leads and low-voltage power adapters. Featuring a rear solder cup, it allows secure attachment of wire directly to the connector body. Perfect for technicians who prefer to fabricate or modify their own testing or power equipment.
It supports stackable connection, meaning additional banana plugs can be interfaced in series. That makes it great for expanding setups or installing inline connection points
Overview
- 4 mm stackable banana-style connector body
- Rear solder terminal – for custom lead assembly
- Connects to standard 4 mm banana plugs
- Nickel-plated brass internal contacts
- Typically available in multiple colour variants
- Ideal for bench testing, prototyping & power setups
Technical Specifications
| Parameter |
Details |
| Type |
4 mm banana connector (stackable) |
| Termination |
Solder cup / DIY wire connection |
| Stackable |
Yes |
| Wire size |
Typically 0.75–1.5 mm² |
| Rated current |
Max 19A (depending on wire) |
| Rated voltage |
Up to 60 V DC |
| Material |
Nickel-plated brass |
| Insulation |
Molded thermoplastic |
| Colour options |
Red / Black / Yellow / Green / Blue |
