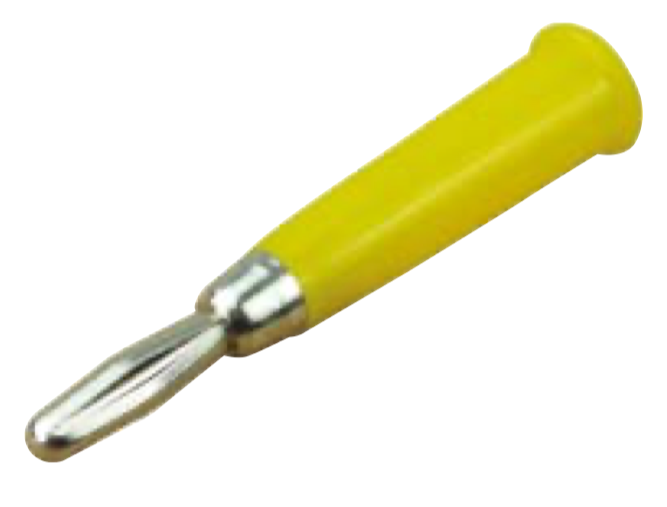

Build your own high-quality test leads and power cables using the Amass 25.402.
Unlike plug-in panel connectors, this version features a rear solder cup, allowing secure attachment of wire directly to the connector. It is ideal for technicians creating custom lead assemblies, adapters, or power distribution cabling. Made from nickel-plated brass, it provides excellent conductivity and longevity in demanding environments.
Overview
- 4 mm banana plug (male)
-
Rear solder terminal — for custom lead fabrication
- Nickel-plated brass for low resistance
- Durable insulating sleeve
- Typical wire compatibility: 0.75–1.5 mm² (18–16 AWG)
Technical Specifications
| Parameter |
Details |
| Connector Type |
4 mm banana plug |
| Termination Style |
Solder cup / solder bucket |
| Stackability |
Yes |
| Rated Current |
Max 19 A (depending on wire gauge and insulation) |
| Rated Voltage |
Up to 60 Vdc |
| Contact Material |
Nickel-plated brass |
| Recommended Wire Size |
0.75 – 1.5 mm² |
| Colour Options |
Red / Black |
