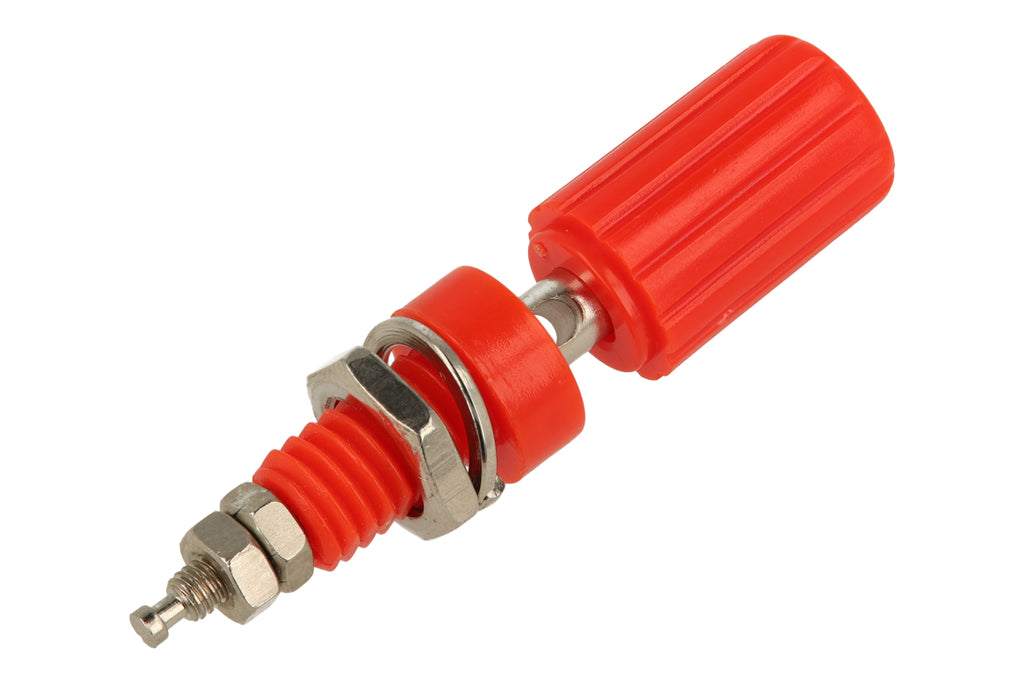

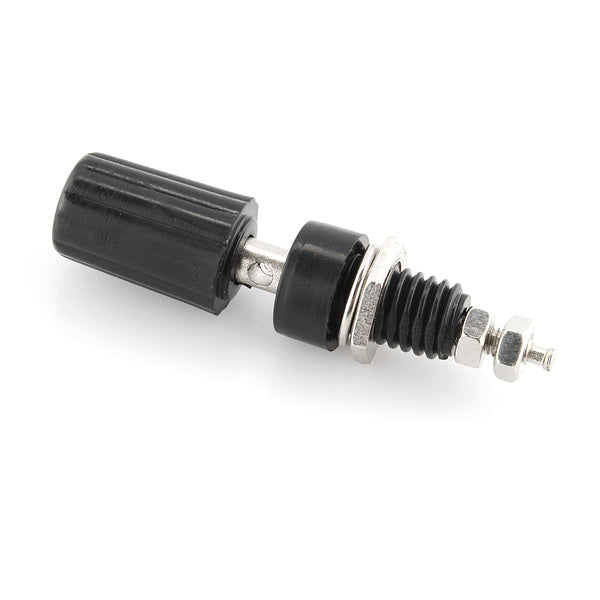

Bring clean, high-quality connectivity to your bench or equipment panel with the Amass 24.826 binding post. This terminal post accepts standard 4 mm banana plugs and mounts securely via an M3 screw for professional integration in test rigs, power supplies or custom enclosures.
Overview
-
4 mm banana socket (female) – accepts standard banana plug or stackable banana plug.
-

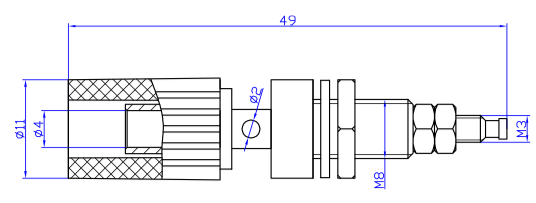

Panel mount via M3 screw (variant 24.826.1 red / 24.826.2 black) – overall length approx 49 mm.
-
Rated current approx 19 A and rated voltage ~60 V as listed in distributor data.
-
Contact material: Nickel-plated brass.
-
Mounting style: Straight post style, secure on panel for lab/workbench use.
Technical Specifications
| Parameter |
Details |
| Socket size |
4 mm banana |
| Mounting screw size |
M3 |
| Overall length |
~49 mm (straight post) |
| Rated current |
~19 A |
| Rated voltage |
~60 V |
| Contact material |
Nickel-plated brass |
| Insulation material |
ABS (body) |
| Mounting style |
Panel-mount, thread + nut |
| Colours available |
Red, Black |
