A fine-precision test lead for working with small terminals, component legs or tight board layouts. The Amass 22.520 combines a 4 mm banana plug on one end with a compact hook probe clip on the other. This makes it ideal for quick connection to small test points during circuit diagnostics and development.
Overview

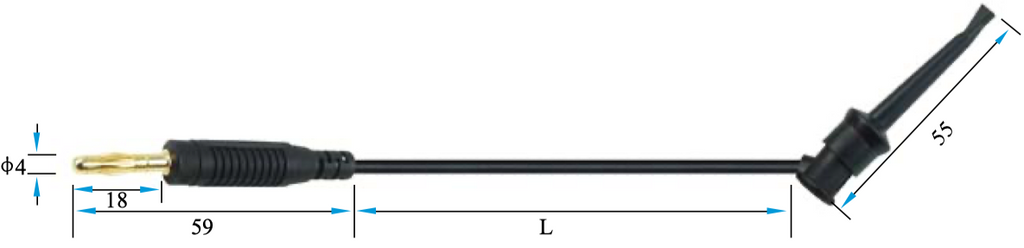

- 4 mm stackable banana plug → fine hook probe end
- Approx. 1 m length silicone-insulated lead
- Designed for low-voltage signal and continuity testing
- High-flex, tangle-resistant cable ideal for precision work
- Hook probe allows secure latching onto thin terminals or component legs
- Colour-coded variants (red/black/green) for safe polarity indication
Technical Specifications
| Parameter |
Details |
| Connector A |
4 mm stackable banana plug |
| Connector B |
Hook probe (fine latch-style) |
| Cable length |
1.0 m |
| Conductor |
Typically 0.75 mm² silicone lead |
| Rated voltage |
Low-voltage test use only (30Vac - 60Vdc) |
| Rated current |
Up to 15 A (hook limited) |
| Insulation |
Silicone |
| Colour options |
Red / Black / Green |
