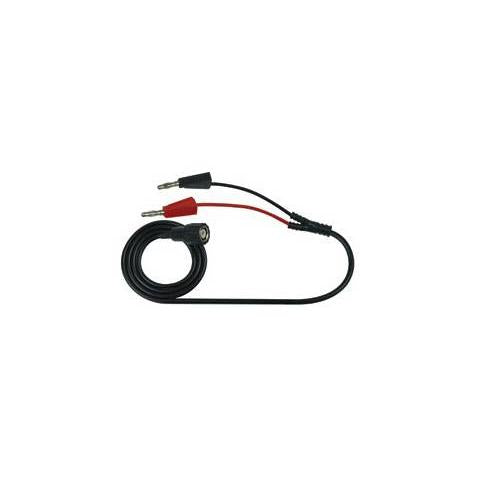

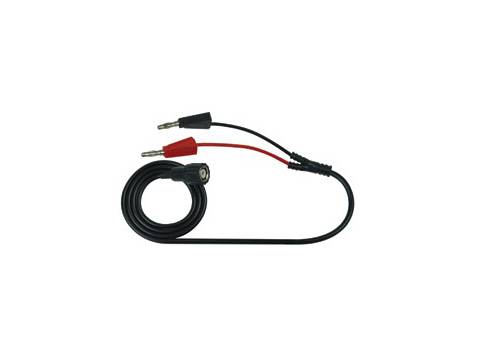

Bridge your test gear to the circuit with ease. The Amass 21.030 connects standard BNC outputs from oscilloscopes, function generators or meters to dual 4 mm banana plugs. This gives you safe, reliable access to your device under test.
Features
-

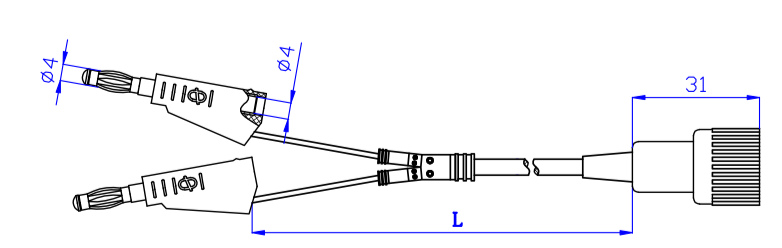

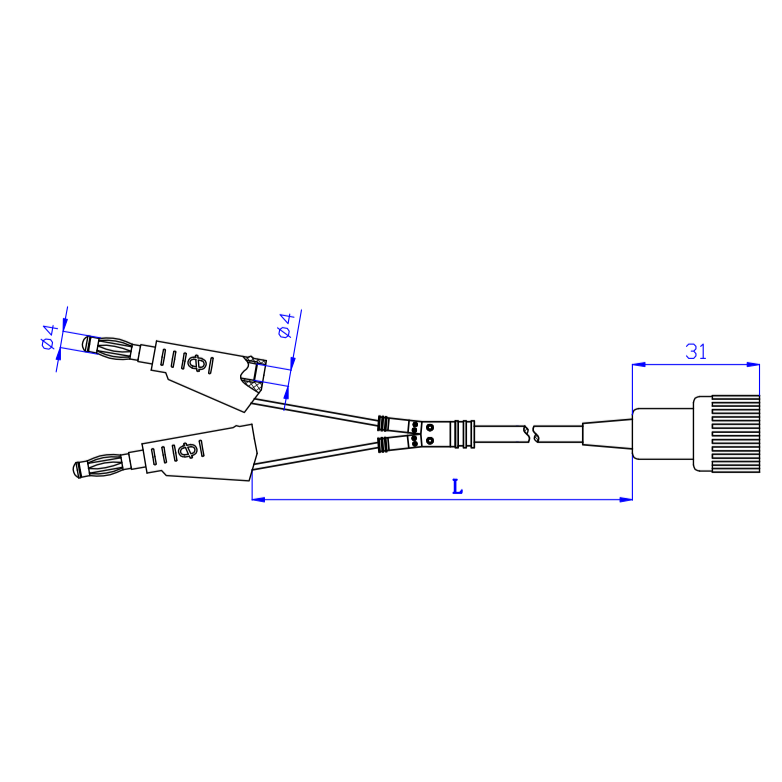

BNC male to dual 4 mm banana plugs — ideal for oscilloscopes, function generators and multimeter interfaces
-
1.2 m flexible PVC cable — generous reach for bench setups
-
Nickel-plated brass contacts — solid conductivity and wear resistance
-
150 V / 3 A rated — safe for standard lab and field measurements
-
Colour-coded leads — quick polarity ID for accurate connections
-
Stackable plugs — daisy-chain multiple connections if needed
Specifications
| Parameter |
Details |
| Connector A |
BNC male |
| Connector B |
Dual 4 mm banana plugs (red / black, stackable) |
| Cable length |
1.2 m |
| Conductor |
0.5 mm² PVC-insulated wire RG58/50Ω |
| Rated voltage |
150 V max |
| Rated current |
3 A max |
| Category rating |
CAT I 500 V / CAT II 150 V |
| Contact material |
Nickel-plated brass |
| Colour coding |
Red / Black |
