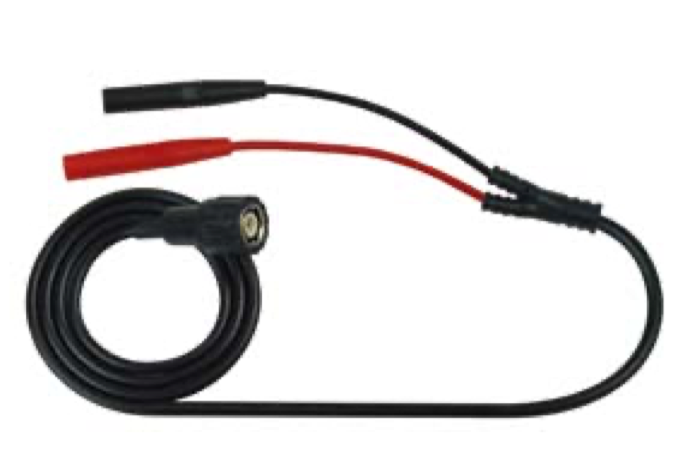

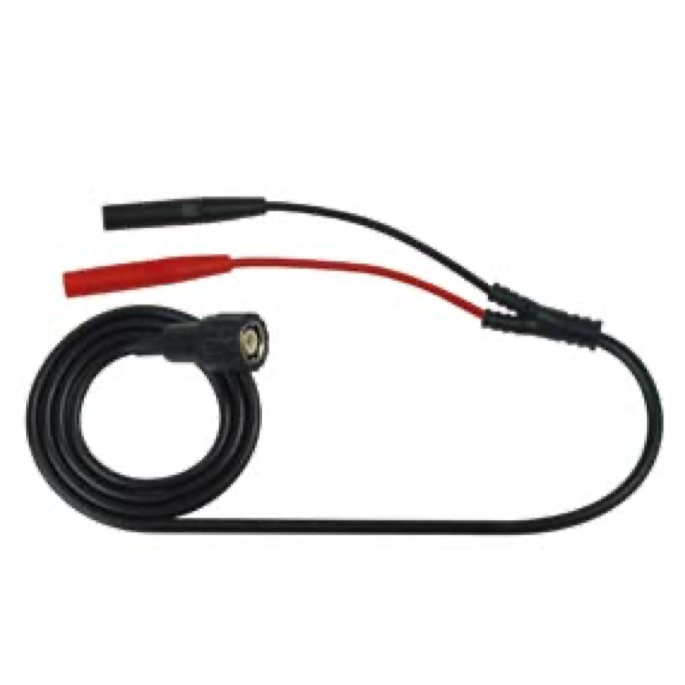

Whether on the bench or in the lab, this cable makes the connection from BNC-equipped test gear to standard banana-plug terminals effortless. The Amass 21.010 features a male BNC connector on one end and two insulated 4 mm banana plugs (red + black) on the other, mounted on a 1.2 m lead. It’s designed for quick hook-up from signal generators, oscilloscopes or multimeters to devices under test.
Features
- BNC male to dual 4 mm banana plugs. Standard interface for oscilloscopes & bench gear
- 1.2 m length gives comfortable reach across most benches
- Insulated banana plugs help maintain safe connections and clear polarity
- Rated CAT I 500 V / CAT II 150 V (3 A max). Ideal for typical electronics test setups.
Specifications
| Parameter |
Details |
| Connector A |
BNC male |
| Connectors B |
Dual 4 mm banana plugs (red + black) |
| Lead length |
~1.2 m |
| Rating |
CAT I 500 V / CAT II 150 V, 3 A |
| Colour coding |
Red / Black |
| Typical application |
Bench, lab, diagnostics |
