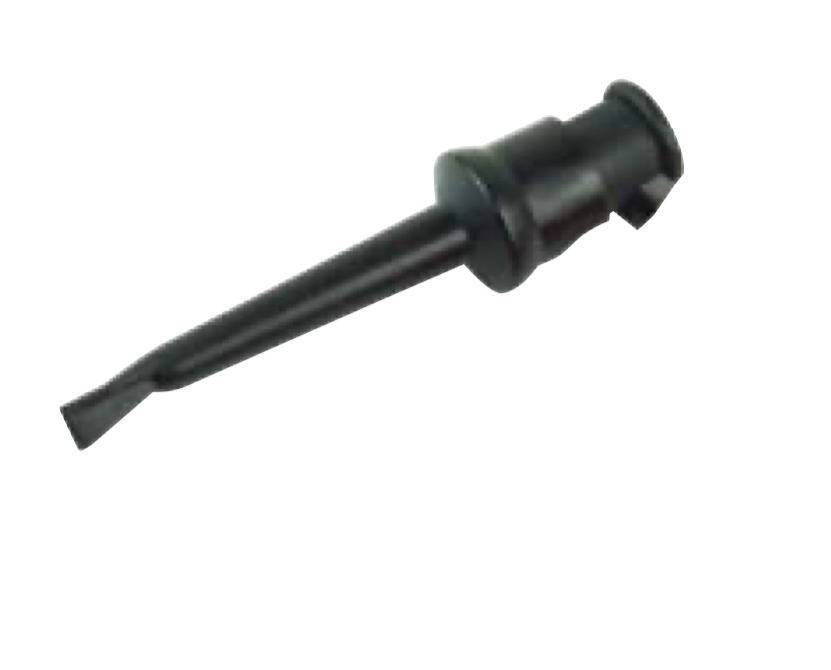

Build your own high-precision test leads using the Amass 20.135. This compact hook-style probe is designed to clip onto ultra-fine test points, component pins and small conductors. With a solder terminal on the rear, allowing you to create customised test leads to suit your exact bench setup.
Unlike plug-in style clips, the 20.135 is made for permanent integration into wiring harnesses or handmade test leads, where precision and reliability matter most.
Overview
- Hook-style probe designed for fine test points
- Solder connection interface — no plug, ideal for custom lead fabrication
- Rated for low-voltage testing (≈60 Vdc / 10 A max)

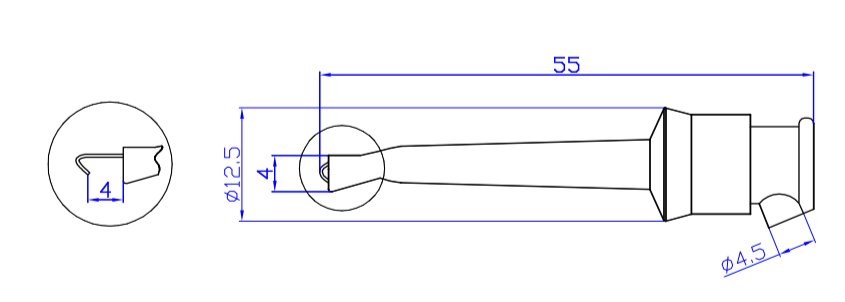

- Compact (~55 mm length) for board-level access
- Available in multiple colours (e.g., red, black, green, blue, yellow) for channel or polarity identification
Technical Specifications
| Parameter |
Details |
| Connection type |
Solder terminal (rear) |
| Probe style |
Spring-loaded mini hook |
| Length |
~55 mm |
| Max voltage |
Approx. 60 Vdc |
| Max current |
Up to 10 A |
| Materials |
Plastic body, spring steel conductor |
| Available colours |
Red / Black / Yellow / Green / Blue |
