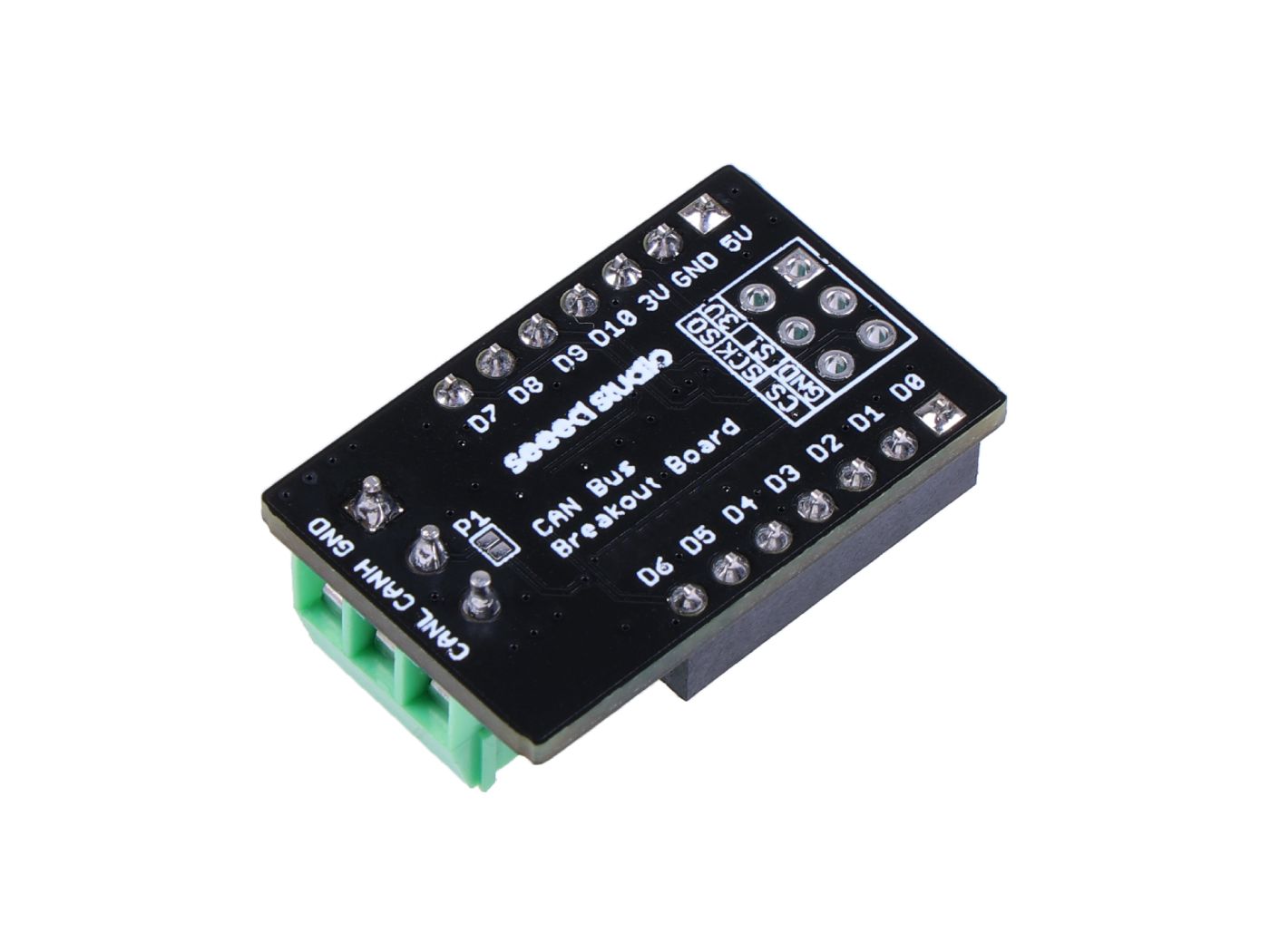

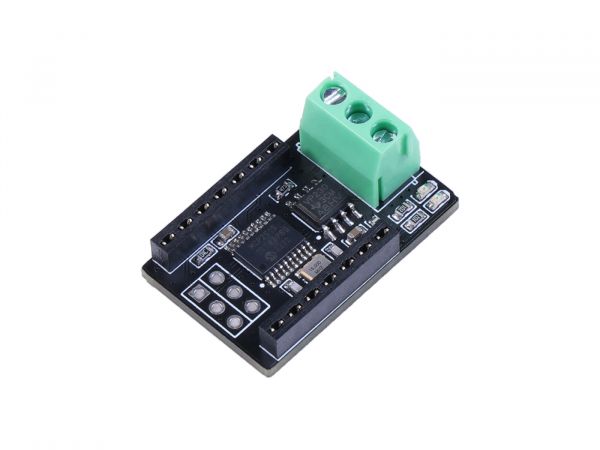

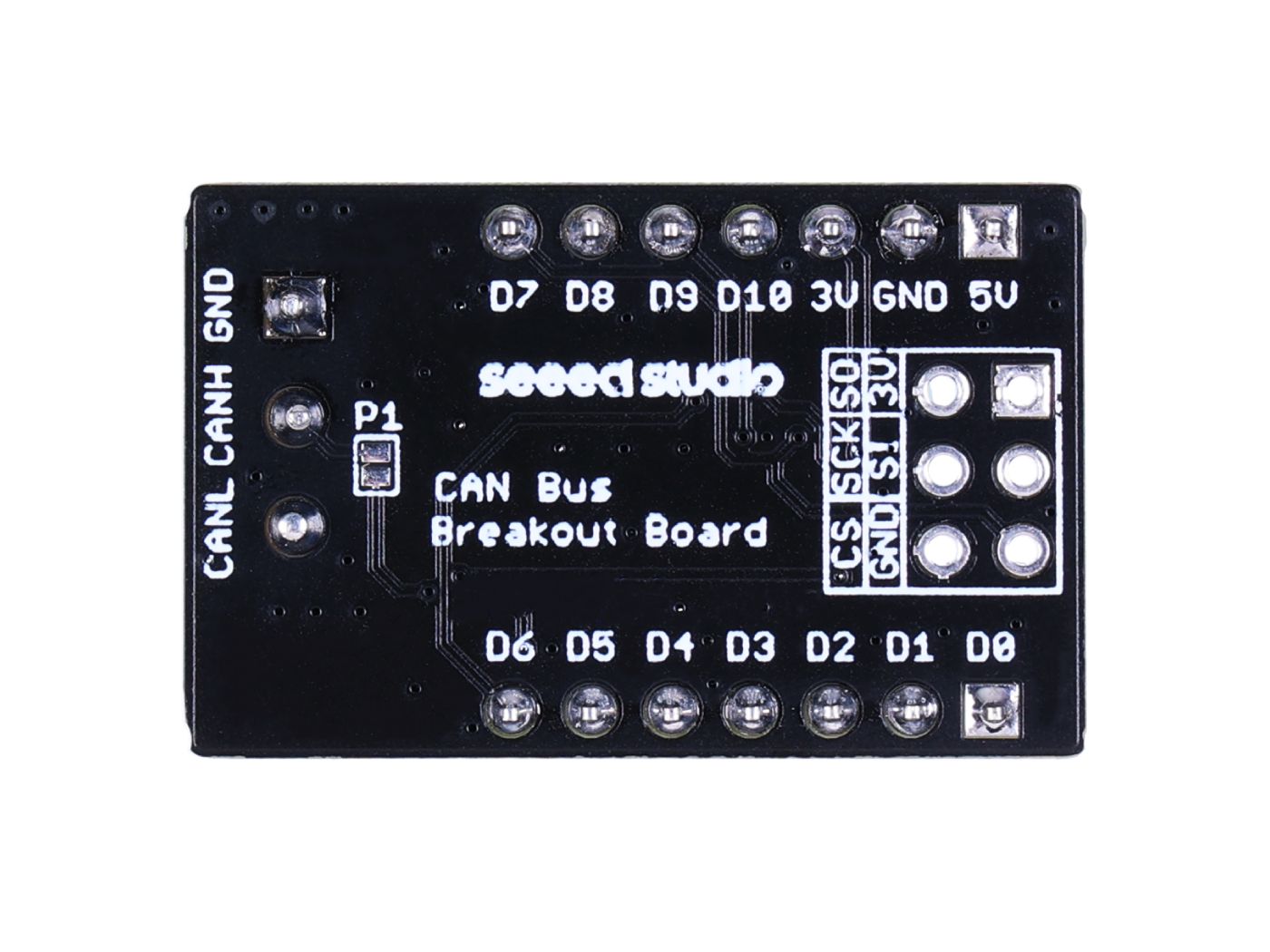

CAN Bus Breakout Board for Seeed Studio XIAO - Automotive and Industrial Connectivity
Most microcontroller dev boards speak UART, SPI, and I2C fluently but CAN Bus is a different story. The CAN Bus Breakout Board for Seeed Studio XIAO bridges that gap, giving your XIAO board access to the rugged, noise-resistant communication protocol used in automotive systems, industrial automation, and robotics.

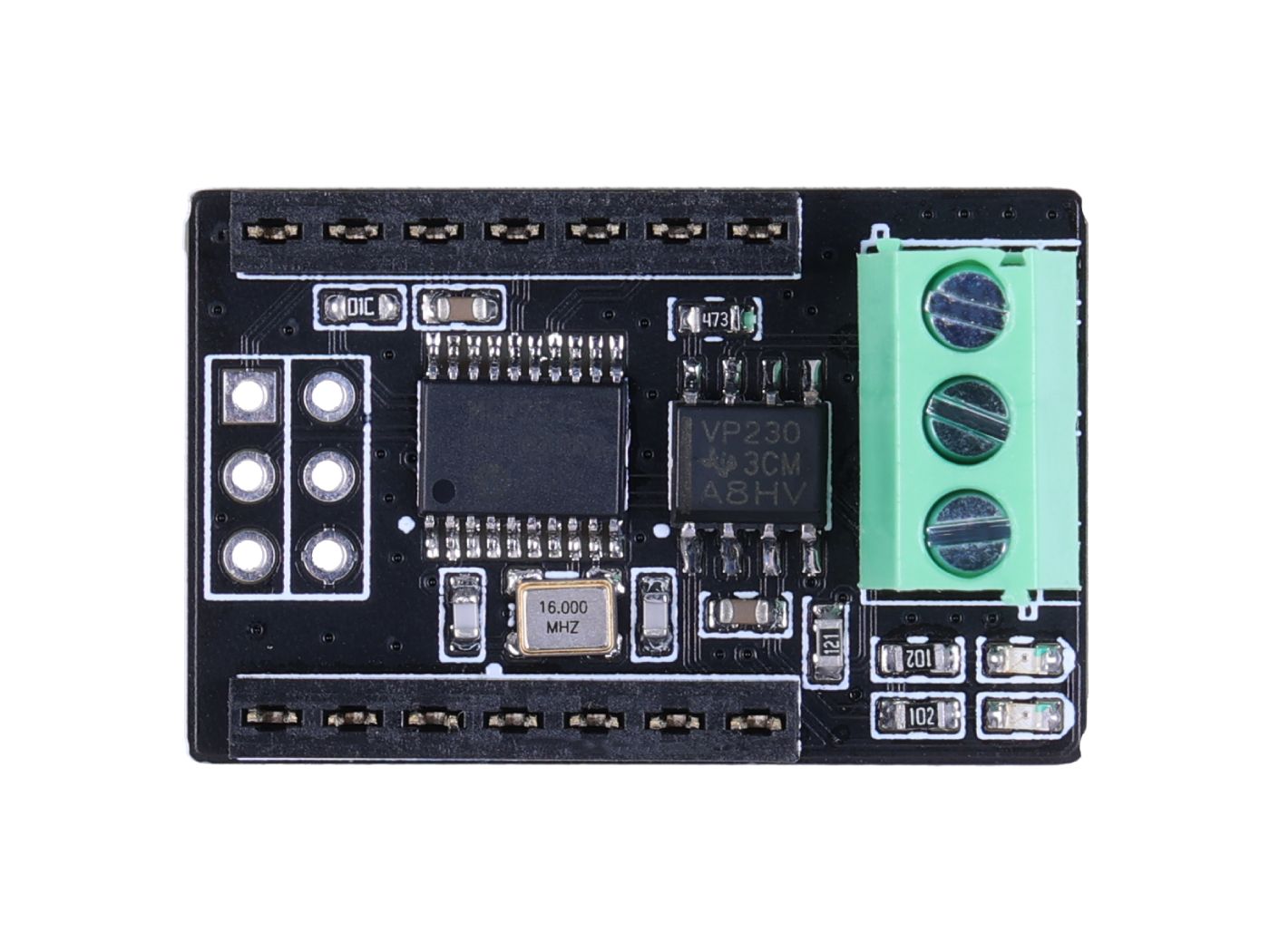

At the heart of this breakout board is the MCP2515 CAN controller combined with the SN65HVD230 transceiver chip. The MCP2515 handles the CAN protocol logic over SPI, so your XIAO just talks SPI and the board takes care of the rest. The SN65HVD230 then drives the physical CAN Bus lines with built-in protection and excellent noise immunity.
Compatible with all Seeed Studio XIAO development boards, this compact expansion board features screw terminal connectors for reliable CAN Bus wiring, making it easy to integrate into vehicle harnesses, PLC networks, or robotic control systems.
Overview
- MCP2515 CAN controller (SPI interface)
- SN65HVD230 CAN Bus transceiver
- Screw terminal connectors for secure CAN wiring
- Compatible with all XIAO development boards
- Compact expansion board design
Why You'll Like It
-
Industry-standard CAN Bus: The MCP2515 + SN65HVD230 combination is widely supported across Arduino and MicroPython libraries.
-
Noise-resistant: CAN Bus is designed for harsh electrical environments - perfect for automotive and industrial use.
-
Easy wiring: Screw terminals make permanent and temporary CAN connections clean and secure.
-
Plug straight in: Works with any XIAO board - no soldering or modifications required.
Technical Specifications
| Parameter |
Details |
| CAN Controller |
MCP2515 |
| CAN Transceiver |
SN65HVD230 |
| Host Interface |
SPI (via XIAO pins) |
| Connector |
Screw terminals |
| Compatibility |
All Seeed Studio XIAO boards |
Perfect For
- Automotive diagnostics and OBD projects
- Industrial control and PLC integration
- Robotics and multi-node communication
- IoT gateways in noisy electrical environments
