6x10 RGB WS2812 Matrix for Seeed Studio XIAO - 60 LEDs in a Thumb-Sized Board

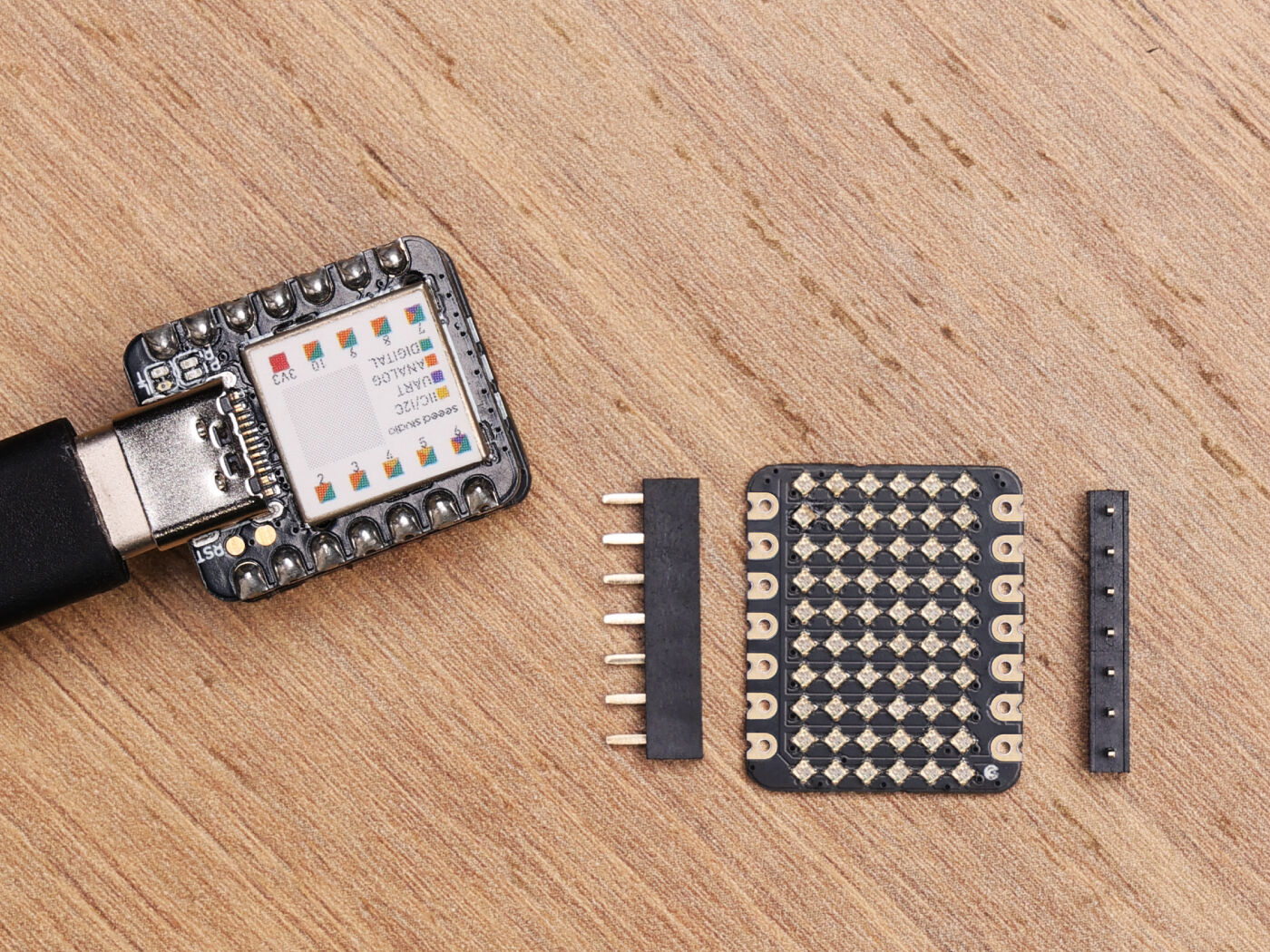

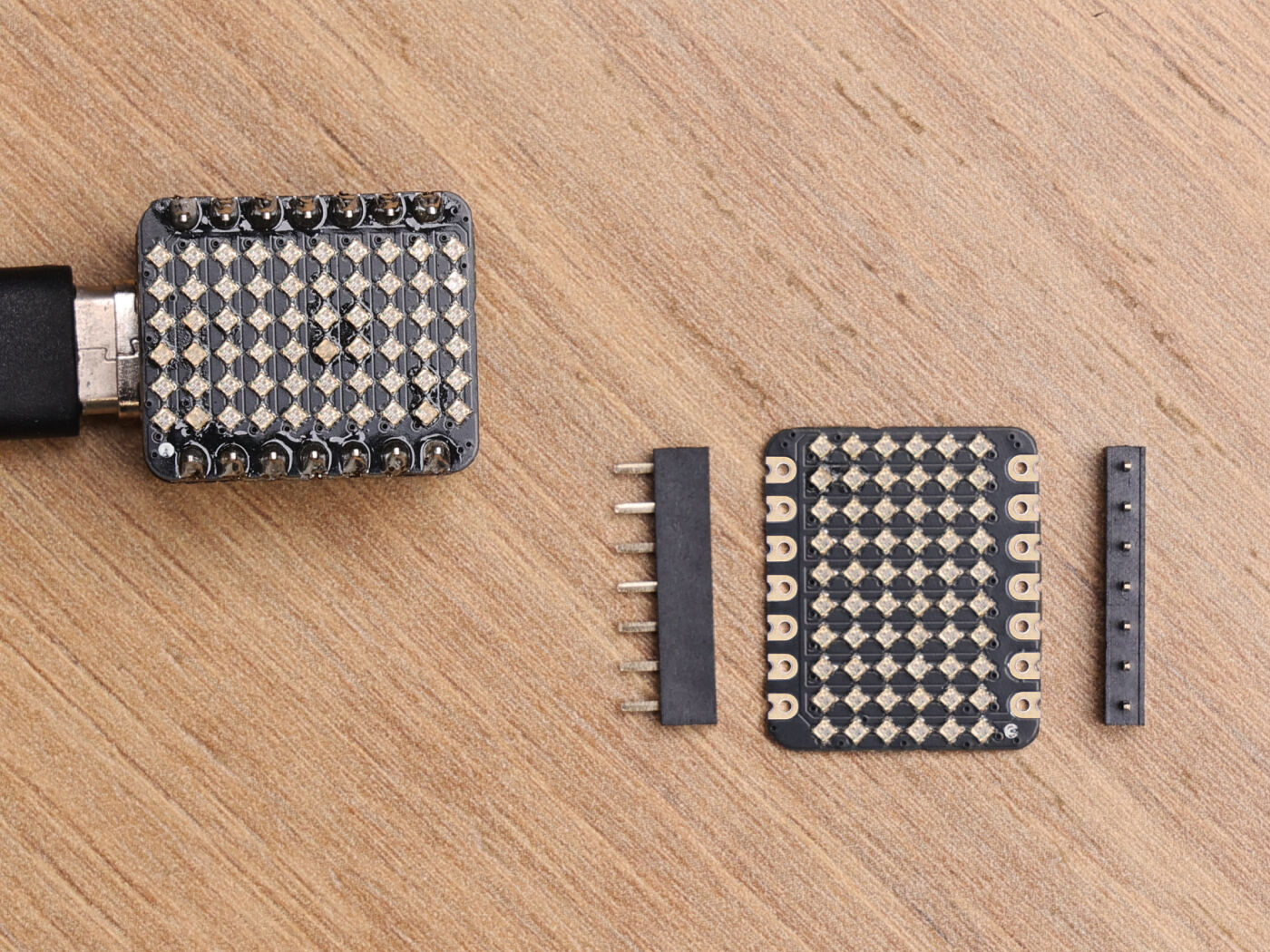

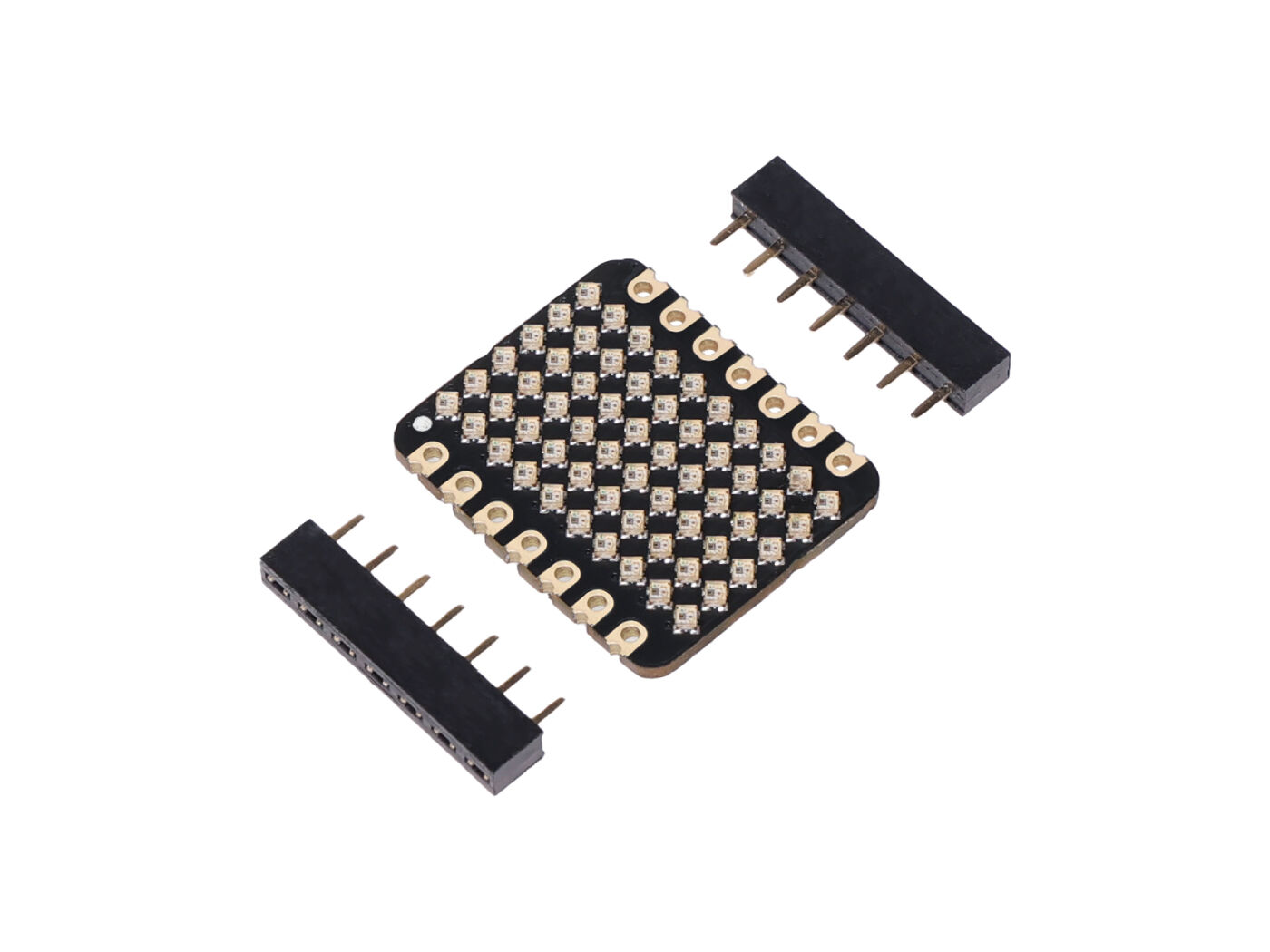

Want to add a full RGB LED display to your XIAO project without taking up half your desk? The 6x10 RGB WS2812 Matrix packs 60 individually addressable WS2812B LEDs into the same compact footprint as your XIAO board and just 21 x 17.5 mm.
Each of the 60 RGB pixels can be independently controlled via a single data pin, making it incredibly easy to create animations, scrolling text, colour effects, and light patterns, all from a single GPIO on your XIAO. The control circuit and RGB driver are fully integrated onto the board, so there's no external hardware required.
A standout feature is the splice extension support, you can chain multiple matrices together to build larger displays, grids, or wearable lighting panels without complex wiring. It's compatible with all Seeed Studio XIAO boards and Adafruit QT Py, and works seamlessly with popular LED libraries like FastLED and Adafruit NeoPixel.
Overview

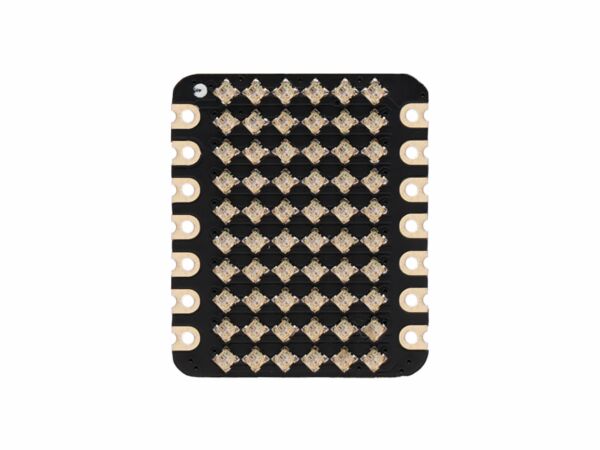

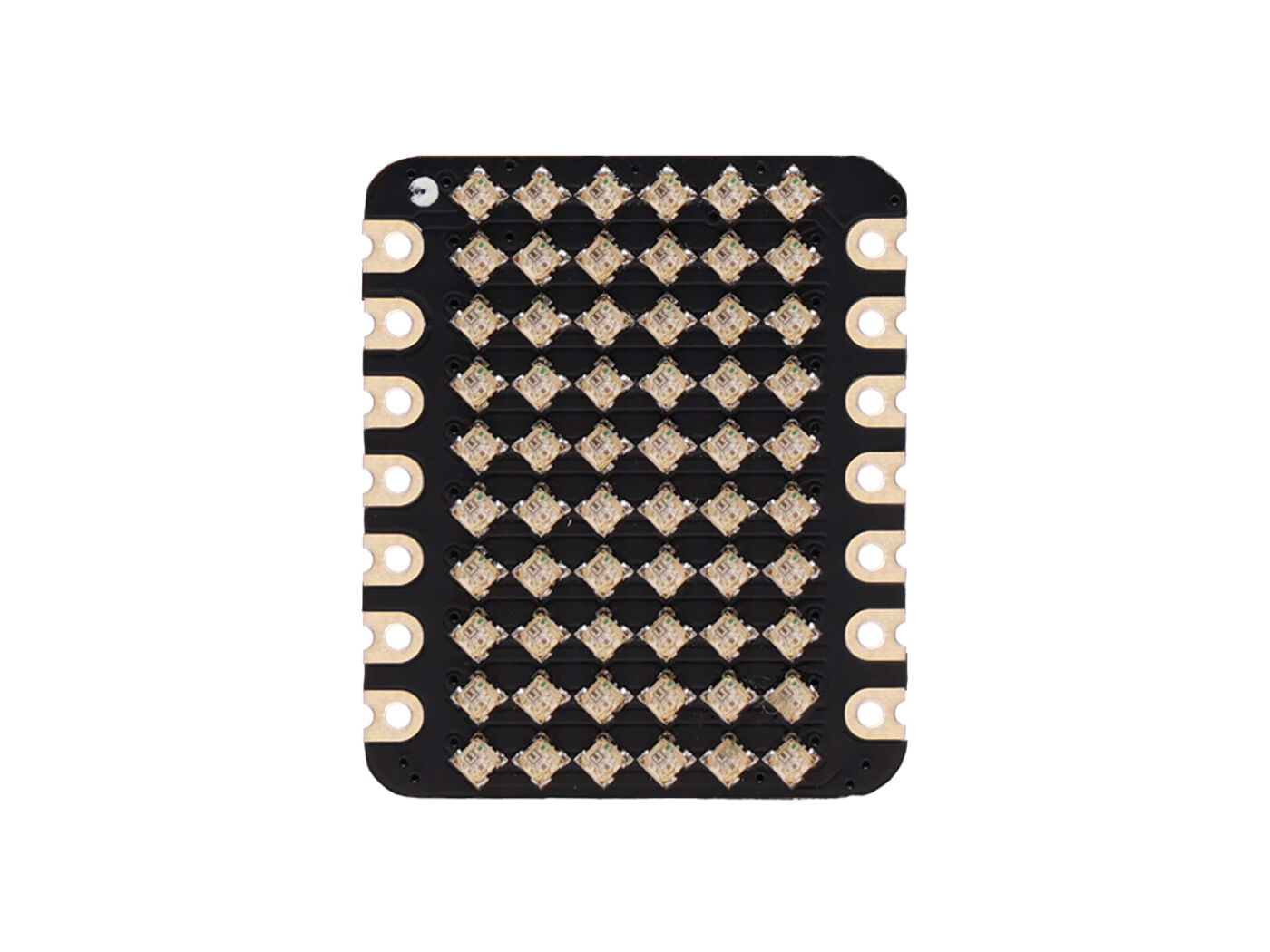

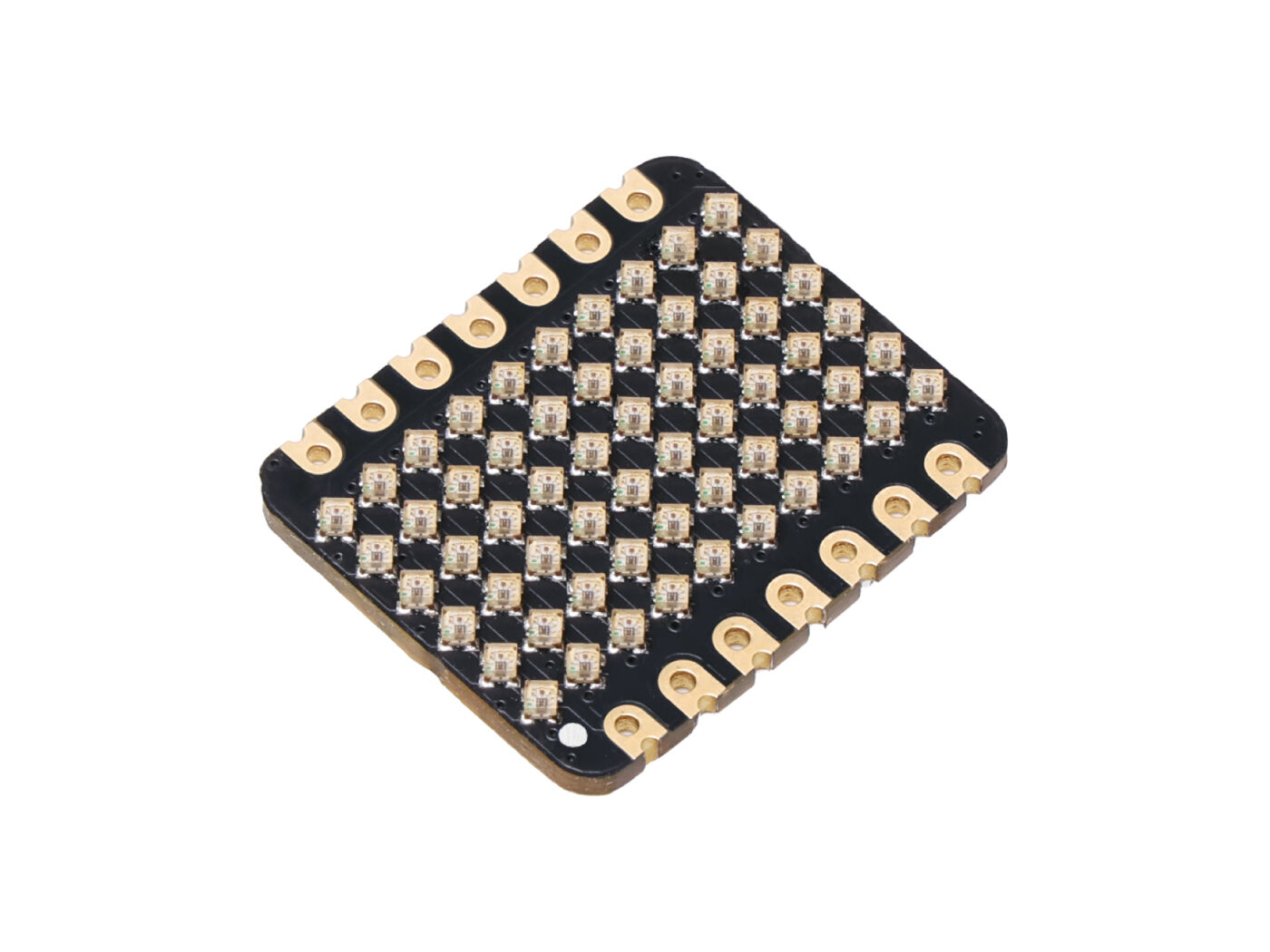

- 60x WS2812B individually addressable RGB LEDs

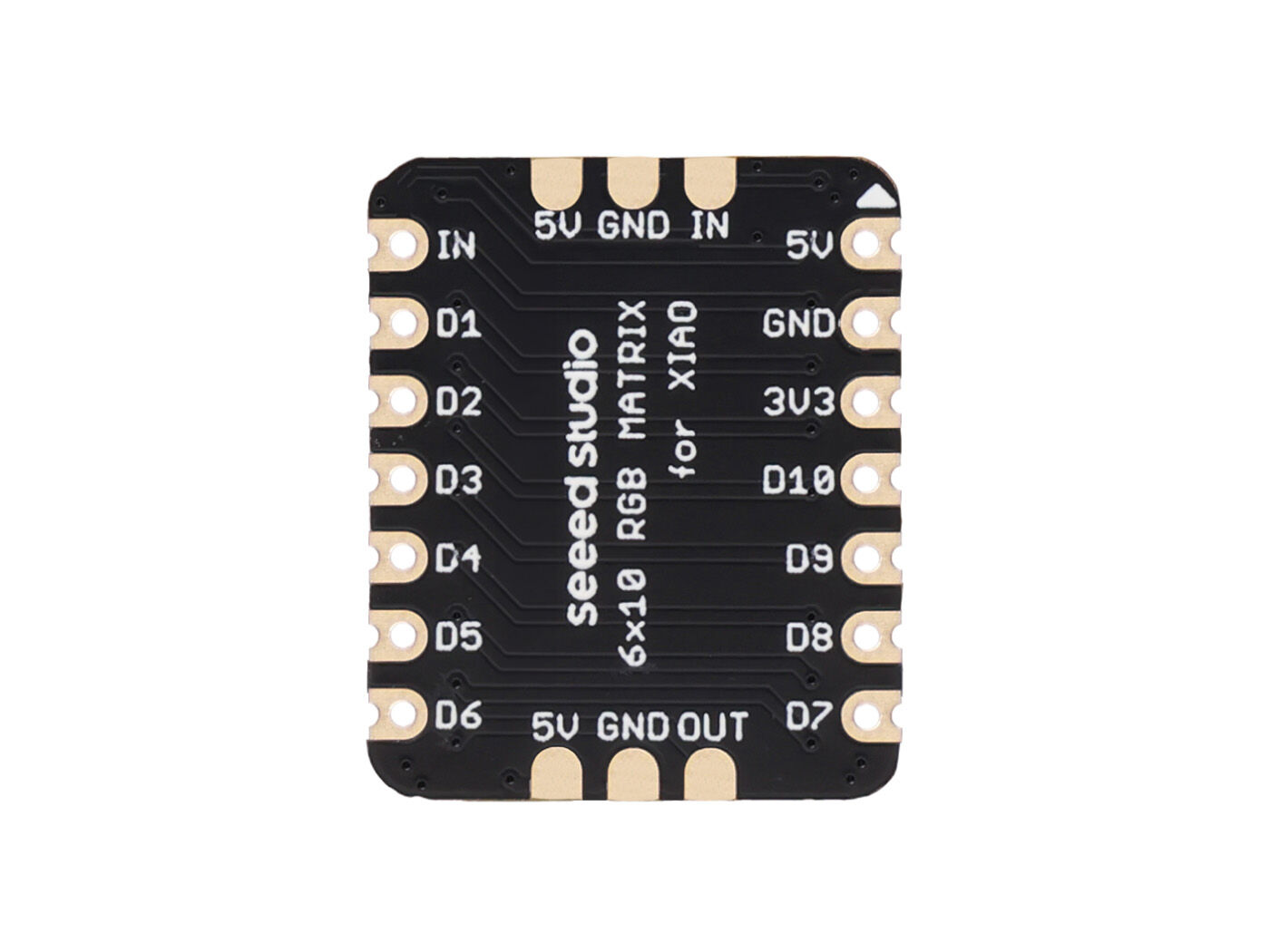

- Single data pin control (DIN/DOUT for chaining)
- Supports multiple splice extensions for larger displays
- Compatible with all XIAO boards and QT Py

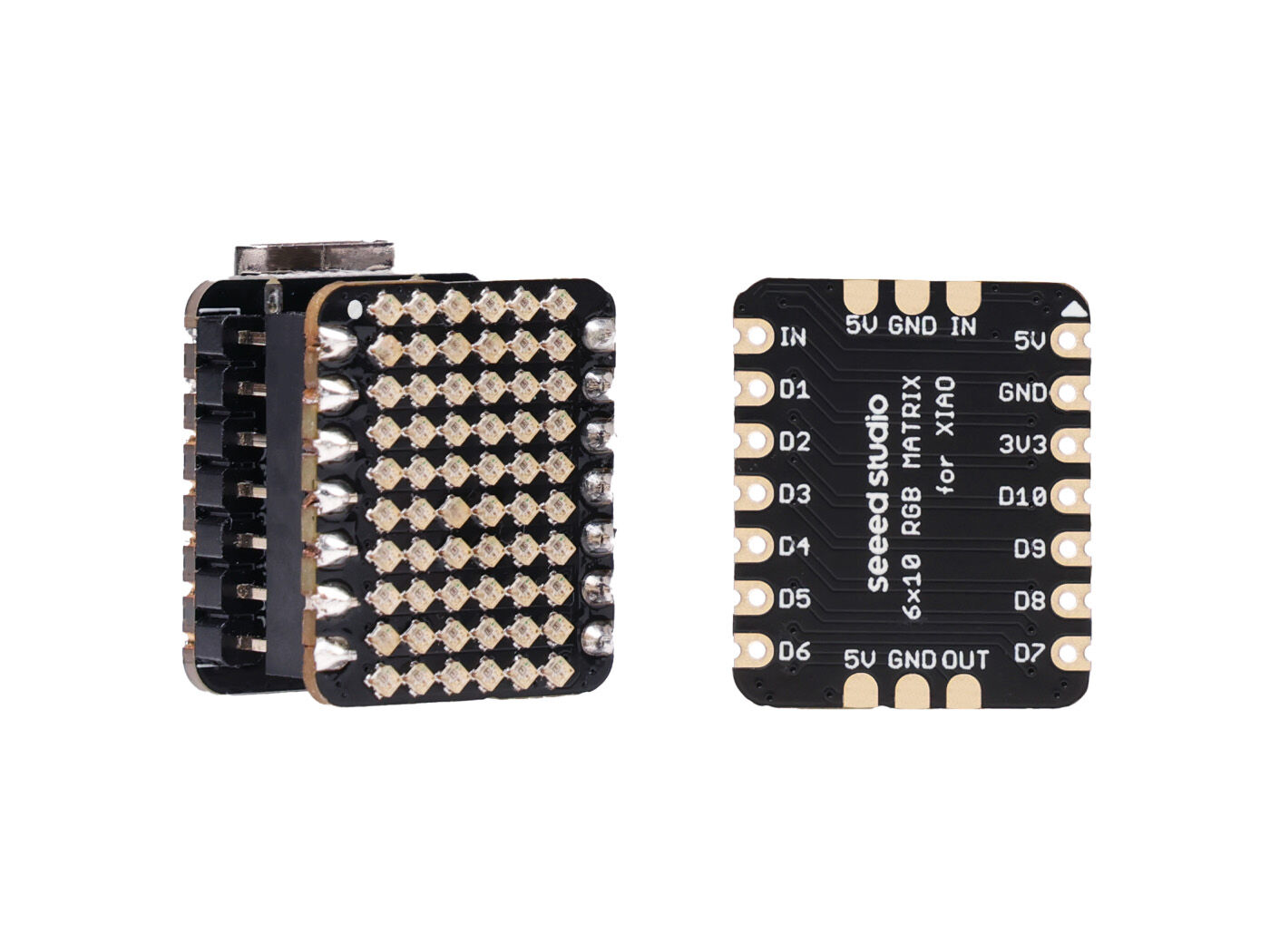

- 21 x 17.5 mm - same size as a XIAO board
- Integrated control circuit - no external components needed
Why You'll Like It
-
60 pixels, tiny board: Full addressable LED matrix in a footprint smaller than a 50 cent coin.
-
Easy to chain: Tile multiple boards together for bigger, more impressive displays.
-
Works with your favourite libraries: FastLED, Adafruit NeoPixel, and Arduino all supported.
-
One wire control: Just one GPIO pin drives the entire matrix - keeping your project wiring clean.
Technical Specifications
| Parameter |
Details |
| LED Type |
WS2812B (individually addressable RGB) |
| LED Count |
60 (6 rows x 10 columns) |
| Control Protocol |
Digital single-wire (DIN/DOUT) |
| Power |
VCC, GND |
| Compatibility |
All XIAO boards, QT Py |
| Dimensions |
21 x 17.5 mm |
Perfect For
- Wearable LED displays and costumes
- Animated POV and scrolling text displays
- Scene and ambient lighting effects
- Model kit and diorama lighting
- Interactive LED art and installations
