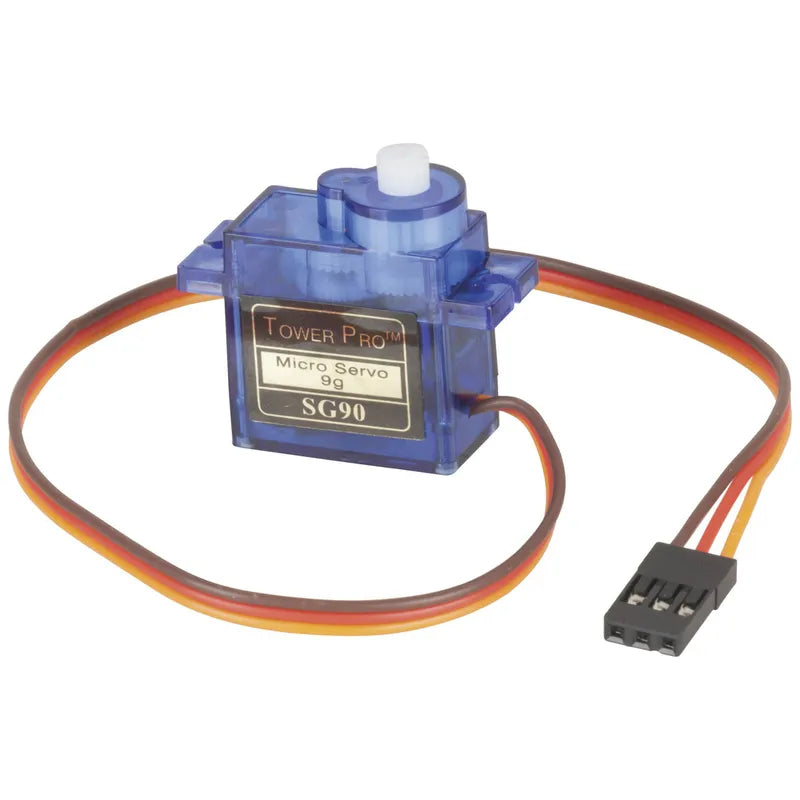

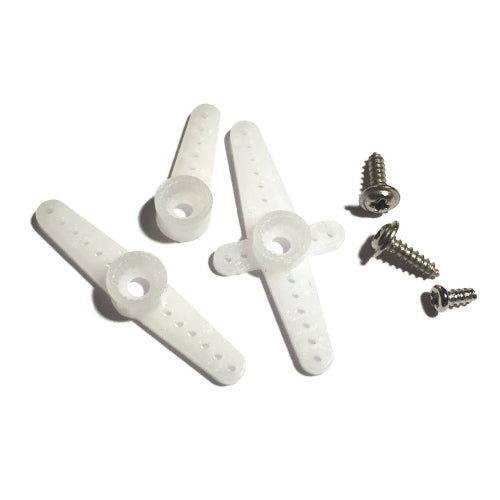

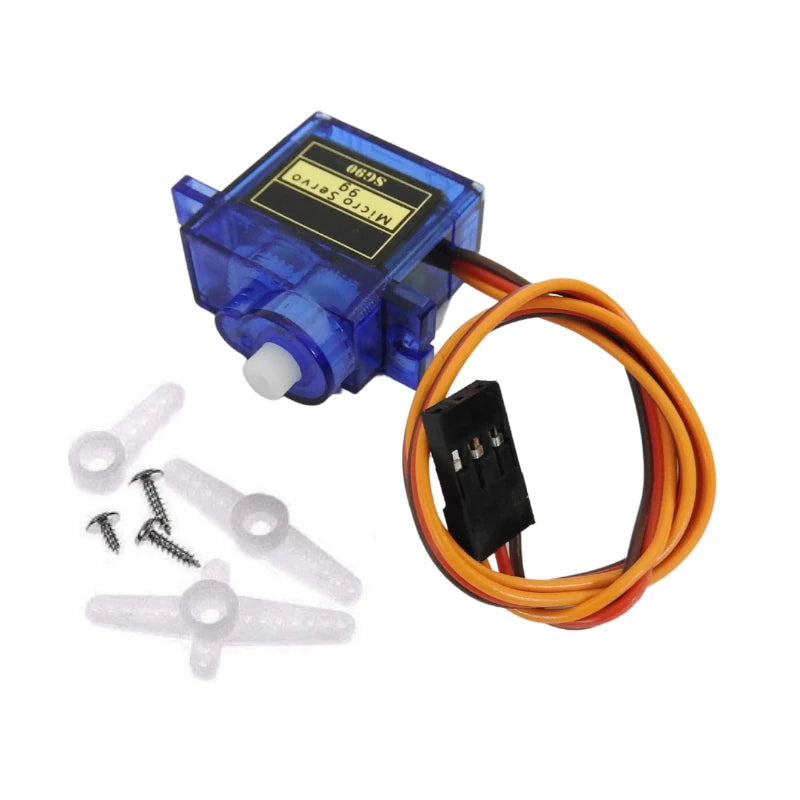

The SG90 9G Micro Servo Motor is a top choice for lightweight applications. Its small size packs a powerful punch, making it perfect for robotics, RC aircrafts, and more. With a wide range of movement at 90° and included servo horns and mounting screws, it's versatile and easy to use. Small enough to connect directly to an Arduino Board for experimenting.
Specifications:
- Weight: 9g
- Dimension: 23 × 12.2 x 29mm
- Stall torque: 1.8kg/cm (4.8v)
- Gear: Nylon gear set
- Operating speed: 0.1sec/60degree (4.8v)
- Dead band width: 10μs
- Operating voltage: 4.8v
- Temperature range: 0 – 55 Degrees Celsius
- Power Supply: Through External Adapter
- Servo Plug: JR (Fits JR and Futaba)
- Servo wire length: 25 cm
- Range of Movement: 90°
