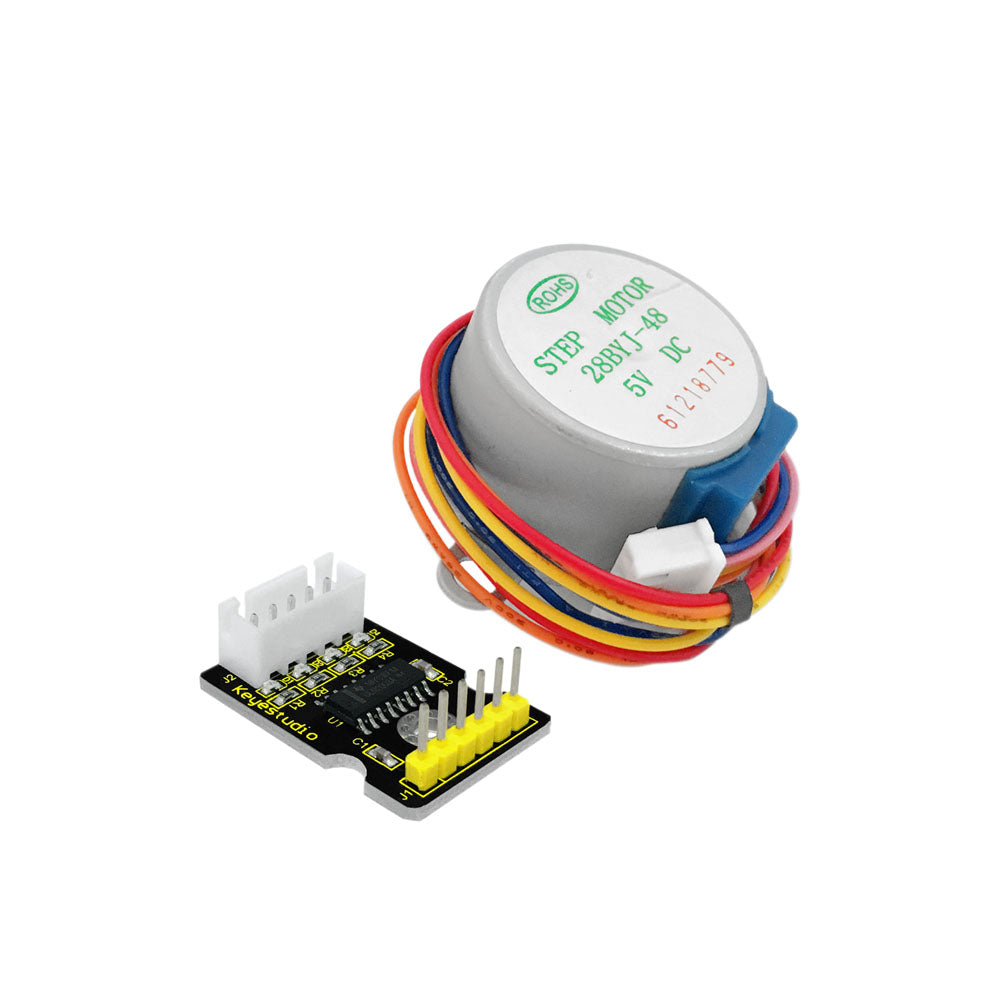

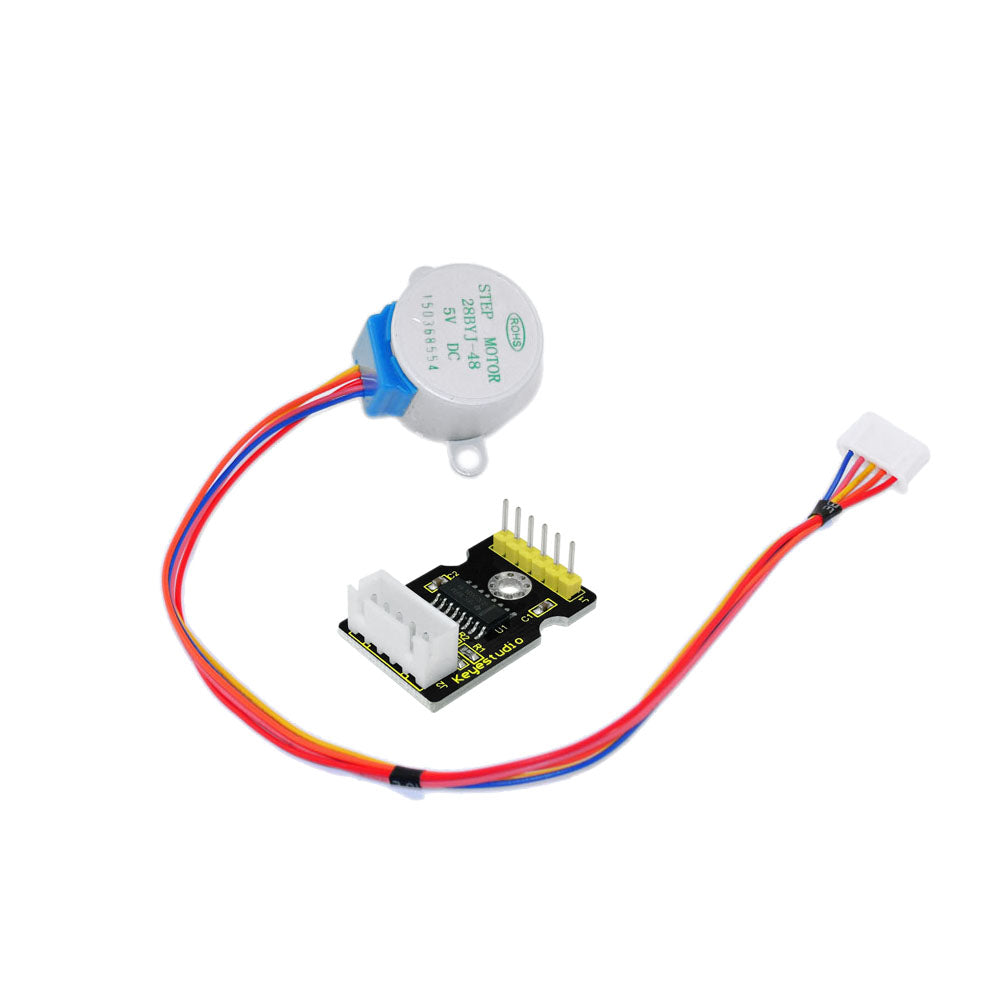

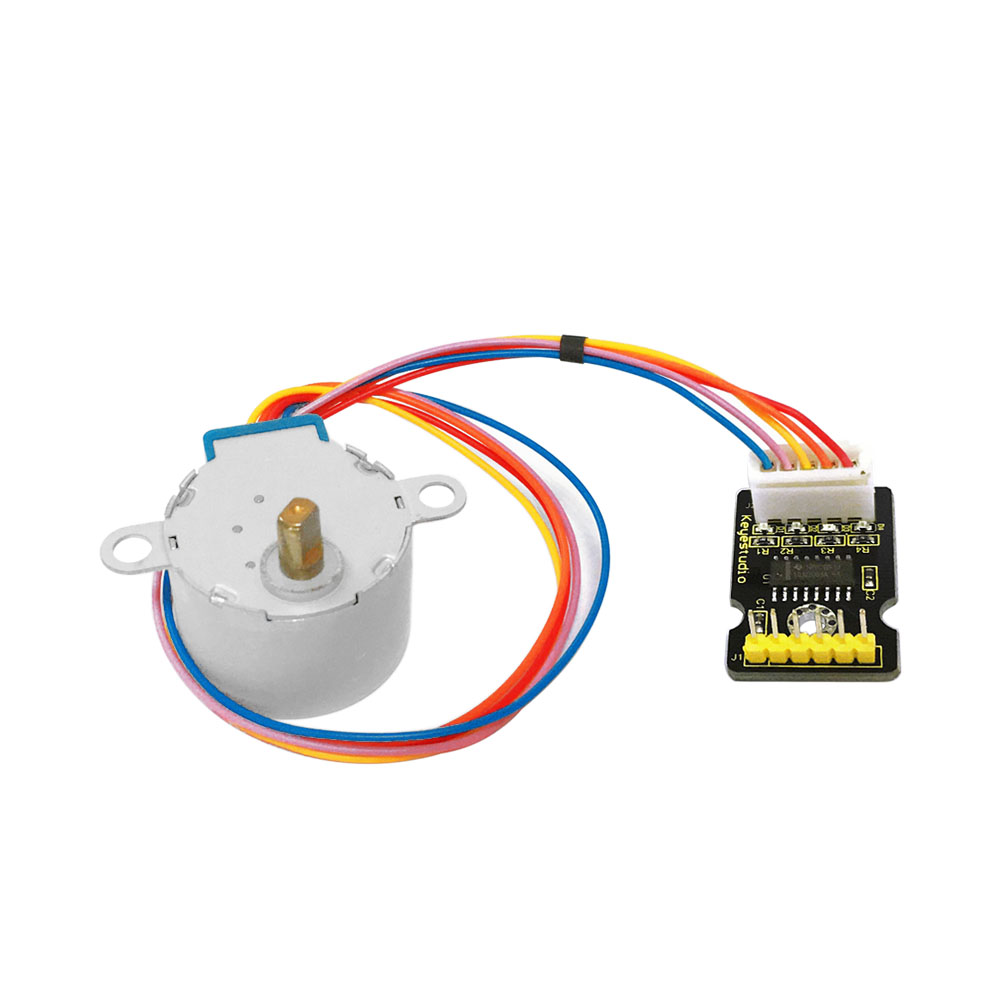

The Keyestudio ULN2003 Stepper Motor Driver provides accurate control of stepper motors through an open-loop system, removing the necessity for expensive feedback components such as optical encoders. It determines motor position precisely by monitoring input step pulses, streamlining design and minimizing system complexity. Included with the driver is a 5V stepper motor, allowing you to begin integrating it into your projects immediately without needing extra parts.
Stepper motor 28BYJ-48 Parameters:
- Model: 28BYJ-48
- Rated voltage: 5VDC
- Number of Phase: 4
- Speed Variation Ratio: 1/64
- Stride Angle: 5.625° /64
- Frequency: 100Hz
- DC resistance: 50Ω±7%(25℃)
- Idle In-traction Frequency: > 600Hz
- Idle Out-traction Frequency: > 1000Hz
- In-traction Torque >34.3mN.m(120Hz)
- Self-positioning Torque >34.3mN.m
- Friction torque: 600-1200 gf.cm
- Pull in torque: 300 gf.cm
- Insulated resistance >10MΩ(500V)
- Insulated electricity power: 600VAC/1mA/1s
- Insulation grade: A
- Rise in Temperature <40K(120Hz)
- Noise <35dB(120Hz,No load,10cm)
