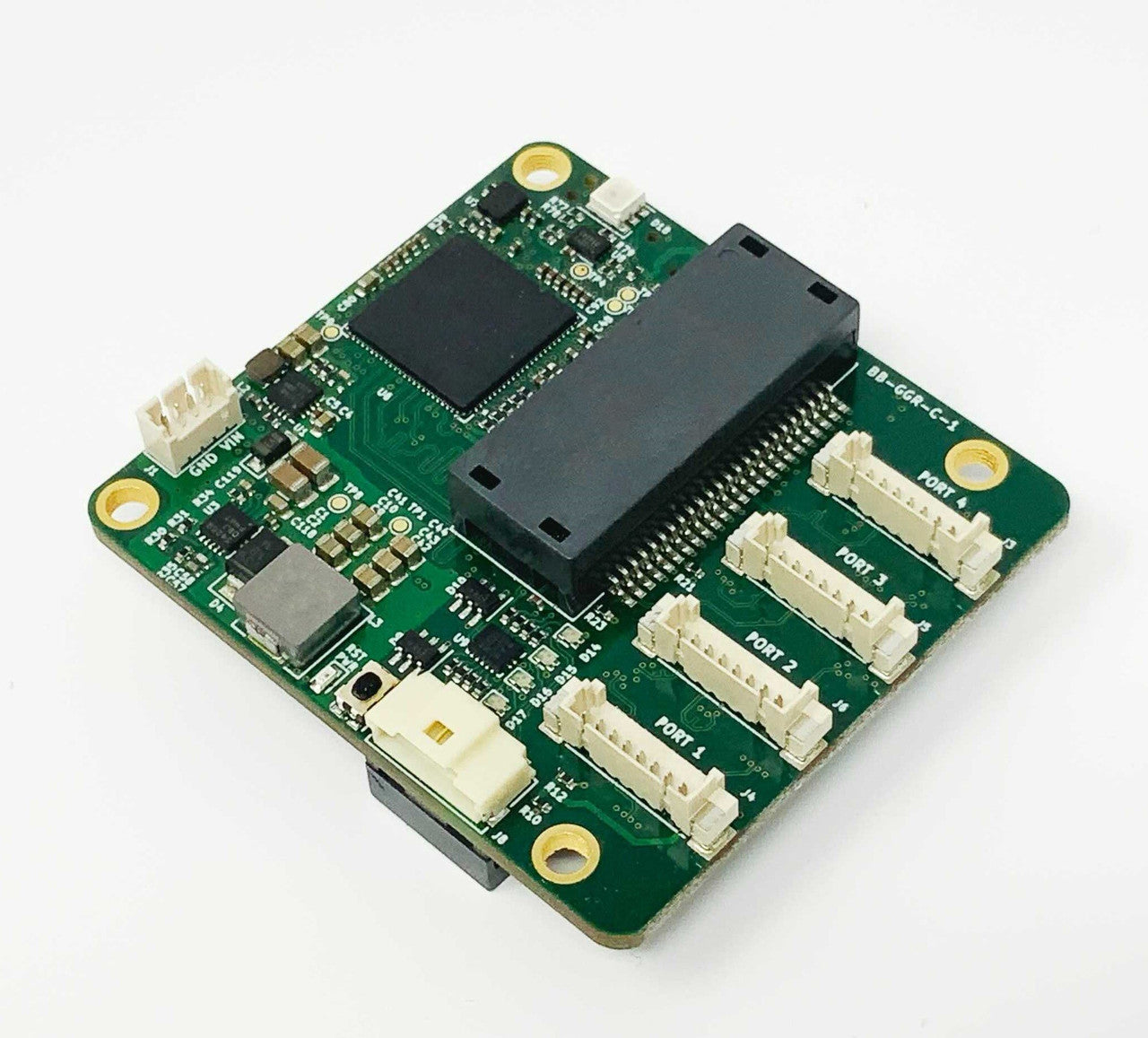

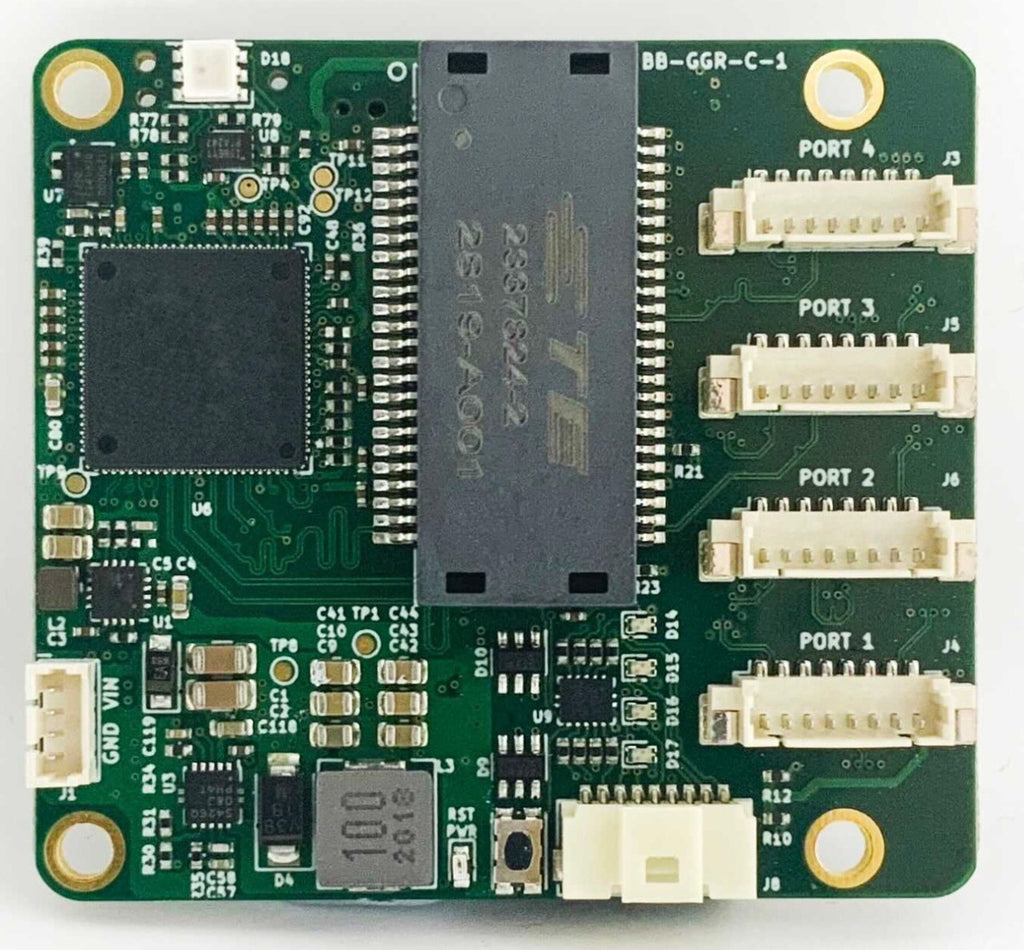

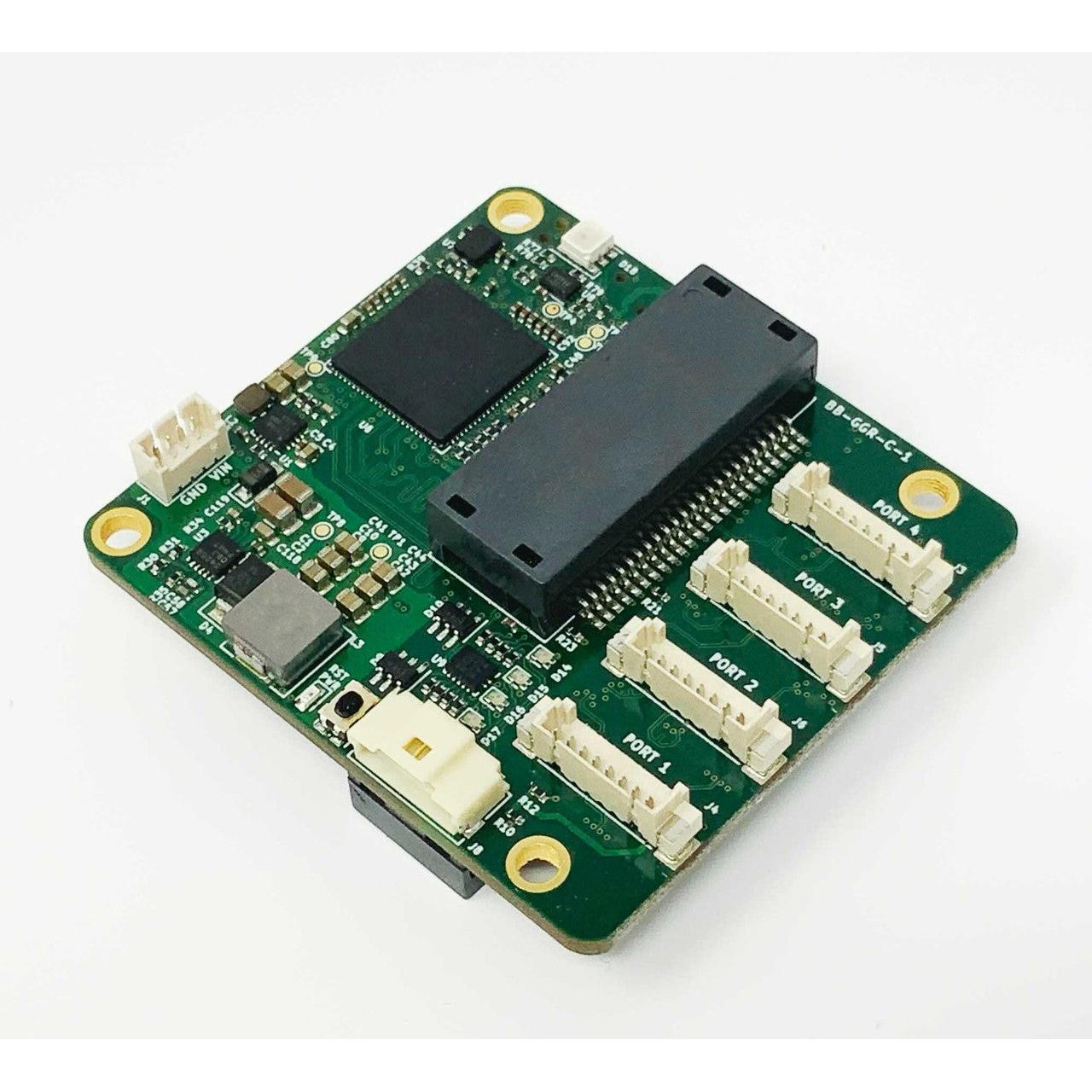

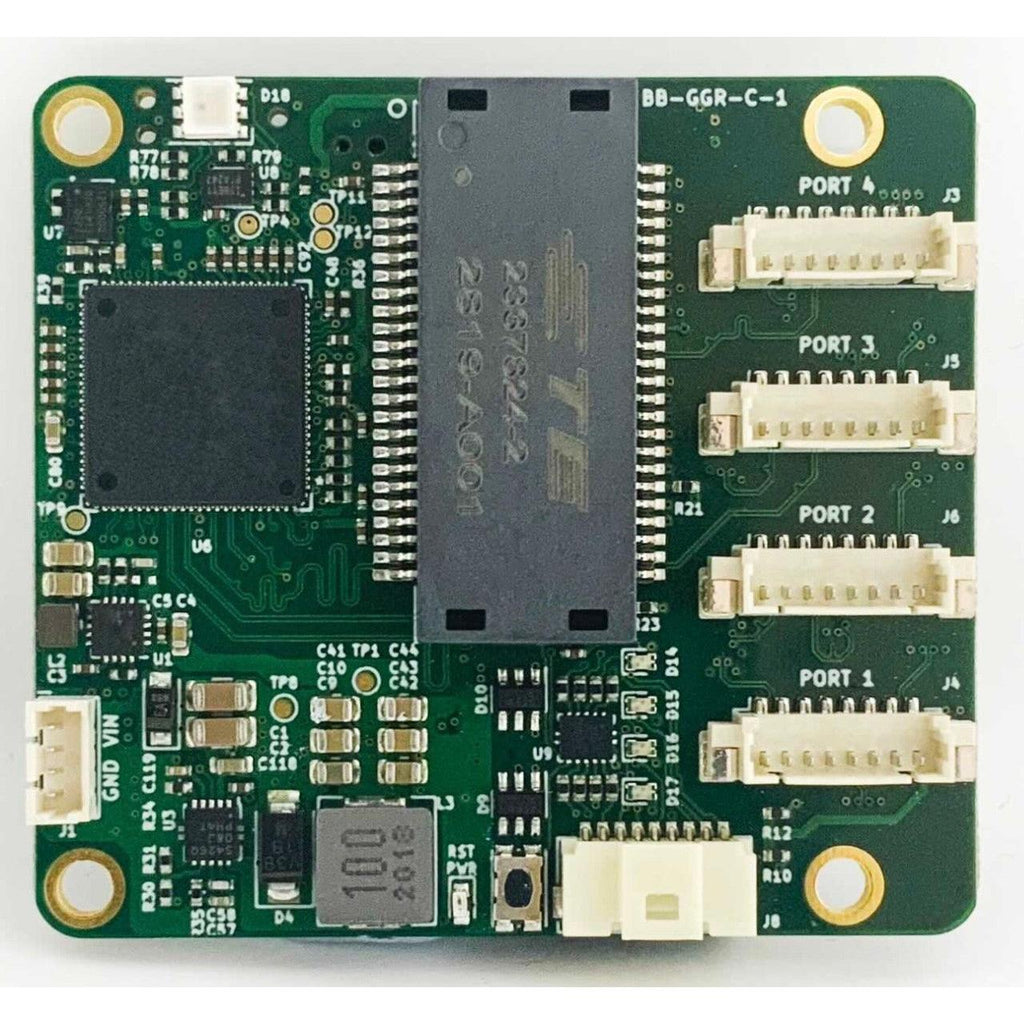

The Smallest Industrial Gigabit Ethernet Switch
GigaBlox Rugged is a very small layer 2 unmanaged ethernet switch that fits four 10/100/1000Mbps copper ethernet ports in an ultra-compact 50mm x 55mm form factor. GigaBlox Rugged is designed to be a more rugged and more capable upgrade to our GigaBlox product and is designed for space, weight and price-sensitive (SWaP) industrial, mobile and military applications.
GigaBlox Rugged has an input voltage range of 5 to 60V with transient, overvoltage, and reverse polarity protection on board, meaning it can be dropped directly into a system powered by unregulated bus voltage. This wide input voltage range is particularly advantageous in motor control systems where additional voltage headroom is required due to motor voltage transients.
The -50°C to +110°C ambient operation range is achieved by using automotive/military-grade components whose operation is rated for -50°C to +125°C.
GigaBlox Rugged does not require any configuration and works “out-the-box” as an unmanaged layer 2 switch.
GigaBlox Rugged supports jumbo frames up to 9,000 bytes, meaning it works well with GigE Vision cameras.
(Please note, the previous SKU of this board was BB-GGR-C-1)

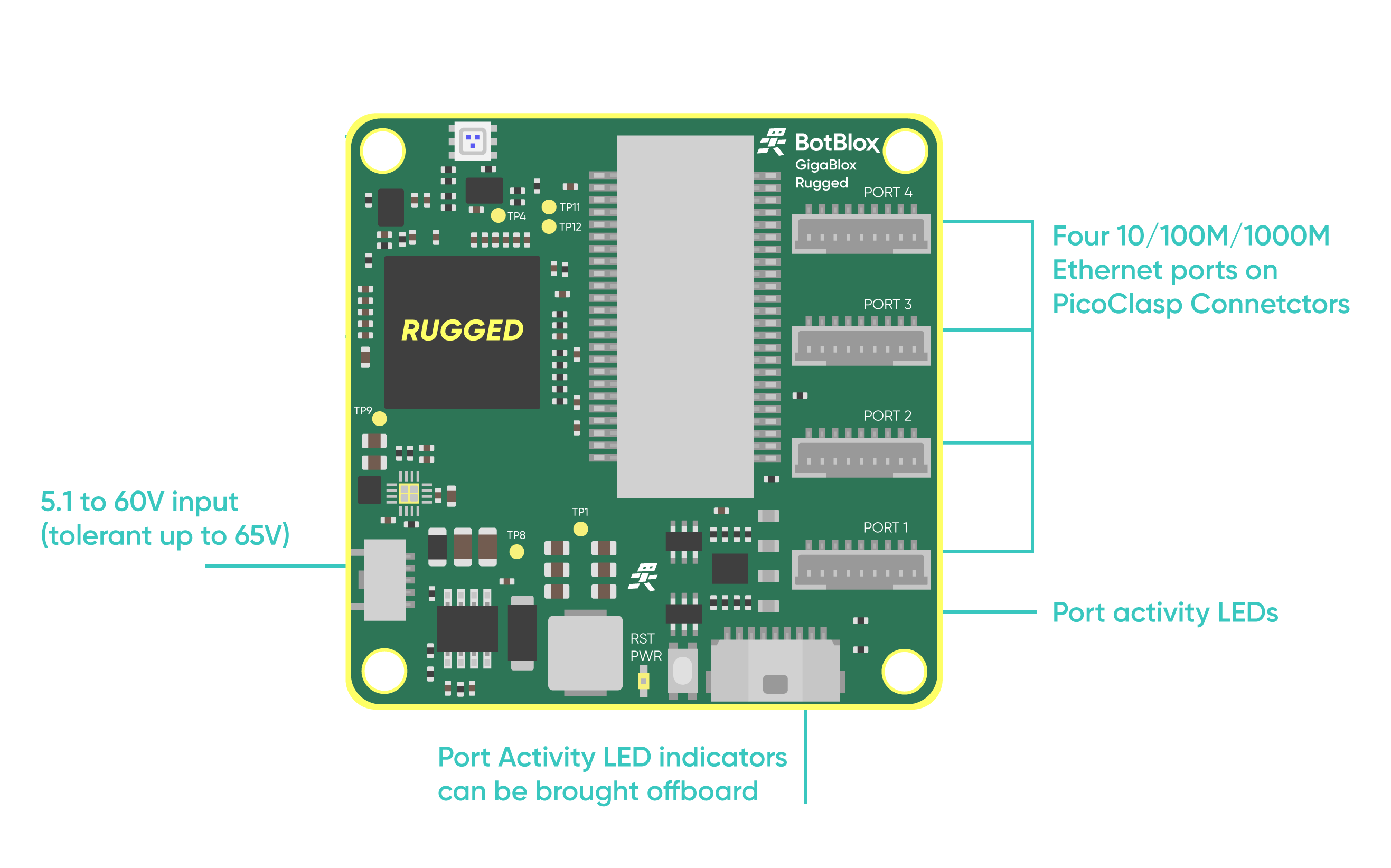

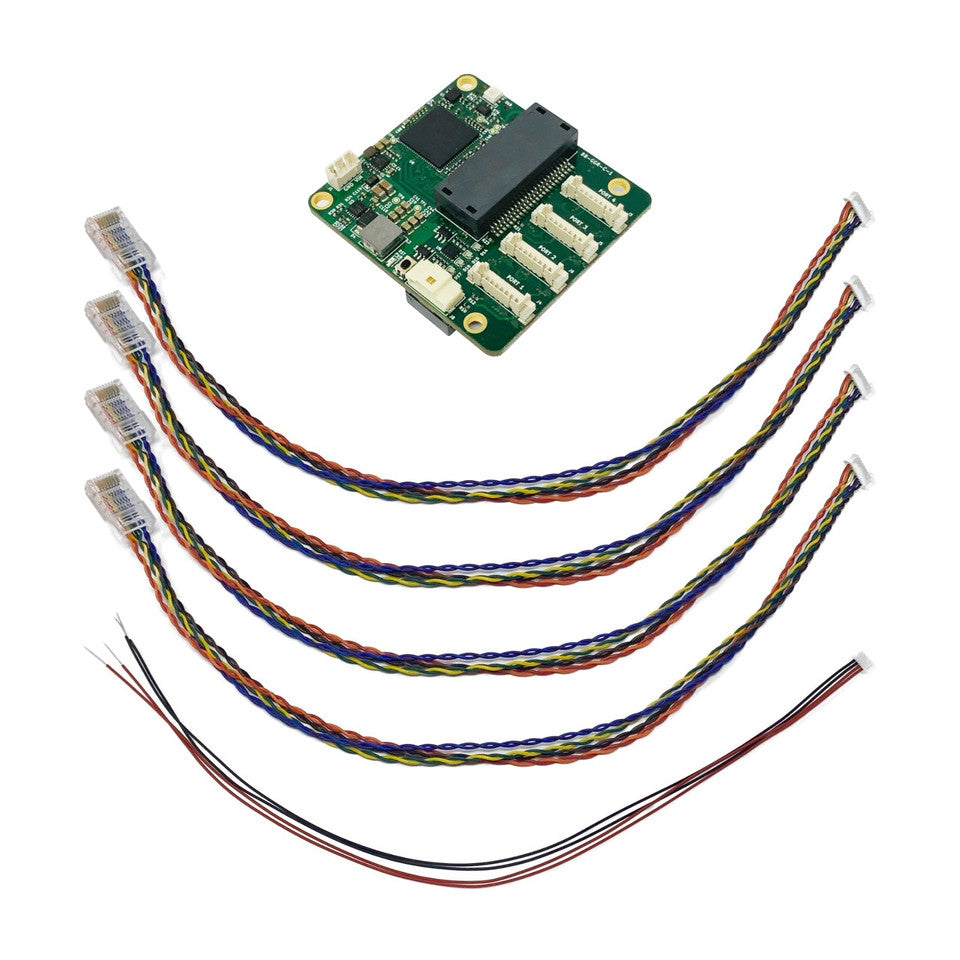

INCLUDED CABLES
We include everything you need to make this board work out of the box. Each board ships with:
4 x Molex PicoBlade to RJ-45, 8 way, 0.3 meter (Data cables)
SKU: BB-PBRJ1-8-0.3
1 x Molex PicoBlade to Tinned Leads, 4 way, 0.3 meter (Power cables)
SKU: BB-PBTL1-4-0.3
Specifications
| Input Voltage Range | 5-60V (reverse protected) |
| Power Consumption | 1W (Idle), 4W (Max) |
| Ports | 4 x 10/100/1000Mb ports |
| Operating Temperature | -50 to +110°C |
| Storage Temperature | -55 to +125°C |
| Dimensions | 50mm x 55mm x 16.2mm |
| Supported protocols | 10/100/1000BASE-T |
| Number of PHY Ports | 4 x 10/100/1000BASE-T non-blocking ports |
| Number of non-PHY ports | 1 x 1G SGMII, 1 x 2.5G SGMII |
| Frame buffer | Jumbo frame support up to 9600 bytes |
| Packet buffer | 1.75Mbits |
| Boot image | VSC6825 unmanaged software (openly available), F5 unmanaged, loaded onto onboard IS25LQ040B flash |
| Programming method | SPI Flash programming via Tag-Connect 10 pin header or STM32L011D4P7 programming |
| Indicator LEDs | 4 x Onboard LEDs and broken out onto header, 1 x RGB (controlled by STM32) |
| HS Tariff Code | 8517.62.00.20 |
| US ECCN | 5A991 |
| Product Status and Lifetime | Active, with a 5-Year Minimum Lifetime |
