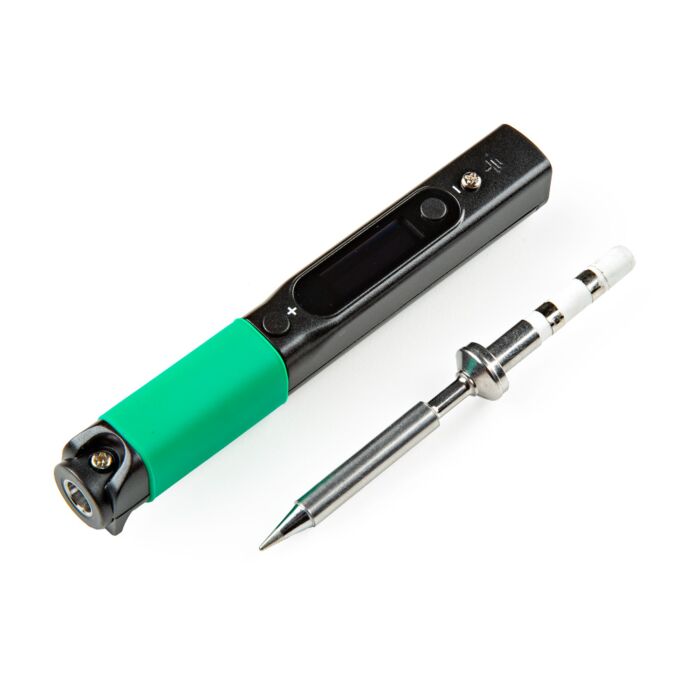

Looking for a hybrid of the TS80 and TS100? The Pinecil is a smart mini portable soldering iron with a 32-bit RISC-V SoC featuring a sleek design, auto standby and it heats up to an operating temperature in just 12 seconds! What's cool about the iron is that it has dual power inputs! Dual power input design: 1) USB-C supports both PD and QC 3.0 and; 2) DC5525 barrel DC jack.
- Speedy Rapid Warmup: Reaches operating temperature in 12 seconds. Support for on-demand rapid boost feature.
- Adjustable soldering tip temperature which can be set between 100° C and 400° C using the adjustment buttons and an easy-to-read OLED display.
- Portable: it features a sleek and slim design, comprised of an SAE 304 stainless steel core housed inside a polycarbonate shell.
- Auto standby mode engages when it is not in use ensuring the user safety.
- This is the Version 2 of the Pinecil.
PACKAGE
|
- Dimensions: 15cm x 9cm x 2.2cm
- Weight: 88 grams
|
BODY
|
- Dimensions: 155mm with solder tip or 103mm without solder tip x 12.8mm x 16.2mm
- Weight: 28g with solder tip / 18g without solder tip
- Build: Plastic with metal clip (Handle)
- Color: Black
|
PLATFORM
|
- OS: Ralim’s IronOS build
- Chipset: Bouffalo BL-706
- CPU: 32-bit RV32IMAFC RISC-V “SiFive E24 Core” @ 144 MHz
|
DISPLAY
|
- Type: OLED White Colour Monochrome Display
- Size: 0.69 inches
- Resolution: 96x16pixels
|
MEMORY
|
- Internal Flash Memory: 192KB
- System Memory: 132KB SRAM
- Expansion: None
|
POWER PORTS
|
- UUSB type C: PD 12V-20V 3A and QC 3.0 12V-20V 3A (magnetic tip USB-C cables are not recommended, and not USB compliant)
- Barrel Jack: DC5525, 12V-24V, minimum 3A
|
TIP
|
- Type B2
- Length: 106mm
- Weight: 10g
- All TS100 tips are compatible with the Pinecil
|
FEATURES
|
- Capable received power from either USB-C port or barrel jack.
- GPIO break-out thru USB-C port
|
CERTIFICATION
|
|
PACKAGE CONTENTS
|
- Pinecil Soldering Iron
- Type B2 Soldering Tip
|
